Lab Mini Small Vacuum Freeze Dryer Drying Machine For Home
|
OLT-FD-12N
|
Ordinary
|
Top-Press
|
Ordinary Multi-Manifolds
|
Top-Press Multi-Manifolds
|
|
No-load Temperature
|
<-56℃
|
|
Freeze Area
|
0.12m2
|
0.08m2
|
0.12m2
|
0.08m2
|
|
Plate Load Capacity
|
1.5L
|
1L
|
1.5L
|
1L
|
|
Ability to Capture Water
|
4Kg
|
|
Vacuum Degree
|
<10Pa
|
|
Machine Dimension
|
W700*D560*H(960+450)mm
|
|
Sample Tray Size
|
4*Φ200mm
|
Φ3*180mm
|
4*Φ200mm
|
Φ3*180mm
|
|
Power
|
950W
|
|
Power Supply
|
110V/60Hz or 220V/50Hz
|
|
Interlayer spacing
|
70mm
|
|
Cold trap size
|
Φ215*216mm
|
|
The number of Schering bottles
|
Φ22:260
|
Φ22:165
|
Φ22:260
|
Φ22:165
|
|
Φ16:480
|
Φ16:285
|
Φ16:480
|
Φ16:285
|
|
Φ12:920
|
Φ12:526
|
Φ12:920
|
Φ12:526
|

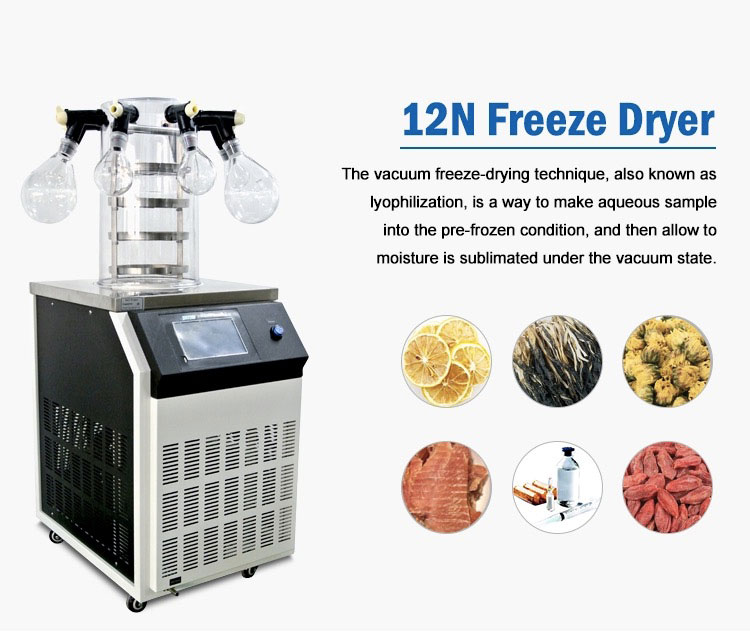

Vacuum Lyophilization Machine is a drying process suitable for the manufacture of certain heat-sensitive substances that are not heat-resistant or unstable in aqueous solutions, but are stable in dry conditions and have a long shelf life, such as antibiotics, vaccines, blood products and other biological tissues.
Application of Freeze Drying Machine:
-
Pharmaceutical
-
Blood Serum
-
Food Drying
-
Herbs Drying
-
Accord with international standards of Green environmental friendly.
-

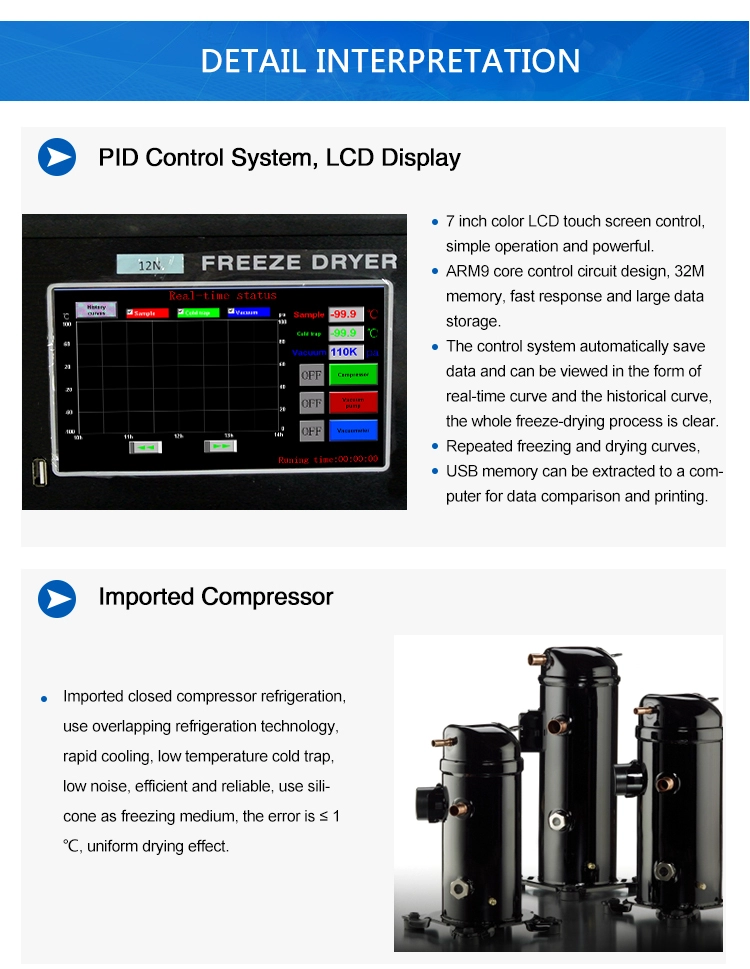

7" True-color Touch Screen, Chinese English Bilingual Interface, display drying curve and history curve.
-
U disk can storage lyophilized data.
-
Upload software can print curve.
-
Embedded circuit design, 128 M FLASH, can save dozen times Lyophilized data.
-
Large opening trap, no coil inside, with samples pre-freeze function.
-
Imported refrigeration compressor, low noise.
-
Cold trap and control panel were made by stainless steel, corrosion-resistant, easy to clean.
-
Transparent Bell type drying room, secure and ocular.
-
Stainless steel sample holder, common sample plate spacing adjustable.
-
Small size and easy to operate.
-
Nitrogen inflation valve within.
