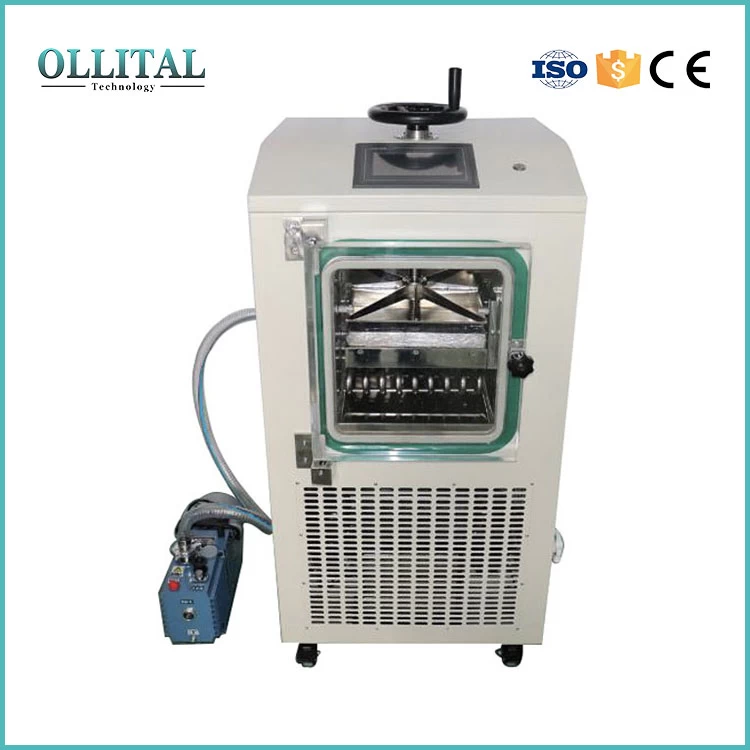

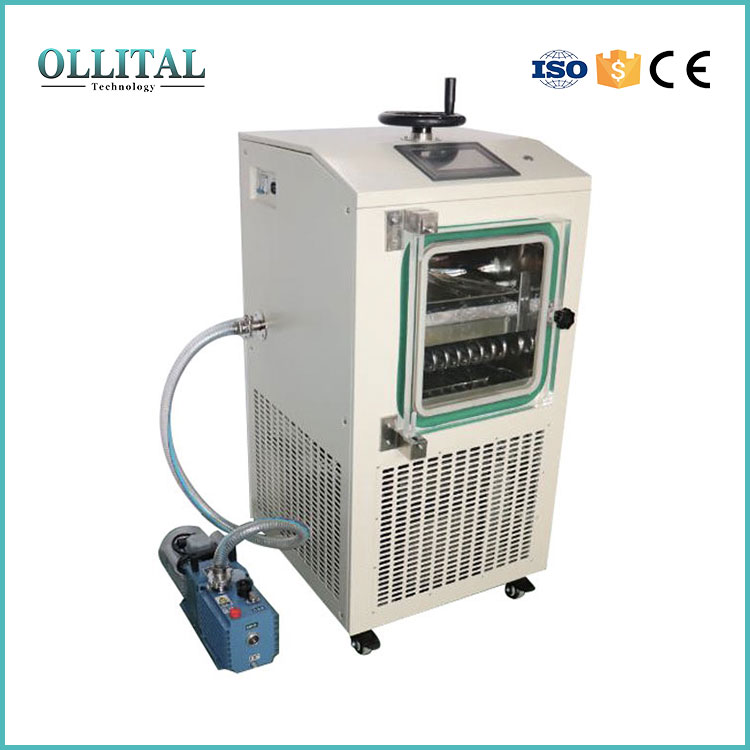

Lab Ordinary Type Top-Press Vacuum In-situ Freeze Dryer
For this series, pre-freezing and drying process are completed on shelf. It changes traditional complicated operation and prevents product from pollution.
Types: standard type and top press type
|
Model
|
Unit
|
TPV-200F
|
|
Standard
|
top press
|
|
Drying area
|
m2
|
2.25
|
1.98
|
|
shelf
|
layer
|
5+1
|
4+1
|
|
Shelf spacing
|
mm
|
80
|
100
|
|
Shelf size
|
mm
|
500x900x20
|
610x810x20
|
|
Bulk capacity
|
Liter
|
22
|
20
|
|
Condenser capability
|
kg/24 hours
|
40
|
|
Shelf temperature
|
℃
|
-50 ~ +70
|
|
Vacuum degree
|
Pa
|
≤10
|
|
Condenser temperature
|
℃
|
Min. ≤-70
|
|
Voltage
|
V, Hz
|
380v ,50/60 Hz
|
|
Cooling
|
-
|
Air,draughty, ambient temperature≤25℃
|
|
Defrosting
|
-
|
Water soaking
|
|
Vial capacity Φ12mm
|
Pcs
|
14400
|
12600
|
|
Vial capacity Φ16mm
|
Pcs
|
7800
|
6800
|
|
Vial capacity Φ22mm
|
Pcs
|
4100
|
3600
|
|
Style of press
|
-
|
N/A
|
Hydraulic
|
|
Dimension
|
mm
|
1200x2100x1700
|
1300x3300x2500
|
|
Weight
|
Kg
|
2300
|
2600
|
|
Power
|
KW
|
13.5
|
15
|
1. PLC control standard, freeze-drying curve is programmable
2. 32 groups programme can be stored, each programme can be set up 36 segments

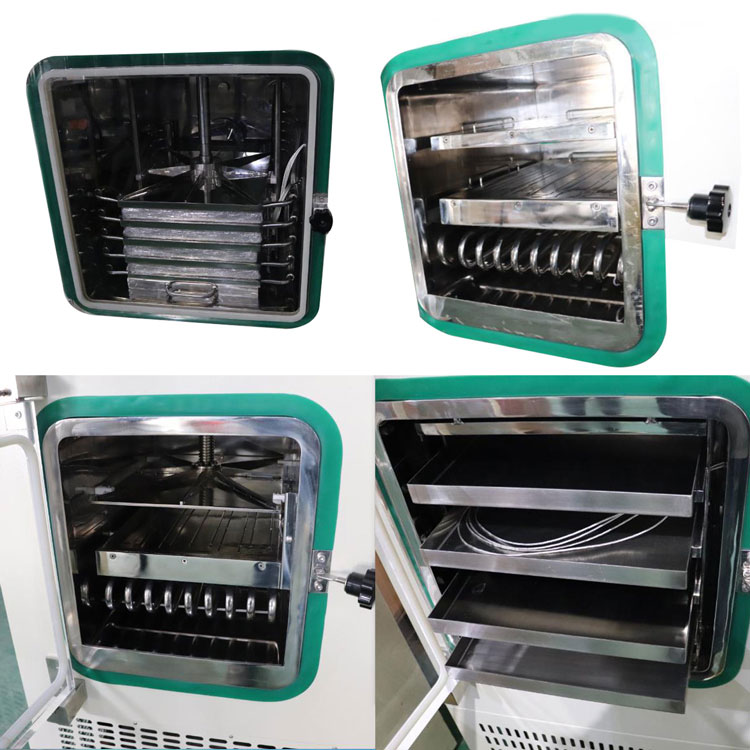

3. With organic glass observation window, the whole process is easy to view
4. The temperature accuracy of shelf is ≤ 1℃
5. Silicon oil fills hollow shelves, with most uniform shelf temperature, with consistent and repeatable drying effect
6. Condenser separated from drying chamber ,better water capture capability and shorter drying time
7. Big touch screen, LCD display , English interface, display of drying curves
8. Internal surface of rectangular chamber and product trays are constructed of stainless steel
9. Air-let-in valve with nitrogen is available
10. Eutectic point test device is optional
11. PC software is optional to achieve remote control
