Polymer Battery Pouch Cell Case/Cup Forming Machine for Aluminum-Laminated Films
SPECIFICATIONS
1 TOB-SCK200 Battery Pouch Forming Machine is used for lithium polymer battery/ pouch cell cup forming in the production line of making pouch cell batteries.
2 The machine is used to prepare polymer cases made ofAluminum Laminated Films.
3 This labaluminum laminated film pouch forming machineis designed with simple Spring mold with a smaller size, which is more suitable for lab research. If we want to do producing or Pilot scale production line, We can choose the TOB-CK150 Model or other producing model.
|
Model
|

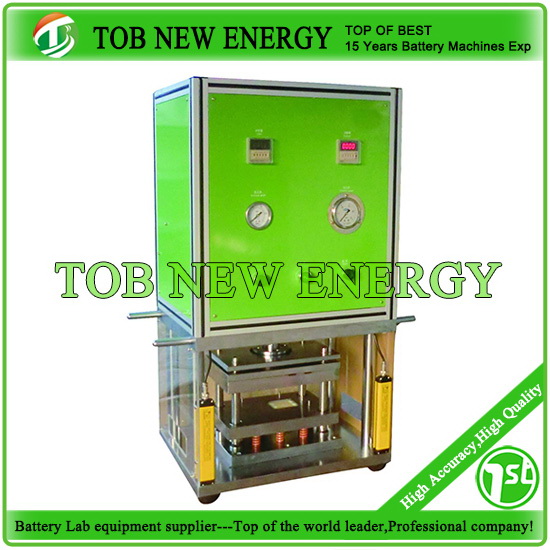

Lab Polymer Battery Pouch Forming Machine TOB-SCK200
|
|
Source voltage
|
AC 220V/110V, 50/60HZ
|
|
Power
|
100W
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Advantages
|
1 Structure of guide pin, slide up and down smoothly with high precision
2 Change mould, adjust tensile depth simply, quickly
3 Use screen and casing protection, guarantee safety
4 High strength of chrome steel and aluminum alloy, surface roasts
the paint processing through environmental protection electroplating
|
|
Suitable aluminum film thickness
|
0.1-0.2mm
|
|
Suitable aluminum film size
|
160*120mm(L*W), customized, with punching depth ≤6mm
|
|
Max. Cup Depth to Punch
|
Single pit punching depth ≤6mm
|
|
Output
|
200-400EA/H
|
|
Output pressure
|
3T
|
|
Air source
|
0.5-0.7MPa
|
|
Mold materials
|
S136 Die steel
|
|
Dimension(L*W*H)
|
460*320*925mm
|
|
Weight
|
About 130kg
|

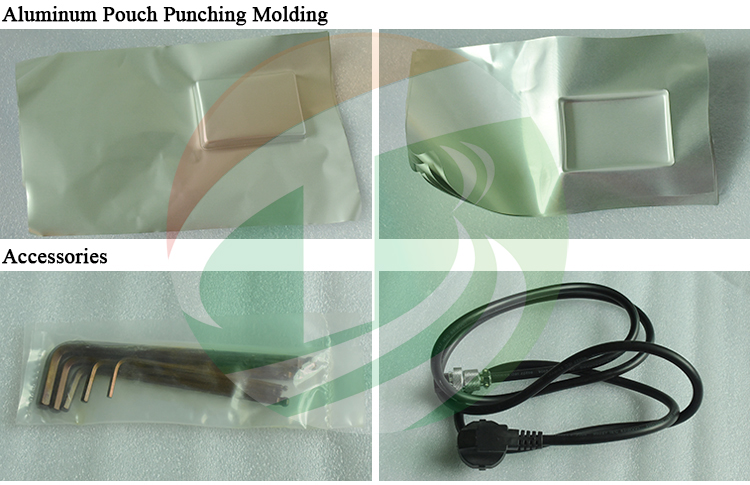

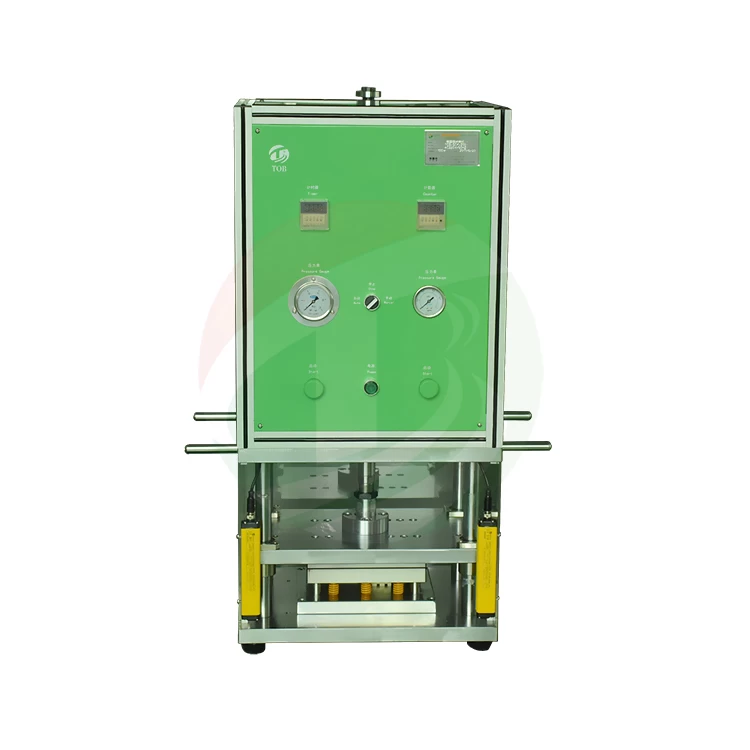

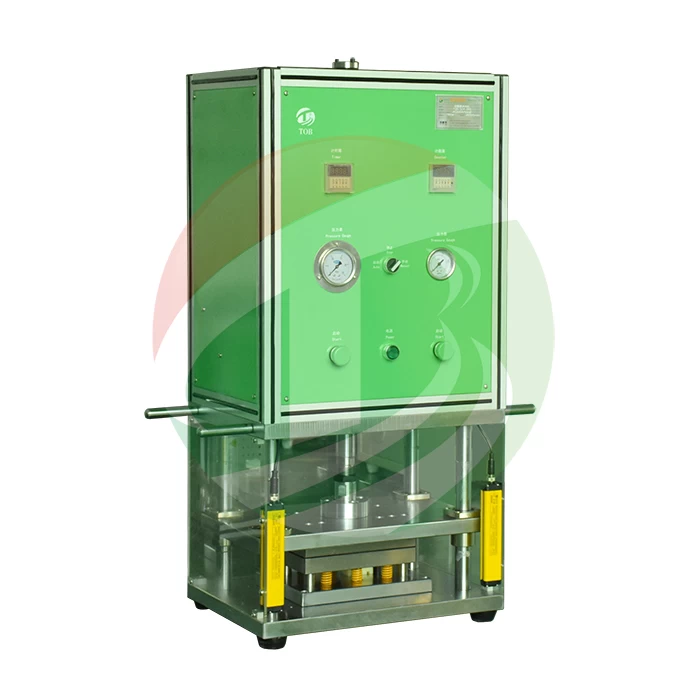

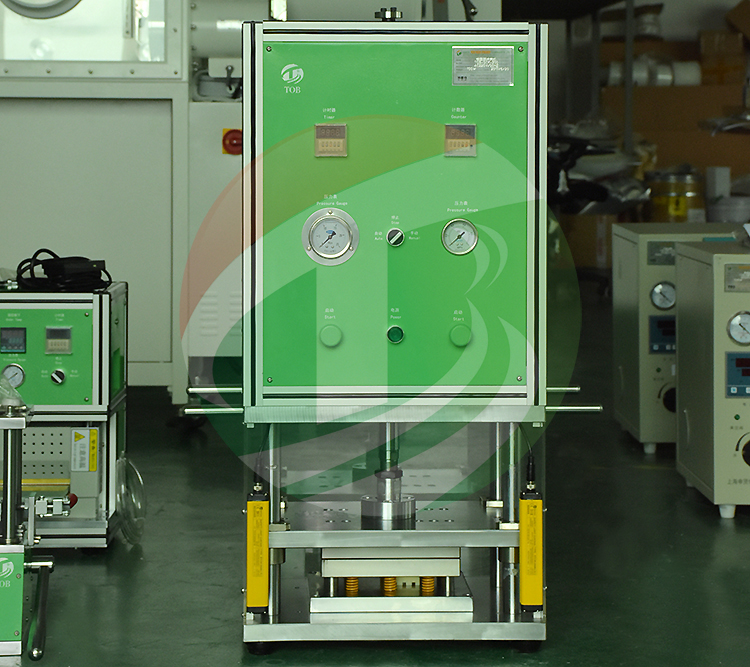

PRODUCT DISPLAY

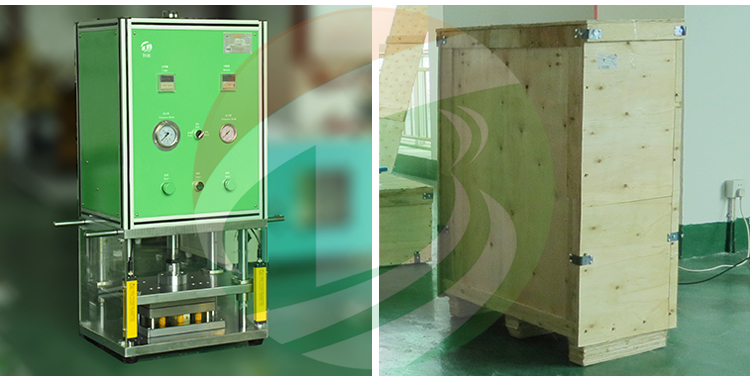

PACKAGE
