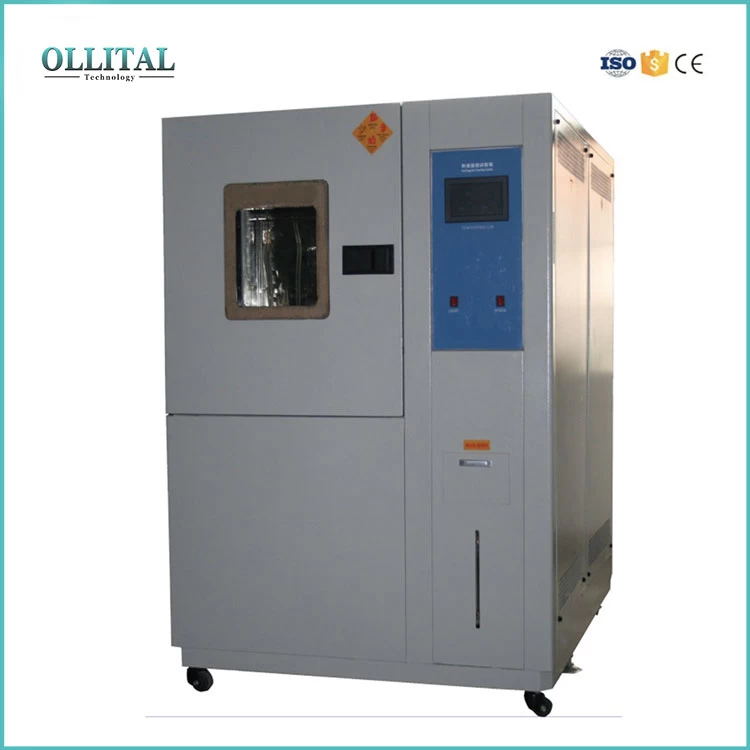

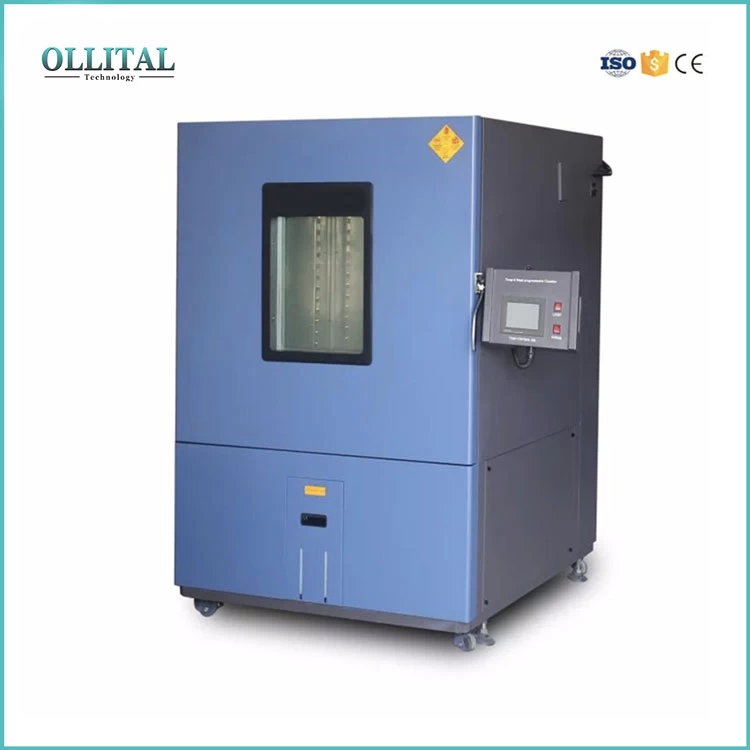

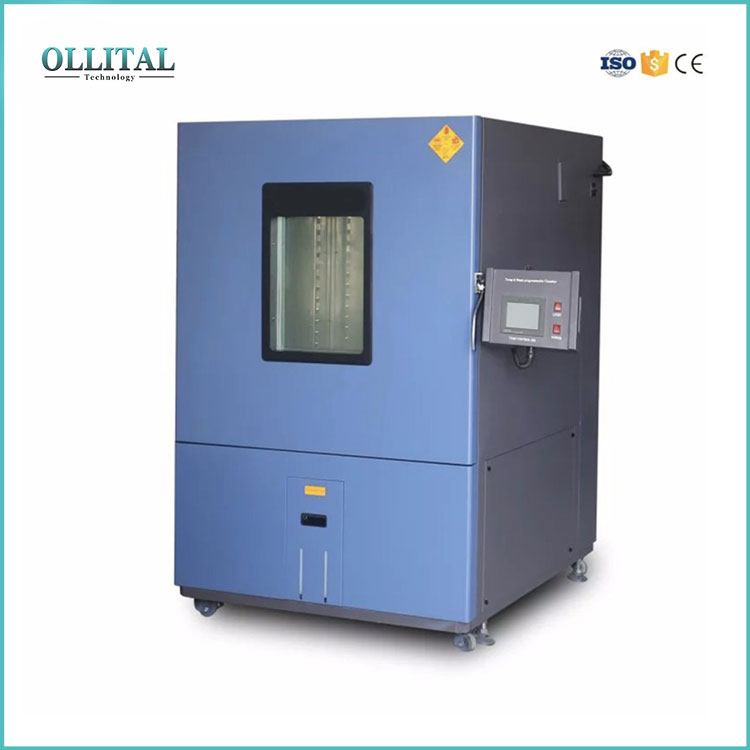

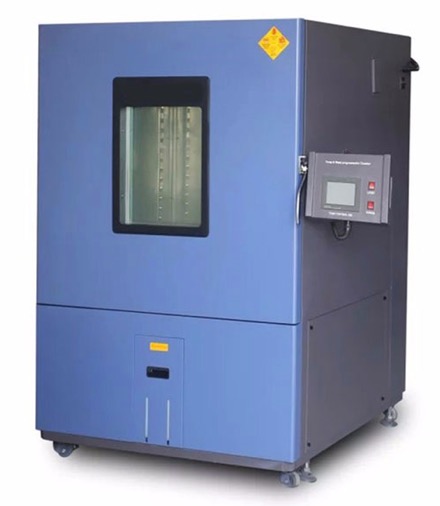

Lab Programmable Fast Temperature Cycling Rapid Change Rate ESS Test Chamber
|
Model
|
OLT-80L
|
OLT-225L
|
OLT-408L
|
OLT-800L
|
OLT-1000L
|
|
Internal Dim.
W×H×D(cm)
|
40×50×40
|
50×75×60
|
60×85×80
|
100×100×80
|
100×100×100
|
|
External Dim.
W×H×D(cm)
|
90×140×95
|
100×165×155
|
160×203×175
|
210×228×195
|
210×228×195
|
|
Temperature Range
|
70~+150°C(KS); -40~+150°C(KL); +20~+150°C(KR)
|
|
Rapid Changes Temp.Range
|
-70model:-50~+85°C(KS),-40model:-20~+85°C(KL),+20model:0~+85°C(KR)
|
|
Heating & Cooling Rate
|
3°C/min, 5°C/min, 8°C/min, 10°C/min, 15°C/min
linear average or nonlinear average
|
|
Performance
|
Temp. Constancy
|
±2.0°C
|
|
Temp.Uniformity
|
±1.5°C
|
|
Indication Resolution
|
0.01°C
|
|
Heat-at Time
|
-70~+150°C<60min; -40~+150°C<50min; +20~+150°C<35min
|
|
Pull-down Time
|
+20~-70°C<70min; +20~-40°C<55min; +20~-20°C<35min
|
-
Programmable setup is available, max 120 sets, 1200 segments and 999 cycles.
-
The refrigeration units are supplied by Tecumseh(France).
-
Touch screen controller, friendly Man-Machine interface and safety device to ensure simple operation and easy maintenance.
-
P.l.D auto counter enables continuous immediate temperature and humidity error correction.
-
5 cm port is centered on the left side of the chamber for ease of cable routing.
-
Mist-free viewing window and interior light provide a hassle free viewing workspace.
-
Swivel casters provide easy mobility and flexibility in a variety of laboratory conditions.
-
Four-tiered safety protection system
Fast Change Temperature Humidity Test Chambers are very powerful climatic chambers used to perform hot and cold cycles with steep temperature gradients(from 3 to 15°C/min depending on the temperature) ranges
Applications
Temperature adaptability test under the condition of rapid change, or gradient for electrical, electronic, instruments and other products or spareparts, particularly applies to environmental stress screening test(ESS)
