Lab Rectangle Mold
The square split mold is also known as the easy-to-retract combined mold, which is generally composed of four inner cores to form a rectangular or square cavity. The diameter of the cavity is the diameter of the sample that is pressed and passed through a circular sleeve. Sleeve and fix the four inner cores as a whole. After the pressing work is completed, the four inner cores are separated by quickly disassembling the mold sleeve, and the pressed powder sample is directly sampled without going through the demolding process, which avoids damage to the sample during the demolding process. This type of mold is mainly used to press some powder samples that are not easy to form or unwind, or because the thickness of the pressed sample is too high, the open valve mold is more suitable for such requirements. The size of the general laboratory mold press: 3-80mm, the common size: within 10-40mm, the press sample size is customized according to user needs. Special mold size, specifications, shape, material, etc. can be customized according to customer needs.
Specifications
|
Name
|
Rectangle opening mold
|
|

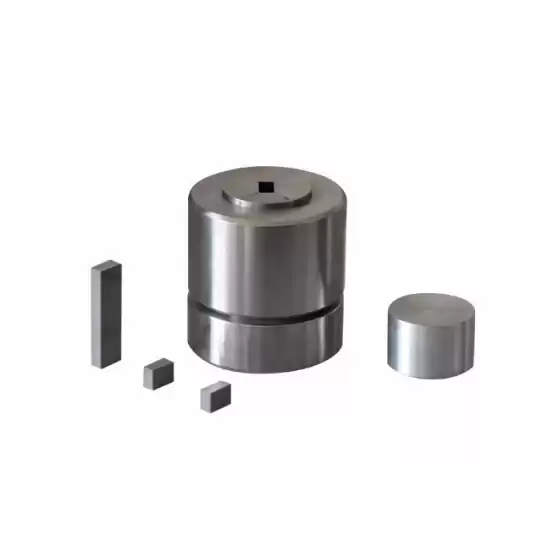

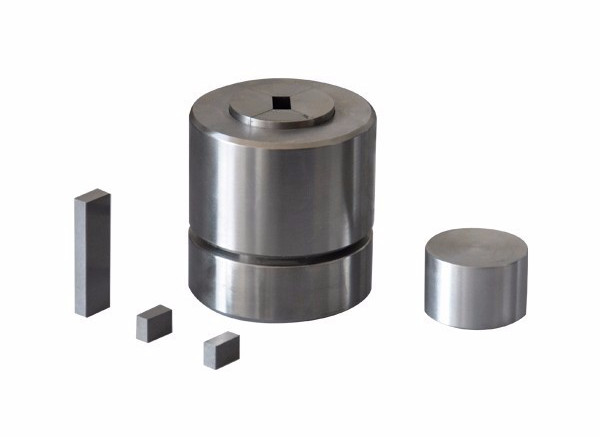

Actual drawing of molding sample
|
|
|
Compressible sample shape
|
Rectangle, square, triangle
|
|
Mold material
|
Alloy tool steel:Cr12MoV
|
|
Hardness of die indenter
|
HRC60-HRC62
|
|
Sample size (≤)
|
≤10mm
|
≤20mm
|
≤30mm
|
≤40mm
|
≤50mm
|
≤60mm
|
≤70mm
|
≤80mm
|
|
Mold cavity depth
|
30mm
|
40mm
|
50mm
|
55mm
|
60mm
|
|
Mould dimensions
|
Φ53×120mm
|
Φ95×133mm
|
Φ127×150mm
|
φ180×180mm
|
|
Φ73×133mm
|
Φ115×133mm
|
Φ153×150mm
|
Φ200×180mm
|
|
Mould weight
|
1.2kg
|
3.6kg
|
7kg
|
14kg
|
20kg
|
30kg
|
40kg
|
50kg
|
|
Calculation formula of die pressure
|
Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure!
|
|
Mould remarks
|
Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold
|
