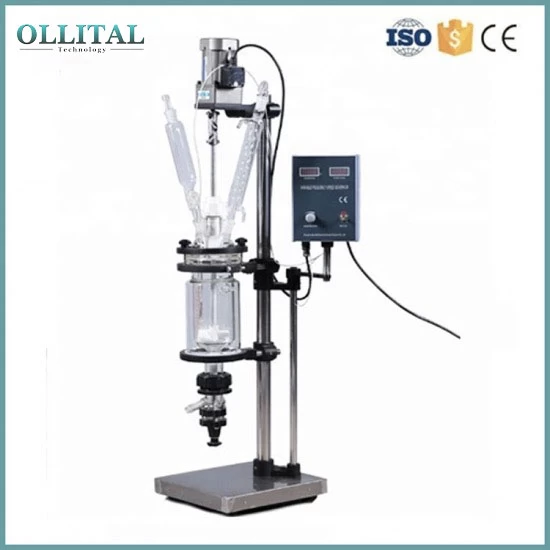

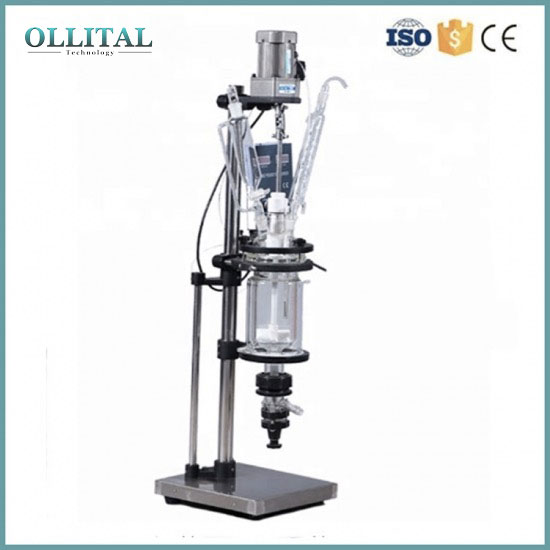

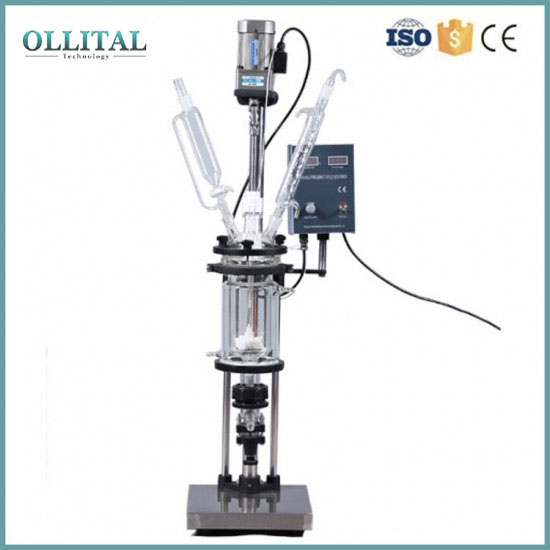

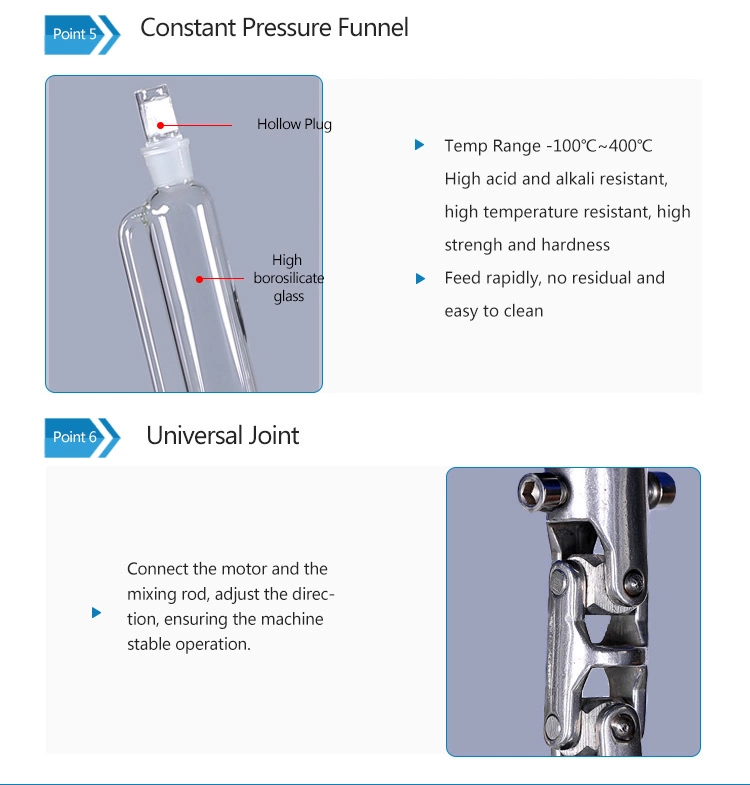

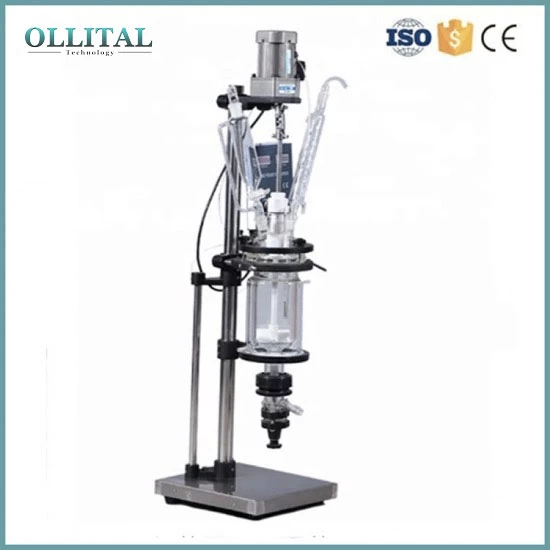

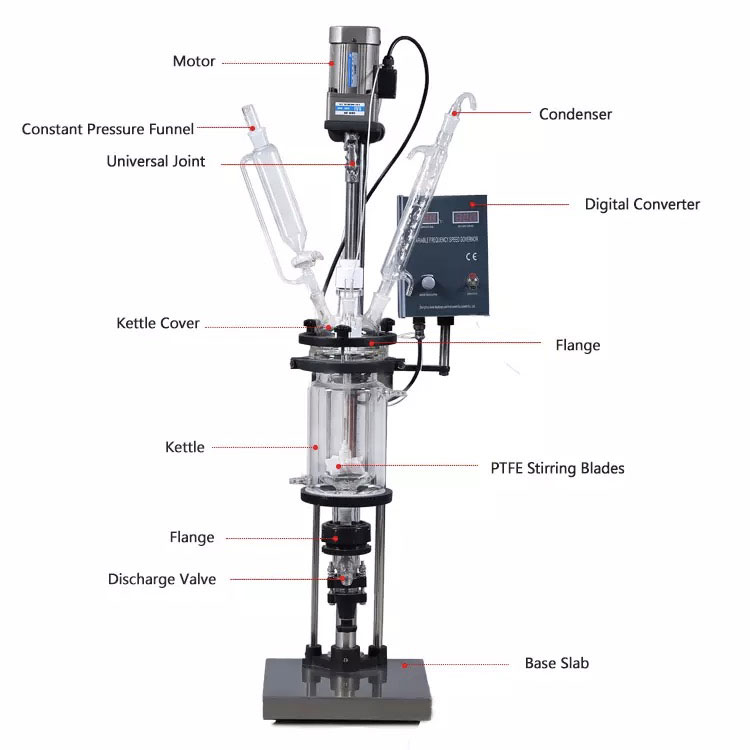

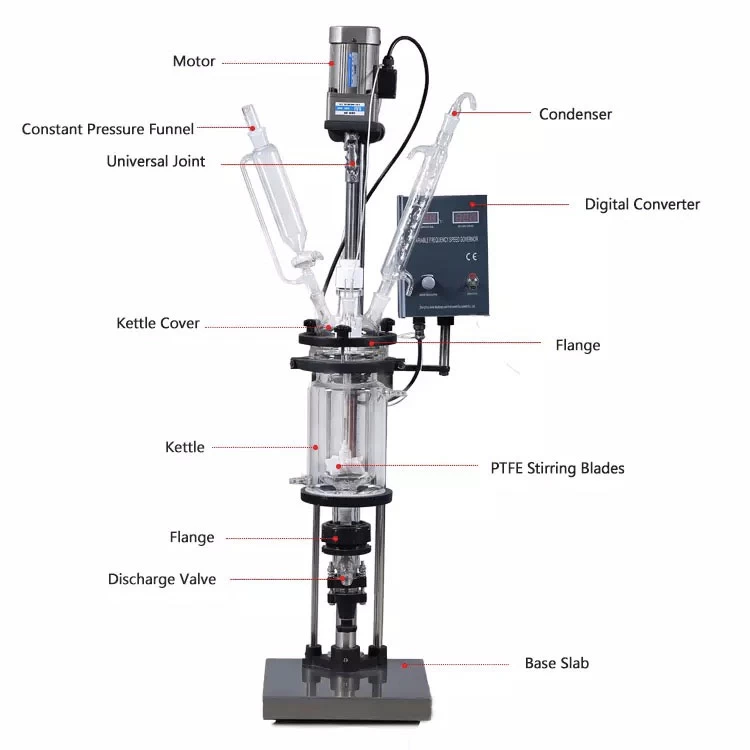

Jacketed glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.This Jacketed glass reactor can be used for vacuum stirring reaction, high temperature and low temperature reaction, constant speed operation mixing reaction, distillation, reflux, concentration reaction,negative pressure operation and so on.
|
Technical Parameters of All Jacketed Glass Reactor Models
|
|
Model
|
OLT-JC-1
|
OLT-JC-2
|
OLT-JC-3
|
OLT-JC-5
|
OLT-JC-10
|
OLT-JC-20
|
OLT-JC-30
|
OLT-JC-50
|
OLT-JC-100
|
|
Stirring Power(W)
|
60
|
120
|
180
|
|
Stirring Speed(rpm)
|
0-600(max.1300)
|
|
Stirring Shaft Diameter(mm)
|
12
|
15
|
|
Reaction Flask Capacity(L)
|
1
|
2
|
3
|
5
|
10
|
20
|
30
|
50
|
100
|
|
Voltage(V/Hz)
|
AC108V~240V
|
|
Motor Torque(g/cm)
|
2000
|
2400
|
4800
|
1000
|
1200
|
1500
|
3000
|
|
Note
|
Floor Type
|
304 All Stainless Steel Frame
|
|
Features of Jacketed Glass Reactor
|
|
1
|

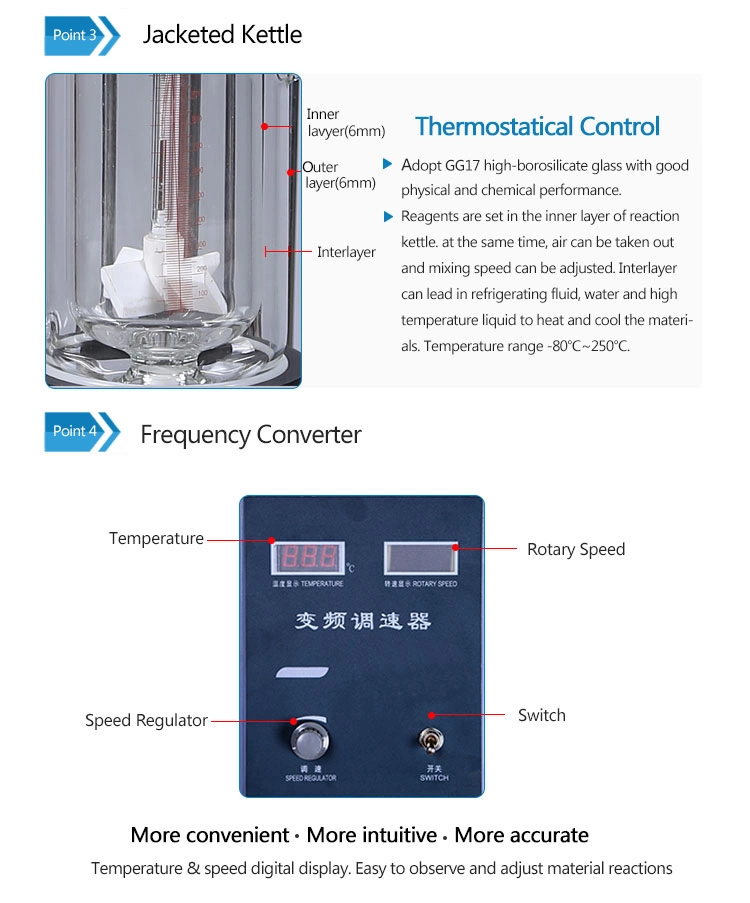

Dual jacketed model allows you to draw vacuum from the outer jacket, thus protects your recirculating fluid temperature and gives you best control over your work. It also help prevents frost to form on the outside of the vessel, allowing you to see clearly into your material.
|
|
2
|
Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
|
|
3
|
All glassware is hand-made from food grade high borosilicate glass that is heat/cold/corrosion-resistant
|
|
4
|
Adjustable stirring rate provides great torque or high speed.
|
|
5
|
PTFE stirring rod bearing for reliable and quiet operation.
|
|
6
|
Optional multi-layer stirring blades for optimal reaction results.
|
|
7
|
Wide range of temperature operations, from -80β to 250β.
|
|
8
|
Large condenser cooling surface for exceptional condensation performance.
|
|
9
|
Explosion-proof motor is optional
|
|
10
|
110V/60Hz can be customized
|
jacketed glass reactors capacity range:1L,2L,3L,5L,10L,20L,30L,50L,100L,150L,fully meet the request of small laboratory experiments and pilot production in plant.
