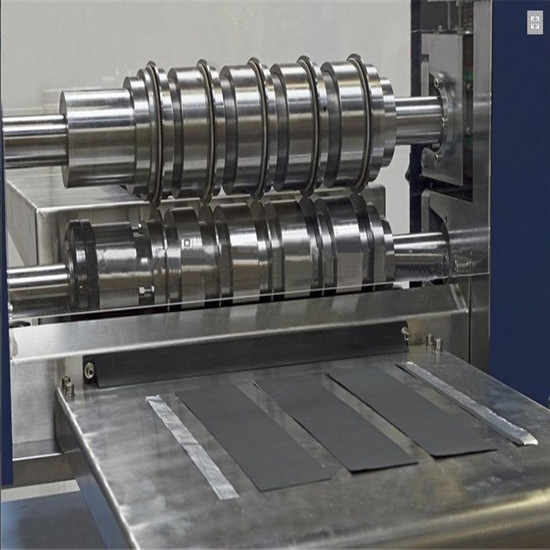

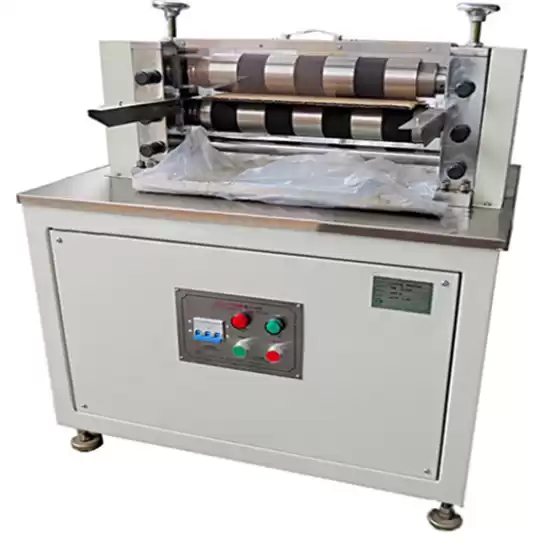

Lab Semi-Automatic Slitting Machine for Cylindrical and Prismatic Battery Electrode Cutting
1 TMAX-DYG-110A model Battery electrode slitting machine is a semi-automatic slitting machine for preparing electrode of cylinder batteries and prismatic batteries in R&D laboratories and production line.
2 The slitting machine can slit electrode with width up to 400mm, and with finished slitting width from 20mm to 400mm with different model cutter blade.
3 This equipment is suitable for rechargeable lithium batteries cathode and anode electrode of the longitudinal cutting, the electrode of the base material can be aluminum foil and copper foil, sliced edge tidy, high dimensional accuracy, no burr, it is an important equipment in plate processing.
SPECIFICATIONS:
|
Model
|
Battery Electrode Slitting Machine TMAX-DYG-110A
|
|
Source voltage
|
AC 110V-220V, Customized, 50HZ
|
|
Power
|
800W
|
|
Warranty
|
One year limited warranty and lifetime support
|
|
Slitting mode
|
Single knife hobbing
|
|

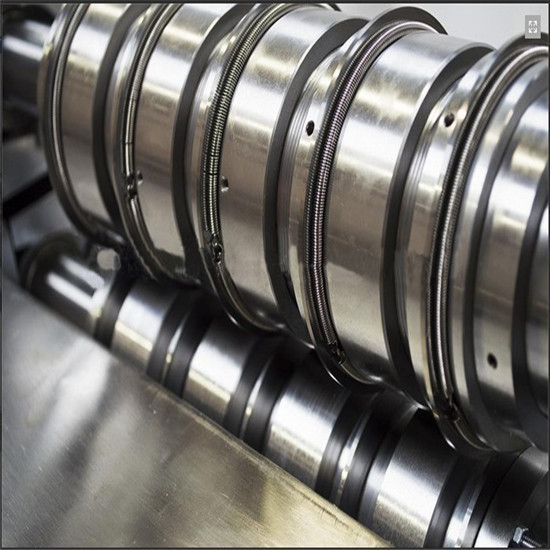

Knife type
|
Upper and lower round knife
|
|
Slitting width
|
20-500mm
|
|
Slitting thickness
|
100-300um
|
|
Hob diameter
|
Φ80 mm
|
|
Slitting speed
|
10m/min, Adjustable
|
