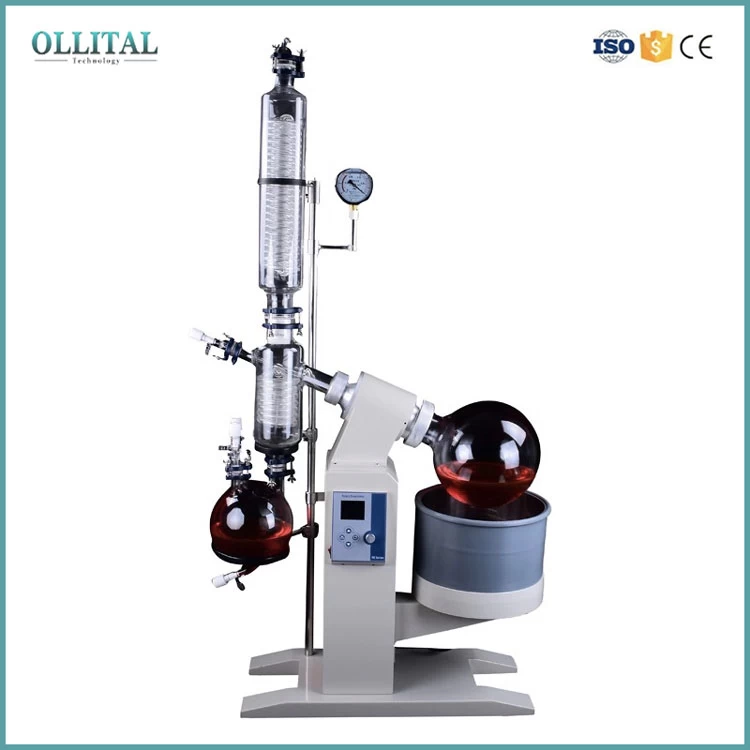

Rotary evaporator use stepless speed to make the glass rotating bottle constant rotation, the material in the bottle wall to form a large area of uniform film, and then through the intelligent constant temperature water bath heat the rotating bottle uniformly, high-speed evaporation under vacuum case, after the efficient glass condenser cooling, the solvent vapor will recycle in the collection bottle.
|
Model
|
OLT-RE-19
|
|
Rotating motor power
|
60W
|
|
Lifting motor power
|
40W
|
|
Heating power
|
4.5kw
|
|
Rotating flask
|
20L Flange mouth:Φ280mm/Φ95mm
|
|
collecting flask
|
10L Flange mouth:Φ230mm/Φ50mm
|
|
Vacuum degree
|
0.098Mpa
|
|
Rotary speed
|
0-120rpm/min
|
|
Heating temp.
|
0-400C
|
|
Temp controlling accuracy
|
±1C
|
|
Glass temp range
|
-80C to 250C
|
|
Condenser size
|
MainΦ130*640H(mm) DeputyΦ130*410H(mm)
|
|
Feed valve
|
Φ35 flange mouth
|
|
Release valve
|
Φ35 flange mouth*2pcs
|
|
Didcharge valve
|
10mm glass and lean discharge port
|
|
Bath size/volume
|
Φ350*220H(mm) about21L
|
|
Lifting stroke
|
0-180mm
|
|
Voltage
|
240/110V 50/60Hz
(various power supply and plug can be customized)
|
|
Gross weight
|
95kg
|
|
Packing size
|
1070*520*1210mm(L*W*H) about 0.67m3
|

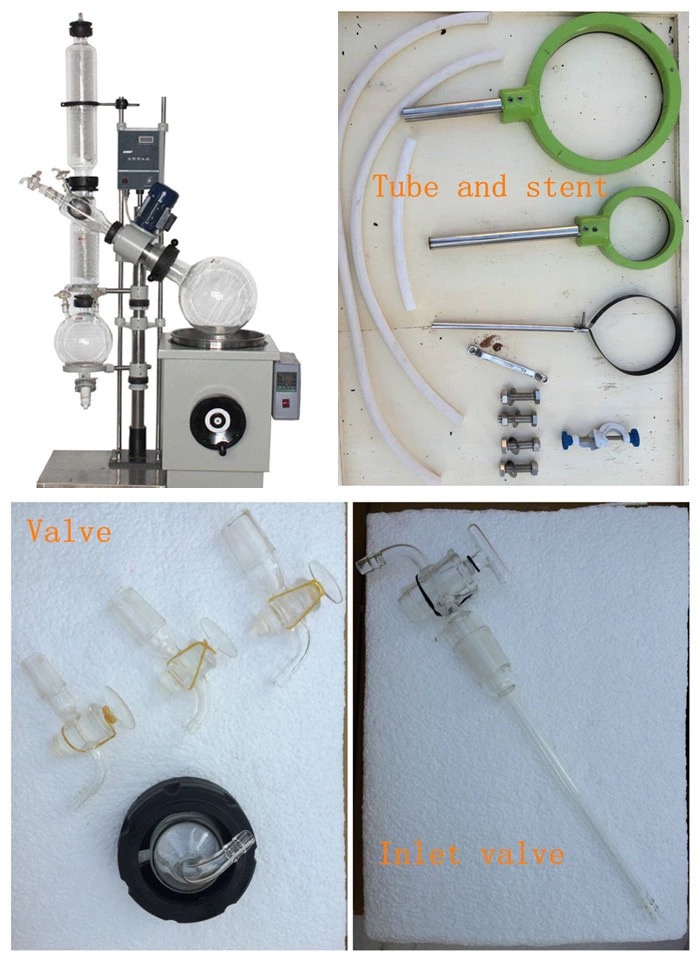

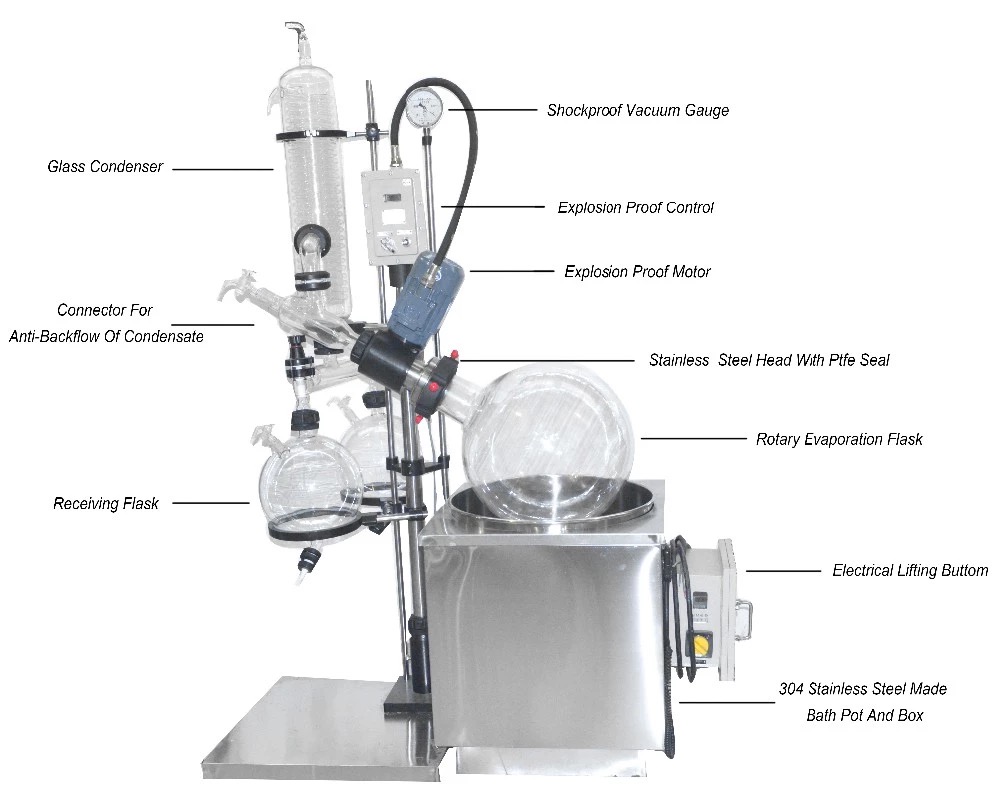

• The main bracket is made of stainless steel and aluminum alloy with reasonable structure and materials.
• All glass components are borosilicate glass (GG-17), high temperature, anti-corrosion.
• Sealing system adopts imported fluorine rubber and Teflon two-way combination seal, long corrosion-resistant life, to maintain a high degree of vacuum.
• Vacuum gauges show real-time vacuum, oil-based table with anti-vibration characteristics.
• Upright three-layer serpentine coil condenser, main cooler + double cooler, ensuring high recovery.
• Continuous feeding for customer's convenience, valve type feeding valve socket PTFE tube.
• Collecting bottles are equipped with dropping materials to facilitate the collection and discharge of evaporated extracts.
• Check valve control, continuous discharge, the machine in working condition, the vacuum switch.
• All valves use the latest integrated hand wheel valve, sealing is good, the operation is more simple and convenient
Microprocessor-based power switch control.
• LCD full screen display, temperature, speed dual digital display, bath thermostat intelligent control, PT100-type sensor, quickly and accurately transfer temperature.
• Brushless DC motor, stable rotation, no spark, slow down by force.
• Bath electric lift, lift part of the deceleration by force motor, lifting process more stable.
• The pot is made of high-quality 304 stainless steel, corrosion-resistant and durable. The outer layer of the pot is covered with a silicone layer, which makes it safer to use at high temperature.
• Over-temperature protection function, when the actual temperature exceeds the set temperature of 5 ℃, the machine will automatically power-off heating.
• Anti-dry function, the heating pot lower than the heating pipe, the machine will automatically power off.
• If there is a sudden power failure while the machine is working, the machine will stop heating automatically when the power is turned on again.
