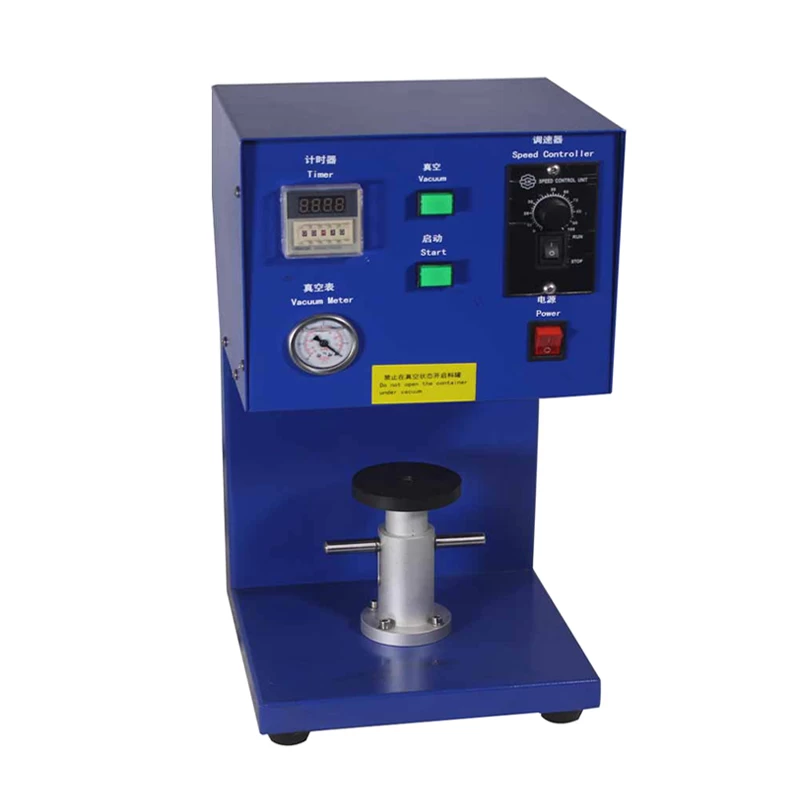

Lab Small Vacuum Mixing Machine for Lithium Battery Raw Materials
This vacuum mixer is built in vacuum pump,with high dispersion efficient equipment. It is suitable for battery electrode paste and various ceramic materials mixing, due to complete the process in vacuum station, fully implemented without air bubbles, improve the filling material and density
Mainly feature:
1.Use soft sealing process, good sealing effect
2.Mixing motor adopts gearbox frequency adjustment, can adjust vacuum speed according to materials feature.
3.Double blade design,make rapid mixing paste.
4.Small overall dimensions, to save space,delicate appearance, simple.
Specifications
|
Model
|
Lab Vacuum mixer machine AOT-VM-150
|
|
Voltage Input
|
AC220V / AC110V
|
|
Power
|
150W
|
|
Stirring speed
|
0 ~ 320 RPM; the inverter speed control
|
|
Vacuum
|
≤-90~-95Kpa
|
|
Accessories volume
|
150 ml stainless steel vacuum drum, can be customized
|
|
Mixing time
|
0 ~ 9999 minutes (can be set)
|
|
Oscillation mode
|
Infinitely adjustable-speed
|
|
Dimensions(L*W*H)
|
About 330*310*510mm
|
|
Weight
|
About 20kg
|
|
Warranty
|
One year limited with lifetime support
|
