Lab Special Boric Acid Mold For X Fluorescence
The special boric acid mold for X fluorescence is to wrap the sample with boric acid powder and then press the powder to form it, which is mainly used for sample preparation and molding of X fluorescence spectrometer samples. At present, there are two common boric acid mold specifications on the market. First, the most common size is: Ф40-Ф32mm, that is, the outer diameter is Ф40mm, the sample size is Ф32mm, 40-32=8, that is, the boric acid size of the wrapped sample is 8mm. The second is: Ф32-Ф24mm, that is, the outer diameter is Ф32mm, the sample size is Ф24mm, 32-24=8, that is, the size of the boric acid wrapped sample is also 8mm. The sheet thickness is 5-8mm high. Other special mold sizes, specifications, shapes, materials, etc. can be customized according to customer needs.
Specifications
|
Name
|
X fluorescence special steel ring mold
|
|
Actual drawing of molding sample
|
|
|
Compressible sample shape
|
Cylindrical
|
|
Common mold specifications
|
Ф outer 32-Ф inner 24mm or Ф outer 40-Ф inner 32mm
|
|
Mold material
|
Alloy tool steel: Cr12MoV
|
|
Hardness of die indenter
|
HRC60-HRC62
|
|
Mold cavity depth
|
45mm
|
|
Mould dimensions
|
Ф73×133mm
|
|
Mould weight
|
3.2kg
|
|
Calculation formula of die pressure
|
Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure!
|
|
Mould remarks
|
Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold
|

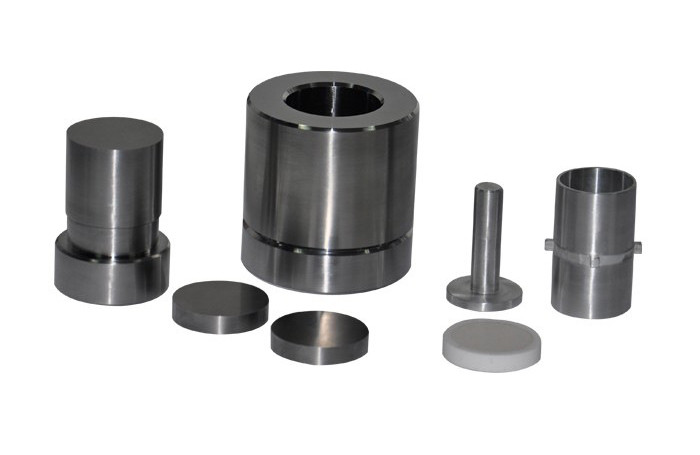

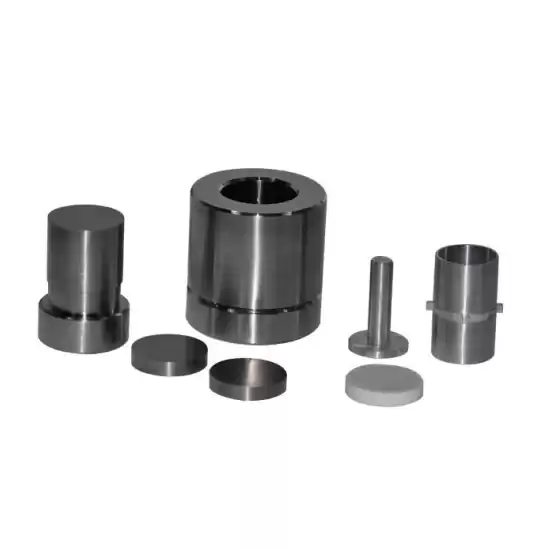

Product Images
