Lab Square/Rectangular Mold
Ordinary square molds are suitable for some easy-to-shape slender powder samples. The mold can be used to form rectangular, square, and strip samples that meet customer requirements for laboratory research and analysis. General die size: 3-80mm, common size: 5-40mm, press sample size is customized according to user requirements. Special mold size, specifications, shape, material, etc. can be customized according to customer needs.
Specifications
|
Name
|
Ordinary Square Mold
|
|

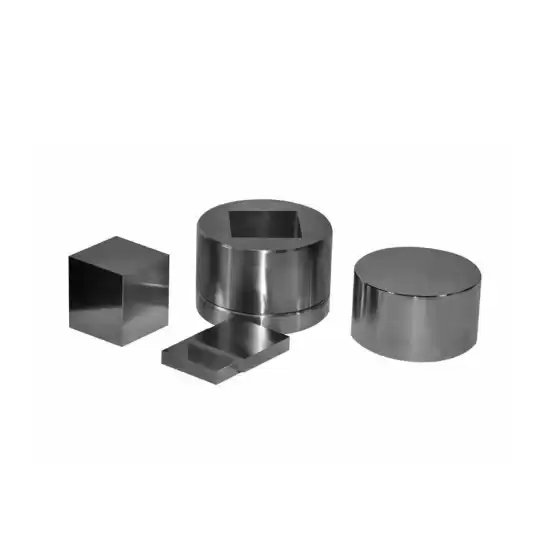

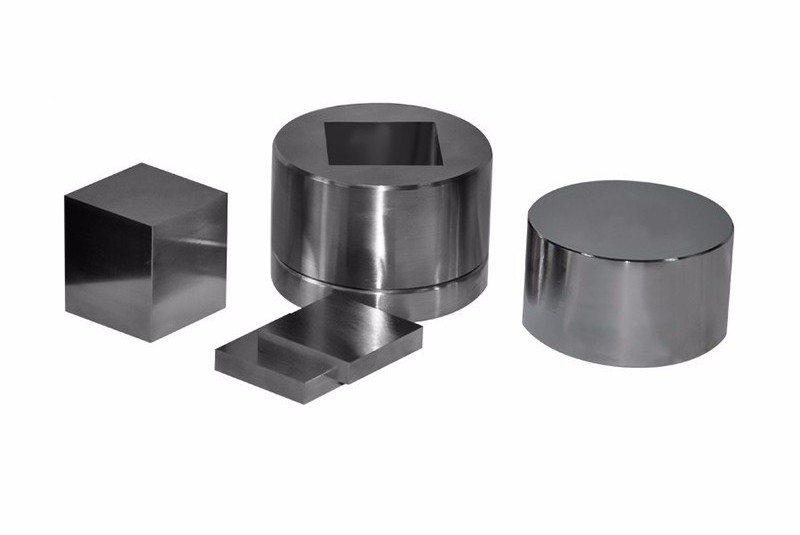

Actual drawing of molding sample
|
|
|
Compressible sample shape
|
Rectangle, long bar, square, triangle, etc.
|
|
Mold material
|
Alloy tool steel:Cr12MoV
|
|
Hardness of die indenter
|
HRC60-HRC62
|
|
Sample size (≤)
|
≤10mm
|
≤20mm
|
≤30mm
|
≤40mm
|
≤50mm
|
≤60mm
|
≤70mm
|
≤80mm
|
|
Mold cavity depth
|
20mm
|
30mm
|
40mm
|
45mm
|
55mm
|
60mm
|
65mm
|
65mm
|
|
Mould dimensions
|
Ф43×93mm
|
Ф73×133mm
|
Ф98×150mm
|
Ф138×180mm
|
|
Ф53×120mm
|
Ф88×150mm
|
Ф118×180mm
|
Ф158×180mm
|
|
Mould weight
|
0.65kg
|
1.2kg
|
2.4kg
|
4.8kg
|
7.3kg
|
11.4kg
|
20kg
|
30kg
|
|
Calculation formula of die pressure
|
Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure!
|
|
Mould remarks
|
Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold
|
