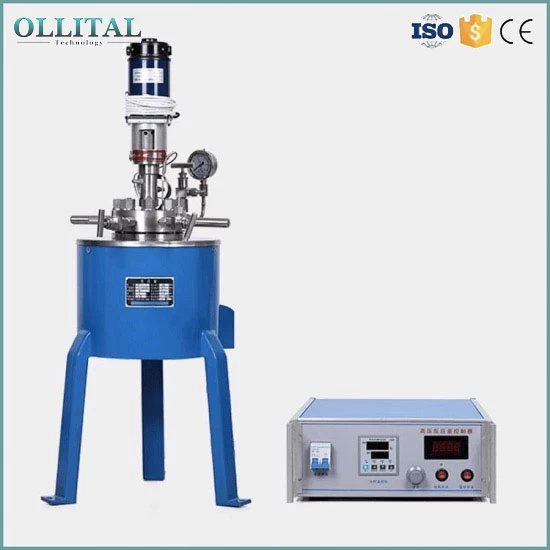

We design and manufacture high pressure stirred autoclave, pressure upto 35Mpa and temperatures up to 450°C in various material of constructions like SS-304/304L, SS-316/316L, hastelloy B/C, monel, inconel, nickel, titanium, zirconium etc. from laboratory to pilot-plant scale for various applications. With the evolving needs of the industry for enhanced productivity and lower cost of production;
|
Model
|
OLT-HP-O5
|
OLT-HP-O1
|
COLT-HP-25
|
OLT-HP-5
|
OLT-HP-1
|
OLT-HP-2
|
OLT-HP-2
|
OLT-HP-5
|
OLT-HP-10
|
OLT-HP-20
|
OLT-HP-30
|
|
Capacity (L)
|
0.05
|
0.1
|
0.25
|
0.5
|
1
|
2
|
3
|
5
|
10
|
20
|
30
|
|
Setting pressure (Mpa)
|
22
|
|
Setting temperature (℃)
|
350
|
|
Accuracy of temperature
control (℃)
|
±1
|
|
Heating method
|
General electric heating, the others are far-infrared, thermal oil, steam, circulating water, etc
|
|
Stirring torque (N. cm)
|
120
|
|
Heating power (kW)
|
0.6
|
0.8
|
1.5
|
2
|
2.5
|
4
|
7
|
10
|
10
|
|
Temperature controller
|
Real~time display and adjust the speed, temperature, time, heating voltage, with standard PID automatic temperature adjustment meter.
|
|
Temperature controller
working environment
|
Ambient temperature 0-50℃, relative humidity 30-80%
|
|
Lifting mode
|
manual lift or electric lift
|
|
Material
|
304/316 Stainless steel, Titanium, also can plus PTFE liner
|
This equipment is used for various applications such as chemical reactions like alkylation, amination, bromination, carboxylation, catalytic redution, chlorination, dehydrogenation etc., also for production of chemical in small quantity, soaking of diamonds or precious stones, corrosion testing, reaction calorimetry etc.
|

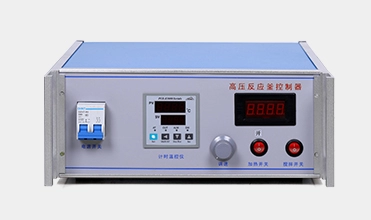

Controller-Digital Display
Intelligent digital temperature control meter, with the functions of automatic temperature control, speed display and stepless speed control, equipped with heating electric meter, motor ammeter, working time display meter.
|

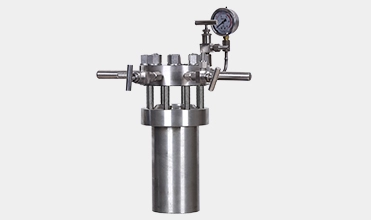

Static Seal-No Leakage
Reaction vessel stationary ring and stationary ring base create the perfect seal with no need for o-rings, according to their structural features, contact stress increased with increasing working pressure, sealing performance is better under the high pressure.
|
|
|

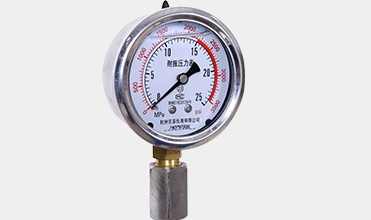

Pressure Gauges-Seisnic Stability
Seismic pressure gauges for the environment places severe vibration, the pulse of media tolerance, and the impact of a sudden unloading, gauges clear instructions and stability, with good vibration resistance.
|

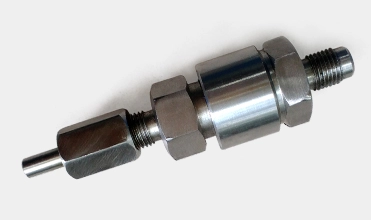

Safety Valve-Safe and Sellable
The reaction kettle equipped with safety valve, that adopted blasting diaphragm, blasting numerical error is small, instantly exhaust gas fast, safe and reliable. Each valve adopts needle valve, reciprocating closed form, seal is reliable and durable. All safety valves with resonable installation and releasing unblocked.
|
|
|
|
