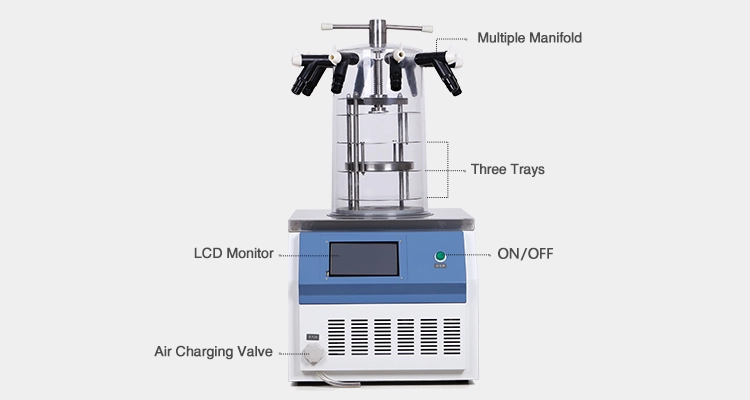

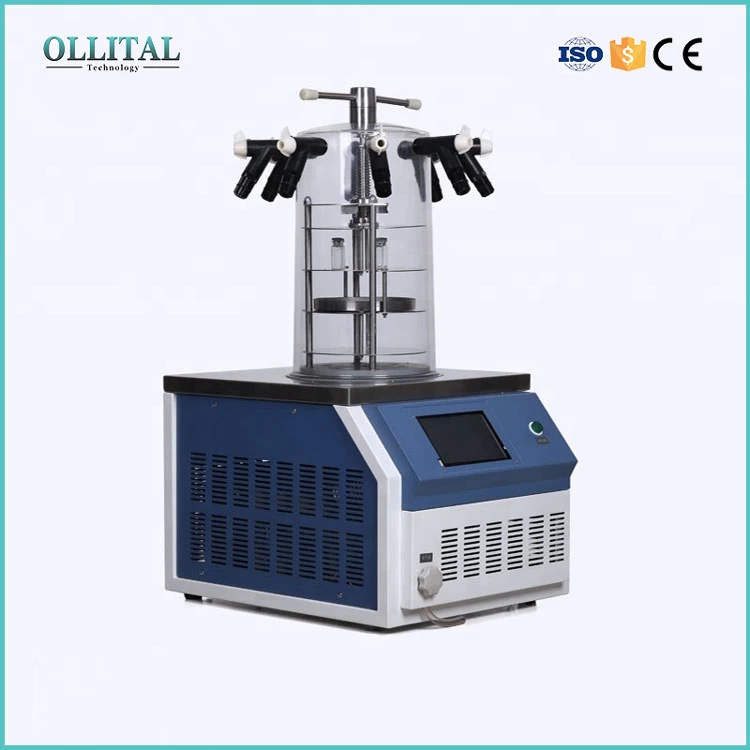

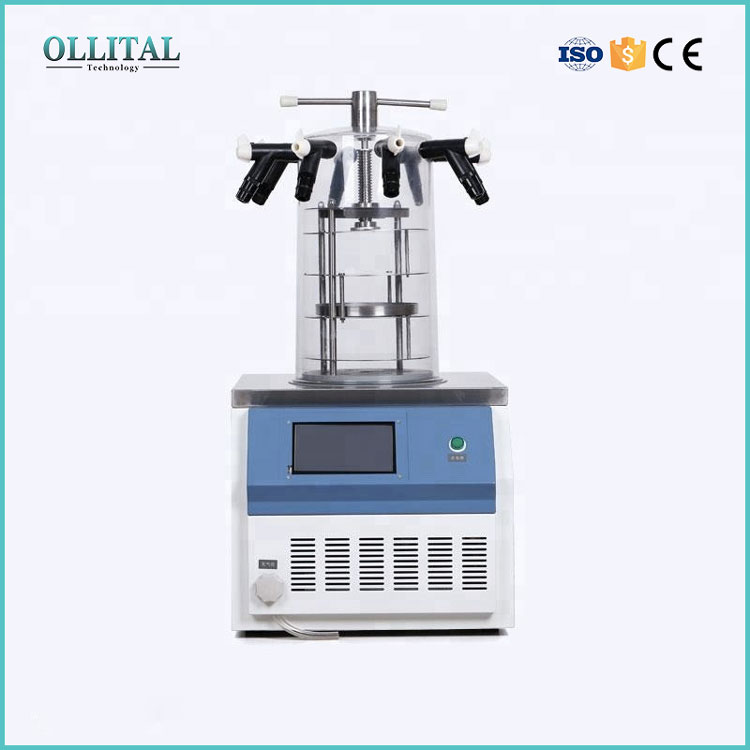

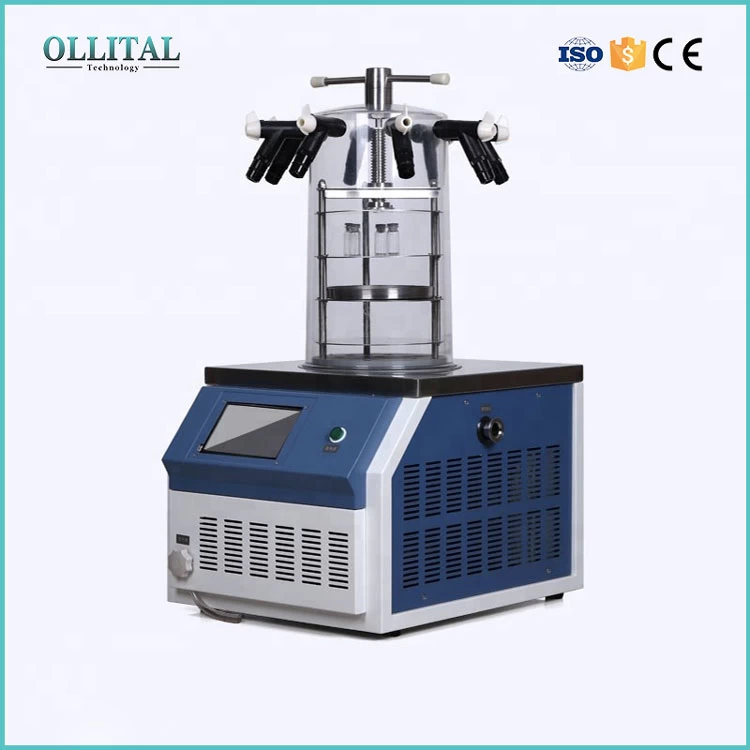

Lab Use Mini Lyophilization Machine
|
Model
|
OLT-FD-1
|
|
Power Supply (V/Hz)
|
220/50
|
|
Heating Power(W)
|
950
|
|
Specifications
|

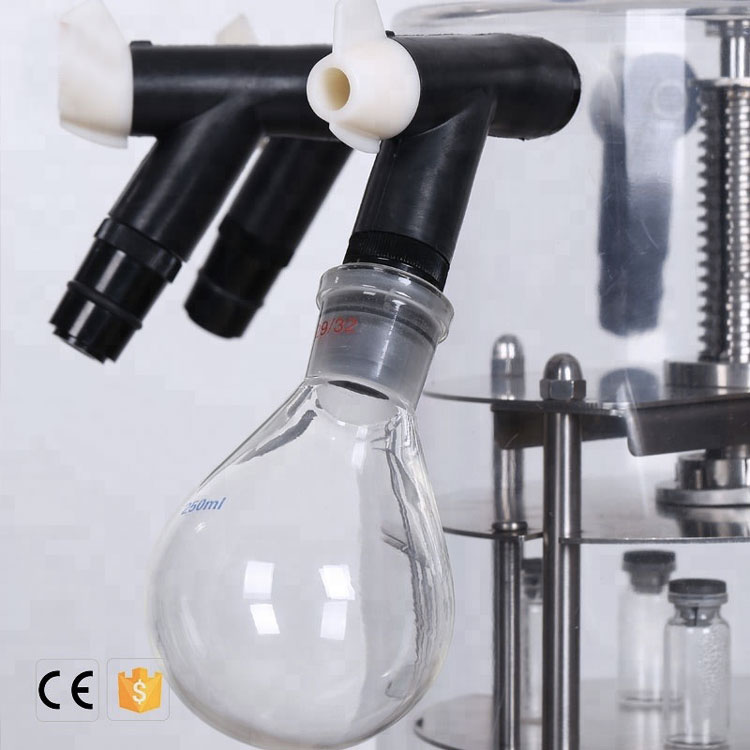

Gland manifold
|
|
Freeze Area (m2)
|
0.08
|
|
Sample Tray Size (mm)
|
Ø180*3
|
|
Plate Load Capacity (L)
|
1
|
|
No-load Temperature (℃)
|
<-56
|
|
Vacuum Degree(Pa)
|
<10
|
|
Interlayer Spacing (mm)
|
70
|
|
The Number of Schering Bottles
|
Ø22mm
|
165
|
|
Ø16mm
|
285
|
|
Ø12mm
|
560
|
|
The Number of Multiple Manifold
|
8
|
|
The Number of Eggplant Shape Bottle
|
8
|
|
Ability to Capture Water (Kg)
|
3
|
|
Cold Trap Size (mm)
|
Ø 215*160
|
|
Machine Dimension (W*H*D, mm)
|
450*580*380
|
( 1 ) The mini lyophilization machine adopts international brand Danfoss compressor refrigeration, rapid , low temperature cold trap .

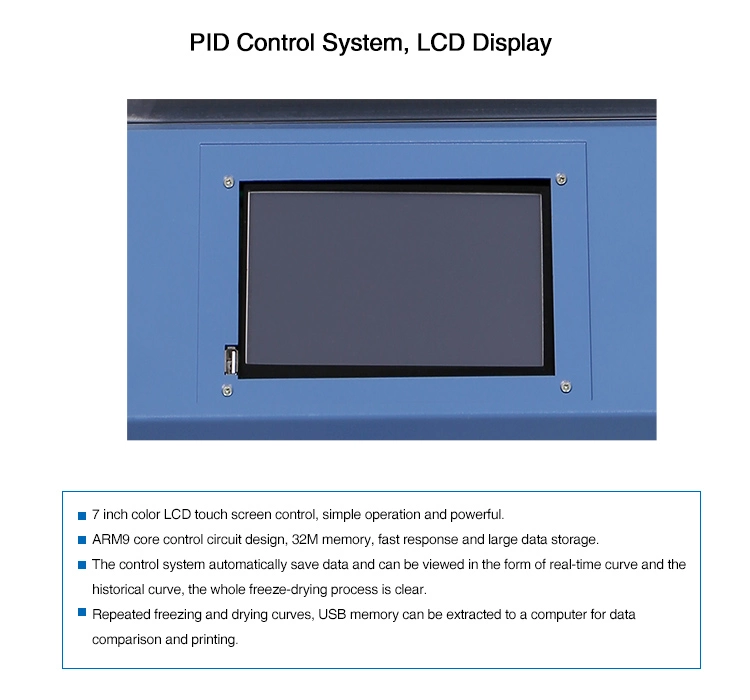

( 2 ) 7- inch TFT LCD touch screen control system , easy to operate , and powerful .
( 3 ) industrial embedded operating system , ARM9 core control circuit design , 32M RAM 128M FLASH, operating fast response, store large volumes of data .
( 4 ) control system automatically saves lyophilized data, and can be viewed in the form of real-time curve and the curve of history , the whole freeze-drying process clear.

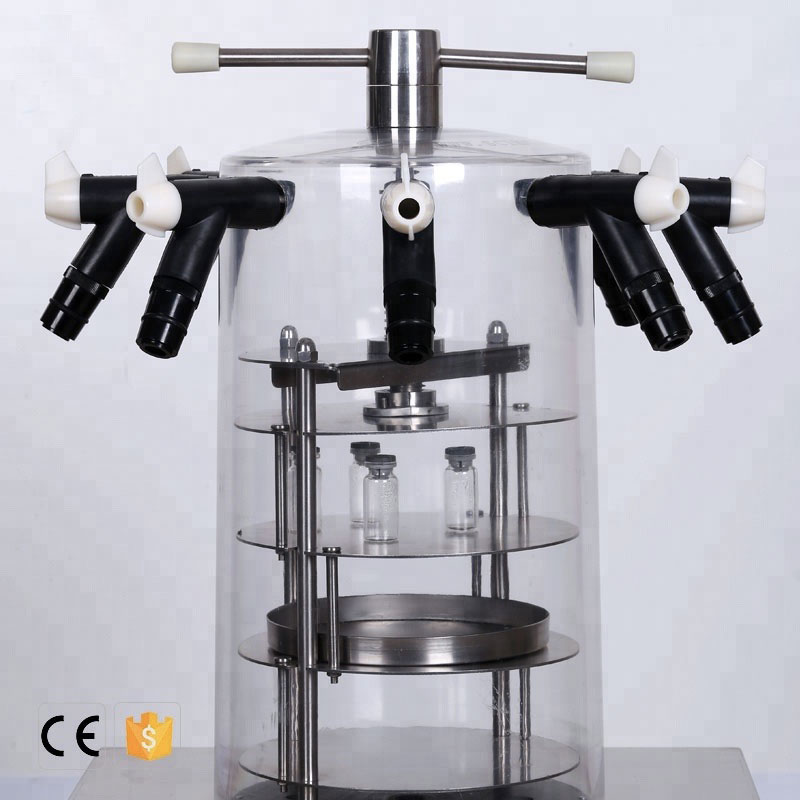

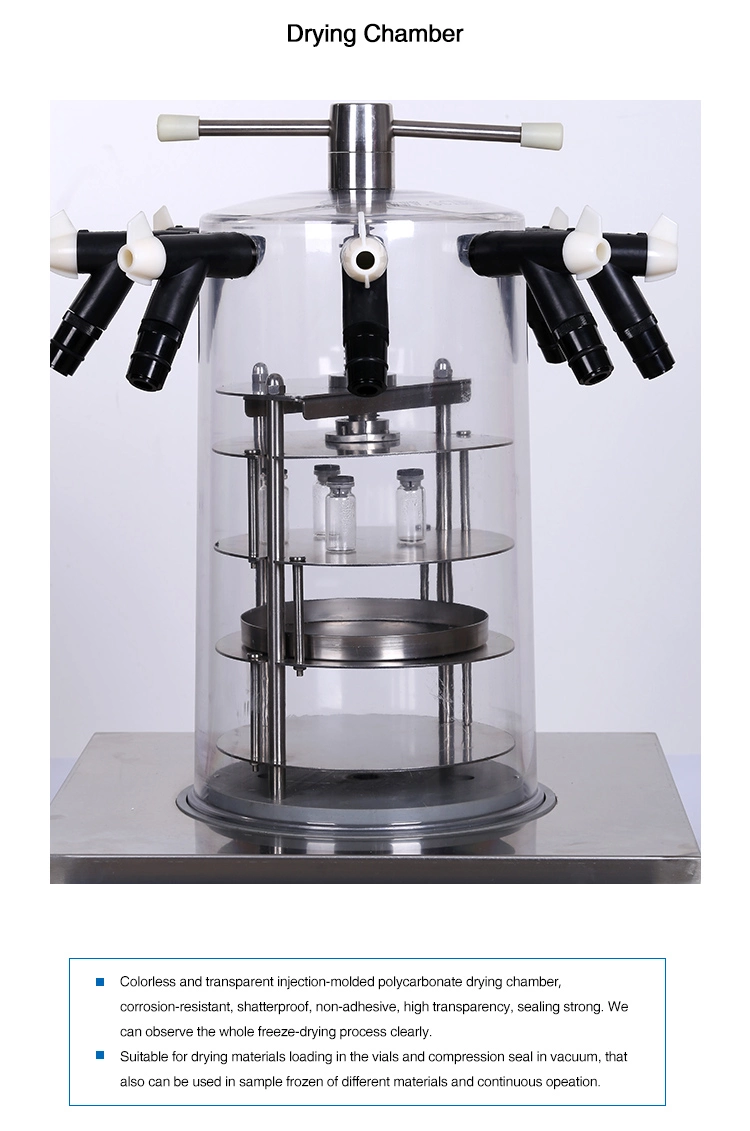

( 5 ) drying chamber using colorless, transparent organic glass , clear and intuitive sample can be observed in the whole process of freeze-drying .

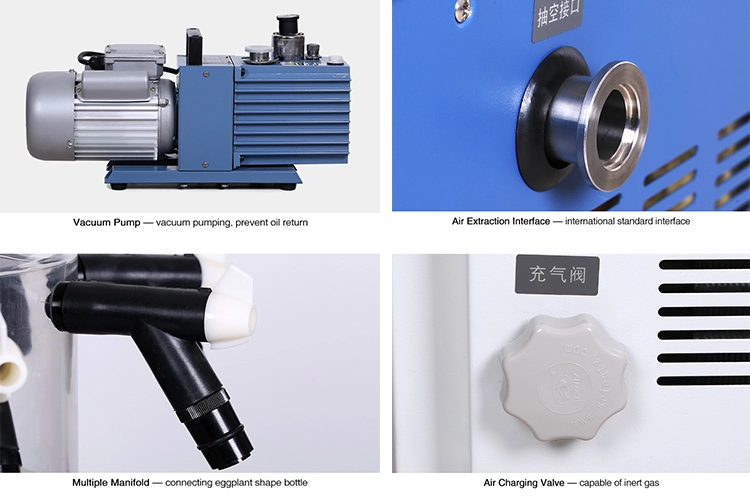

( 6 ) connected to a vacuum pump and a host of international standards KF quick connector , simple and reliable.
( 7 ) The machine can store multiple freeze-drying curve, and extracted with U-disk data to a computer, use the PC software to view and print a variety of options in the computer.
( 8 ) configuration inflation valve , rechargeable dry inert gas.
Laboratory Mini lyophilization machine is the watery element in advance to freeze, then lifted its moisture content under the vacuum state and obtain a technical method of dry goods, freeze-dried article easy to long-term preservation, afteradding water can be recovered to form and maintain the original form of biochemical characteristics. For heat-sensitive substances such as antibiotics, vaccines, blood products, enzyme, hormone and other biological products, the freeze-drying technology can display its superiority, more suitable for laboratory the freeze-drying experiment and a small amount of production of the sample.
