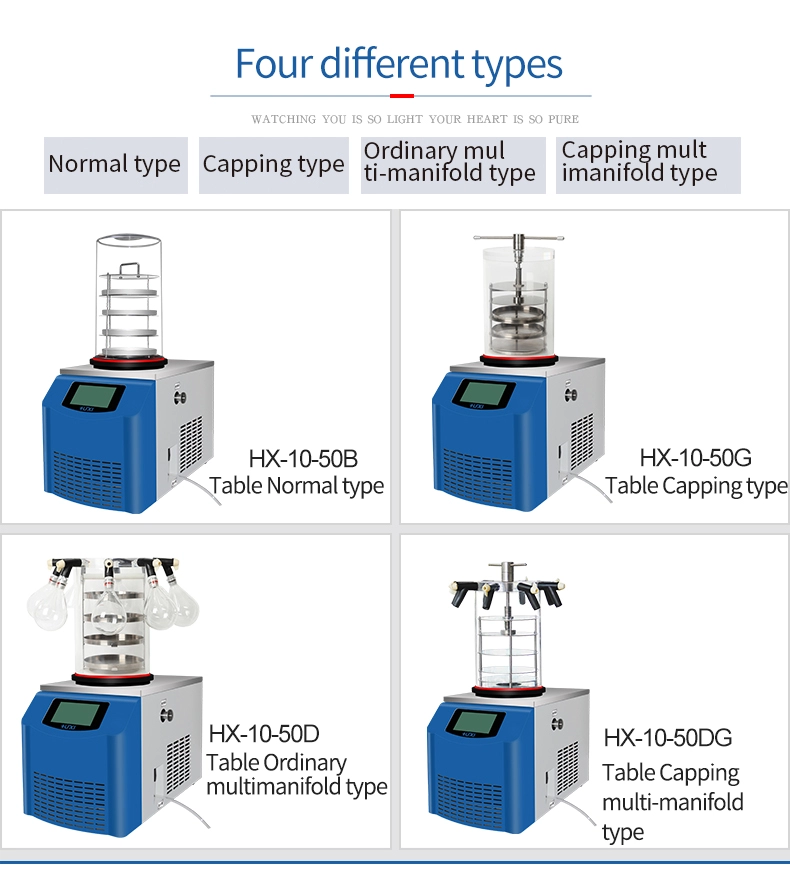

Model
|

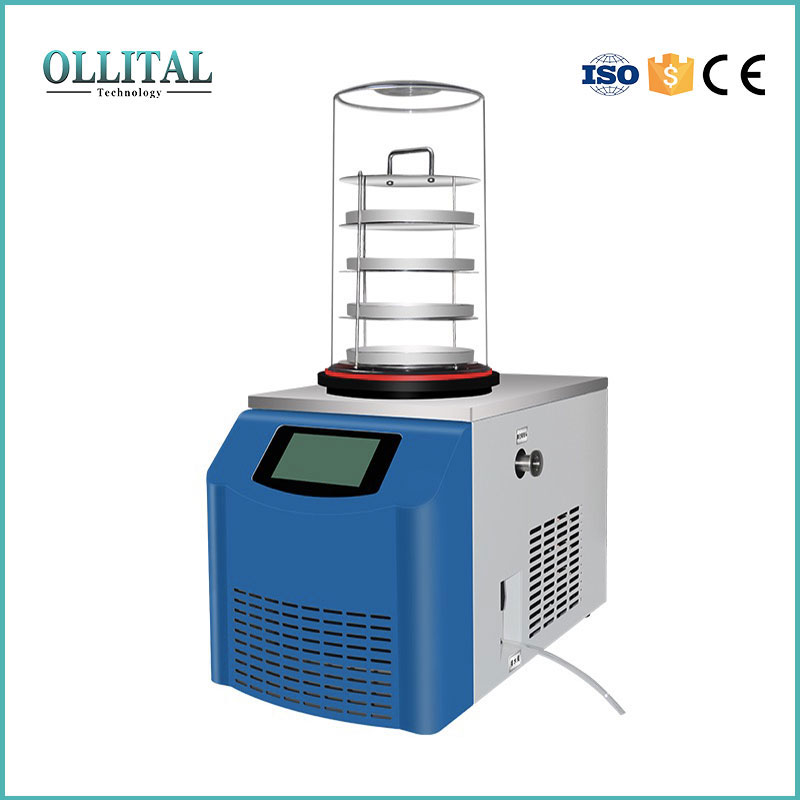

HX-10-50B
|
HX-10-50G
|
HX-10-50D
|

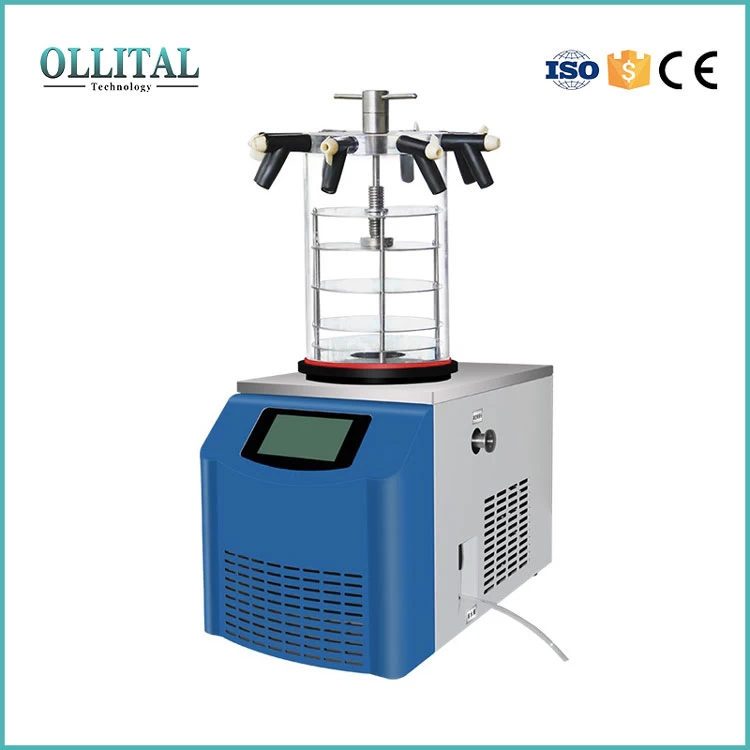

HX-10-50DG
|
|
Type
|
Normal
|
Capping
|
Table Ordinary Multimanifold
|
Table Capping Multimanifold
|
|
Freeze Area
|
0.12m2
|
0.092m2
|
0.12m2
|
0.092m2
|
|
Ability to Capture Water
|
3kg/bulk
|
3kg/bulk
|
3kg/bulk
|
3kg/bulk
|
|
Plate Load Capacity
|
1.5L
|
1L
|
1.5L
|
1L
|
|
The number of Schering bottles
|
12mm:920pcs
16mm:480pcs
22cm:260pcs
|
12mm:560pcs
16mm:285pcs
22cm:165pcs
|
12mm:920pcs
16mm:480pcs
22cm:260pcs
|
12mm:560pcs
16mm:285pcs
22cm:165pcs
|
|
Number of eggplant bottles
|
/
|
/
|
8pcs
|
8pcs
|
|
Material plate size
|
200mm
|
200mm
|
200mm
|
200mm
|
|
Material tray
|
4pcs
|
3pcs
|
4pcs
|
3pcs
|
|

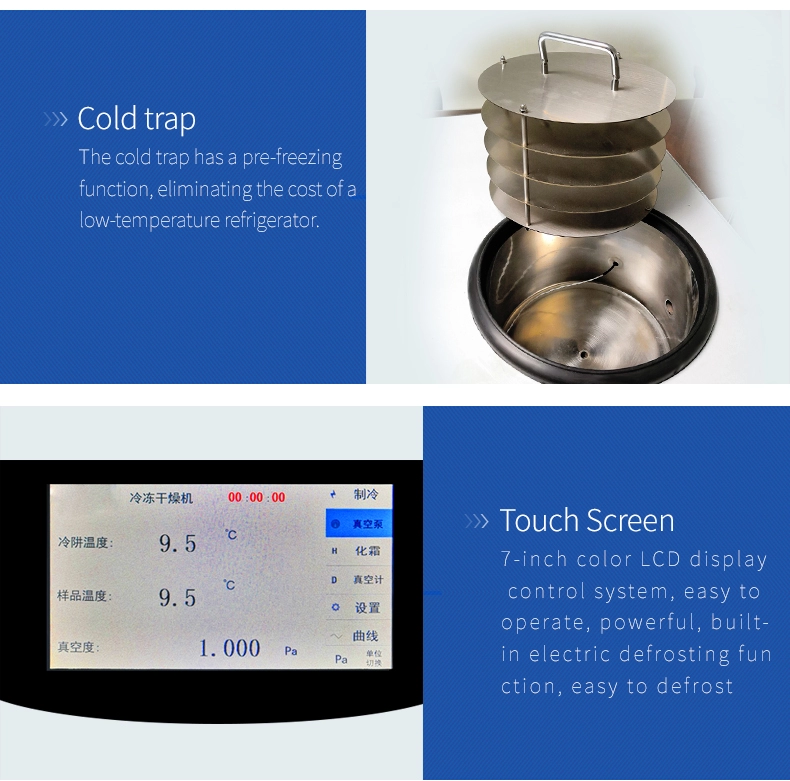

Cold trap size
|
236*160mm
|
236*160mm
|
236*160mm
|
236*160mm
|
|
Cold trap disk spacing
|
70mm
|
|
Cold trap min temperature
|
-50℃
|
|
-80 °C cold trap min temperature
|
<-80℃,Optional ,Price different
|
|
Vacuum Degree
|
<10PA
|
|
Power
|
850W(-80℃,1300W)
|
|
Motor Dimension
|
680*395*450mm
|
|
-80℃ Motor Dimension
|
740*450*530mm
|
|
Total weight
|
80kg
|
|
Voltage
|
108V-240V50HZ
|
