1-10L Volume Customized Lab Vacuum Mixer With Handwheel Control Without Connecting Air Supply
SPECIFICATIONS
1 This TOB-ZKJB system Lab Vacuum Mixer is a high efficient equipment with a set of vacuum mixing and dispersion function together, it is suitable for lithium electricity experiment process for anode and cathode paste mixing process, and also other glue, chemical and other industries.
2The Lab Vacuum Mixer is with handle wheel, which can uplift the cylinder by hand, without connecting with air compressor.
3 The Lab Vacuum Mixer is programmable in speed, time, and rotating direction, and water cold stainless steel tank promise high efficient in mixing.
4 The TOB-ZKJB system Lab Vacuum Mixer is excellent for preparing LiCoO3, LiFePO4, Phosphors and ceramic slurry without gas bubble. And the processed material results in the better dispersion and uniformity.
|
Model
|
Lab Vacuum Mixer TOB-ZKJB-02
|
|
Source voltage
|
AC 220V/110V, 50HZ/60HZ
|
|
Power
|
750W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Mixing speed
|
0-1400 r/min, Through the inverter speed control
|
|
Effective volume
|
2L, 1-10 Liters Customized according request
|
|
Mixing barrel opening mode
|
Arms straight line guide rail hand cover rising,
without connecting air compressor
|
|
Mixing barrel size
|
Φ125mm(Diameter)*200mm(Hight)
|
|
Mixing time set
|
0-99H can be set
|
|
Heating temperature
|
0-80℃ Can be set
|
|
Weight
|
About 90kg
|
|
Dimension(H*L*W)
|
600*500*300mm, 24″*20″*12″
|
|
Advantage
|
1-10 liter 304 stainless steel container with double layer water cooling jacket.
Advanced soft sealing type to keep vacuum pressure maintain on -98kpa up to 24 hours.
Double Step Rotary Vane Vacuum Pump, 254L/m, is included for immediate operation
Programmable controller to set time, speed, rotation direction.
With time and temperature setting function
Container is opened or closed by electric Hand (no air pump is required any more)
|

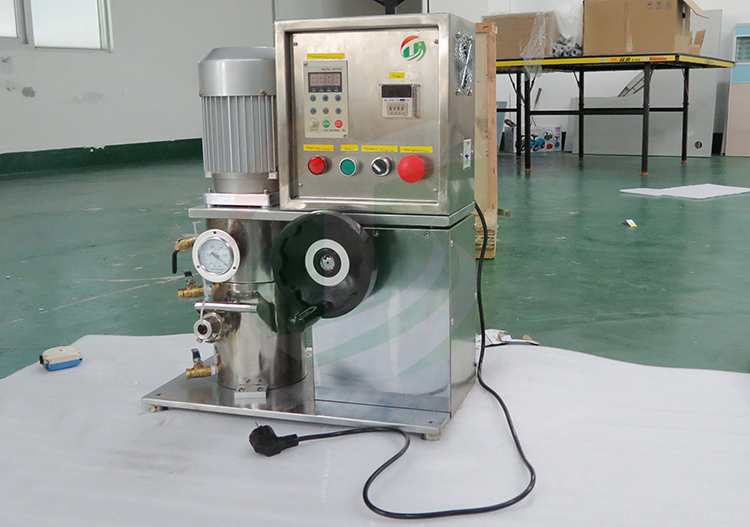

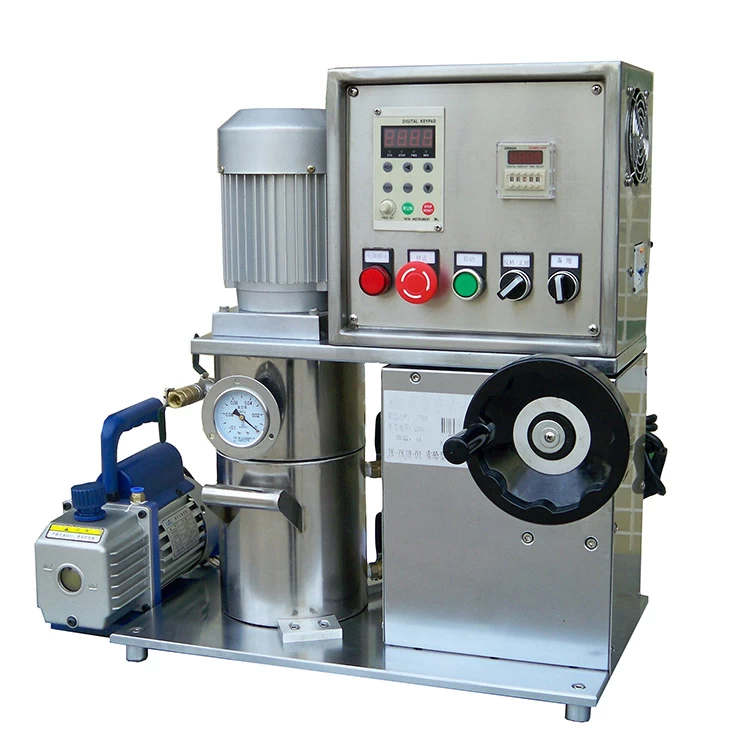

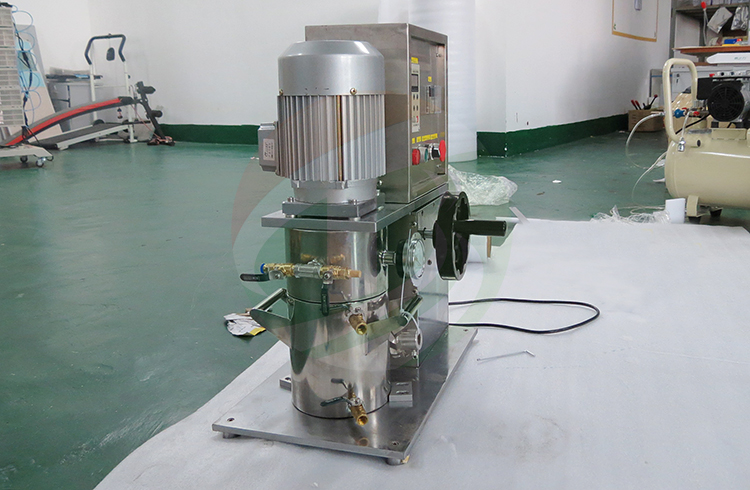

PRODUCT DISPLAY

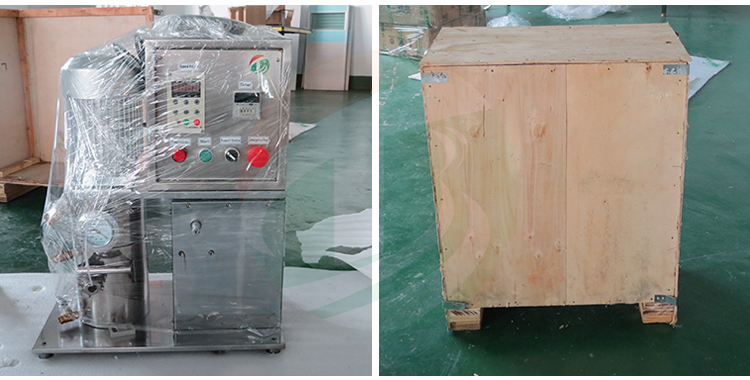

PACKING
