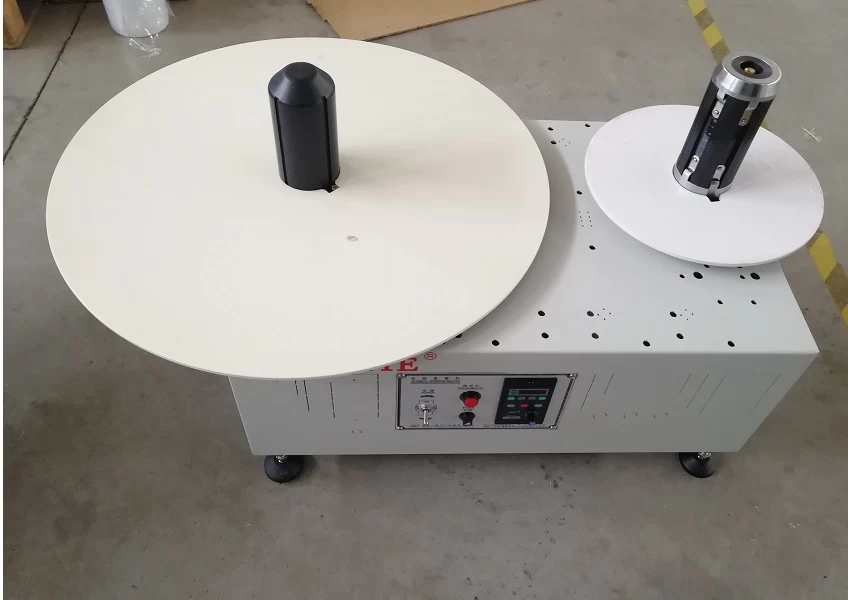

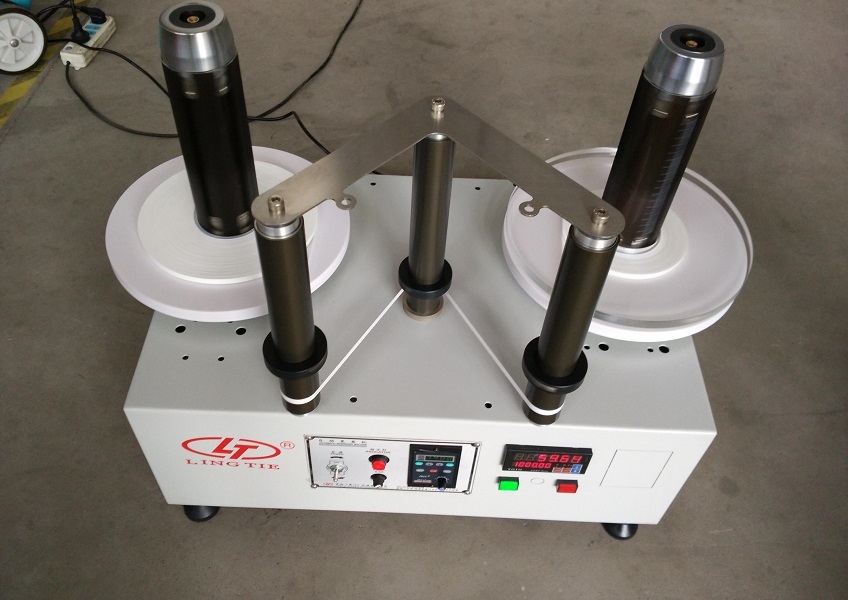

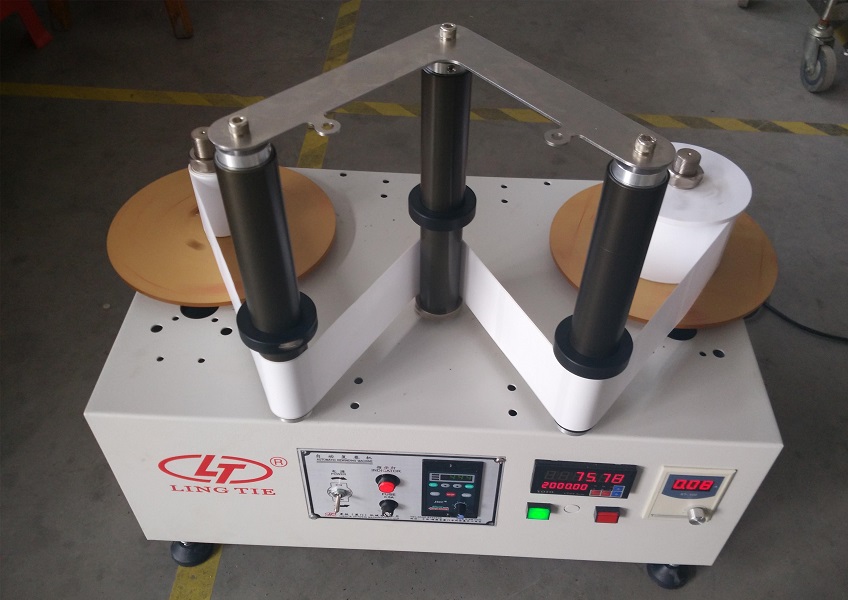

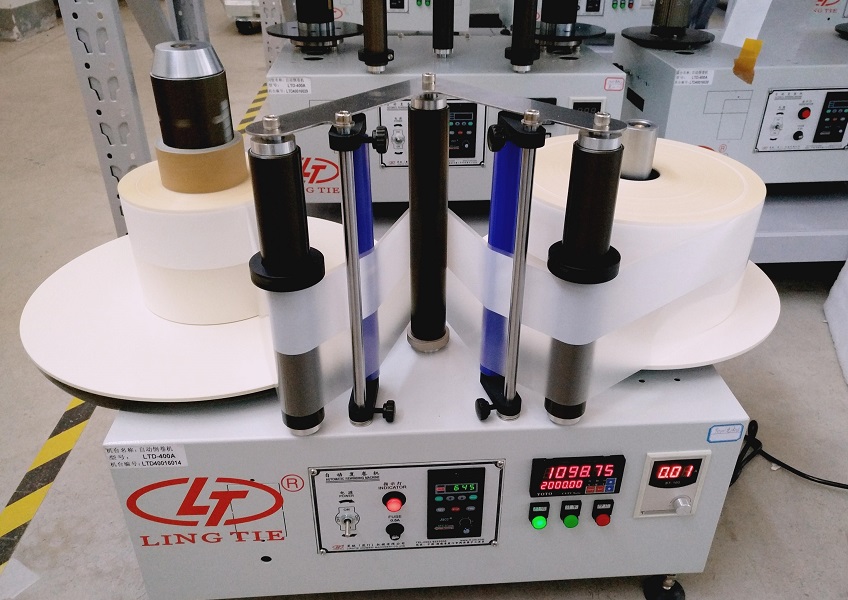

Description for the Label Rewinder Machine
This Label Rewinder Machine especially--designed used to rewind the label direction and count the label number for the different material label, equip with customized mechanical shafts or air shafts, interchange various of core size, kinds of roll diameter and tension controller, these units present the most versatile way to get the job done.
Specification for the Label Rewinder Machine
Max.roll diameter -- 670 mm
Allowable weight -- 40 kg (all kinds of material )
Power supply -- 220 Volts /0.12 kW, single phase
JSCC motor and speed reducer
dimension -- 660 x 400 x 580 mm
Machine weight -- 40 kg
Magnetic Tension--6 N
We need the information on your label reel to offer price to you.
Max.label roll diameter
Approximate max.label roll weight
Expected rewinding speed
Required unwind shaft diameter
Required rewind shaft diameter
If require multi-diameter shafts, which two diameter shafts are most often used
Label roll material? paper or PET film
the label material is transparent or not
FAQ
1, Are you a manufacturer or a distributor?
-
We are a professional manufacturer for 15-years in China.
-
There are so many models of the Label Rewinder Machine in our workshop which ensure short delivery time and can reduce your waiting cost.
2, What kind of material does your Label Counting Machine rewind?
-
Most of the material could be rewind in roll form, including the elastic material. Before your order, you can send me some samples is the best way.
3, What the maximum width of the material could be rewind?
-
The standard width is 150mm, 170mm, 300mm & 600mm, and another width we can customize for the client.
4, Is there any additional function of your machine?
-
Yes, Count Meter, Count Piece, Tension Control, Web guide, dust removing, Static Eliminating for an option.
5, How many sizes of shafts do your machine use?
-
The standard shaft size is 25mm, 38mm, 76mm ( 3 inches), and another size we can customize for the client.
-
There are two kinds of shafts for choose, air shaft, and mechanical shaft. ( air shaft need a compressor to expand)
6, What is the maximum reel diameter of your machine？
-
The standard reel diameter is 300mm, 350mm, 450mm, 550mm, 600mm, 650mm, 670mm.
7, What's the Label Counting Machine price?
-
The price according to your side demands, and the price range: 800--7000 $
8, What are the Certifications of your machines?
-
We have CE Certificate & ISO Certificate
9, How can you promise that Each Component, 10-years non-rusting?
-
We have the Self-Machining CNC Center and each process under the strict quality control, which is one of the conditions that ensure the stability of the Laber Counter Machine
10, We supply OEM/ODM Service to the worldwide clients.
11, What's the packing mothed of you label counting machine?
