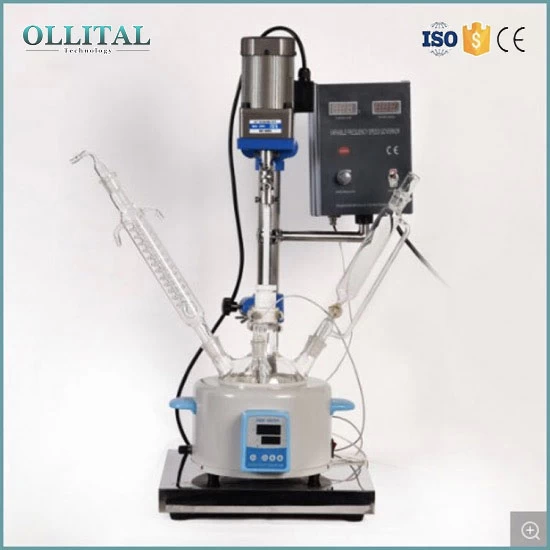

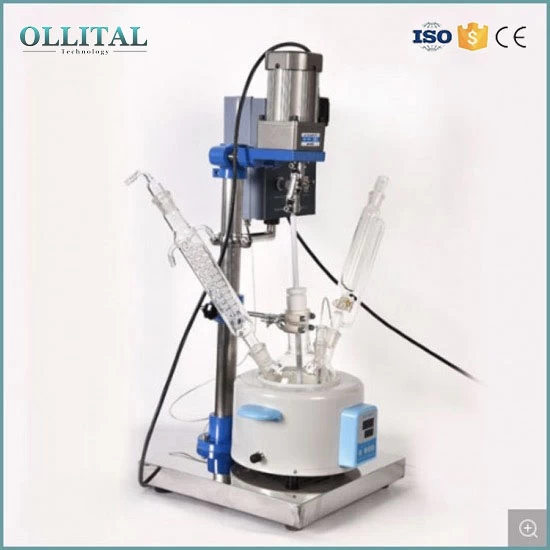

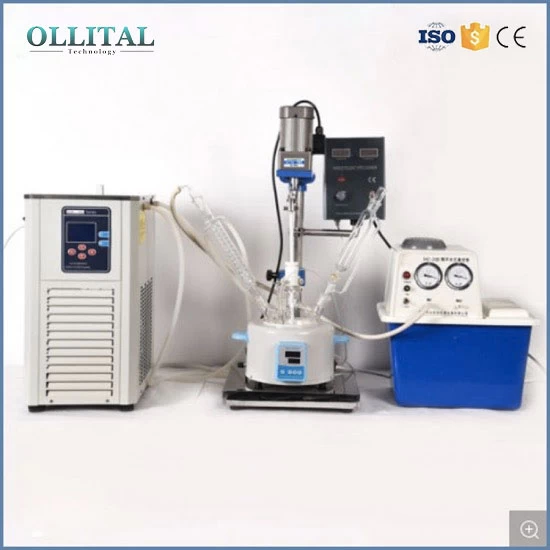

Laboratory single-layer glass Batch Reactor is an equipment which is a collaboration of vacuum state, distillation, reflux, stirring, oil/water heating, heating mantle. It can do all kinds of biochemical reactions and synthesis reactions at a constant temperature condition. It is also a colsed system on the whole.

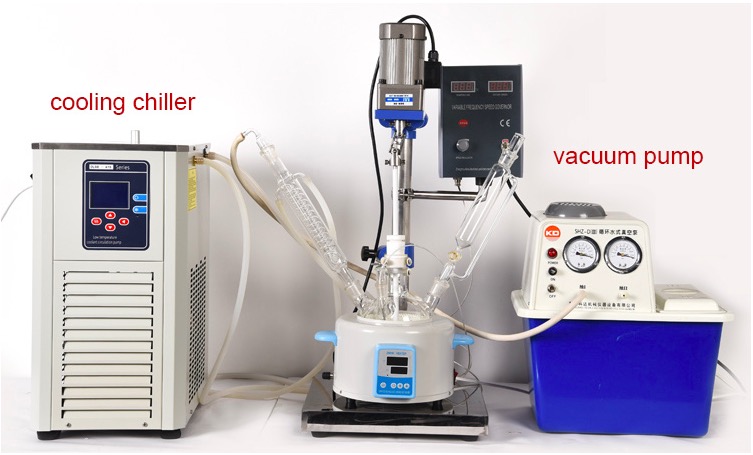

Circulating water vacuum pump can pump into the reactor sorts of liquids and gases. The reflux or distillation is possible under different temperature state.
|
Model NO.
|
OLT-RK-2
|
Tower Reactor
Type
|
Packed Tower
Reactor
|
|
Heating
|
Oil
Circulation Heating
|
Heat Transfer
Structure
|
Inner Coil
Type
|
|
Automatic
Grade
|
Automatic
|
Condition
|
New
|
|
Stirring
Power(W)
|
GM 60 1/3
|
Stirring Speed(Rpm)
|
0-1000
|
|
Motor
Torque(G/Cm)
|
2000
|
Capacity(L)
|
1L
|
|
Heating Power(Kw)
|
0.5
|
Heating Mantle
Power(Kw)
|
0.53
|
|
Temperature
Using Range(ºC)
|
Rt-250 Rt-350
|
Specification
|
1250*550*550mm
|
|
Transport Package
|
Wooden
Case or as Customer′s Requirements
|
Trademark
|
OLLITAL
|
The single layer glass reactor has water/oil heating bath or heating mantle itself. Water/oil bath temperature is digital display, which can meet constant temperature state, fast temp. rising, accurate controllers.1-50L is circular and more than 50L is cylinder. After heating we can add the cooling coil in the tank to cool the material in short time.
1.High borosilicate glass with nice physical-chemical properties; experiment temperature -100 to 400 degree C; Resistant to strong acidic properties of materials; only touching with glass parts & PTFE, no cross-contamination.
2.Precision Mechanical seal stirring to keep high vacuum degree.
3.Glass(PTFE)discharge valve, no-dead angle mixing, fast no residue discharge.

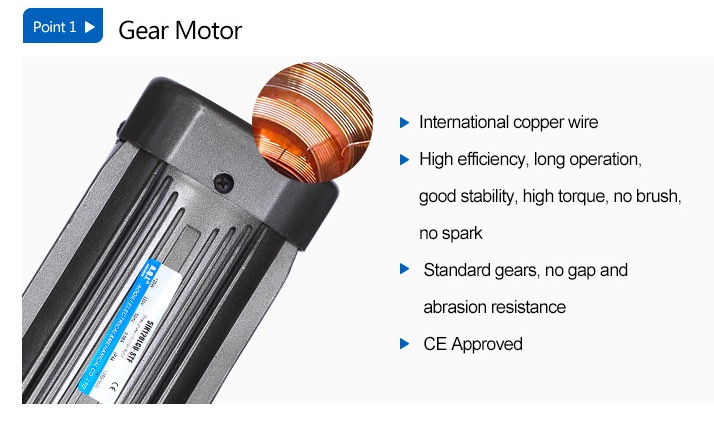

4.Frequency control speed gear motor, smooth running,high torque, automatic booster , no spark, noise free, long life.
5.SUS frame and cast aluminum material kettle body support, simple as well as strong; stable structure

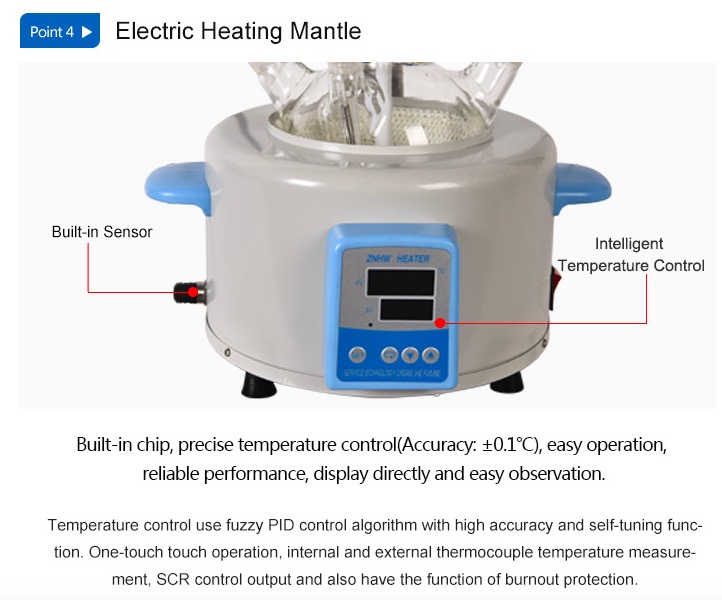

6.Circulating water/oil bath, heating mantle can supply the heating origin; Cooling mode machine:cool chiller, convenient and practical
7.Scientific & innovative structure, practical, strong.
Heating principle:
The heating coil in the tank heat the transfer medium-water or oil directly,(heating mantle heat the body kettle). Then the hot water or oil pass its hot energy to material in the kettle and stirring at the same time.
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping
