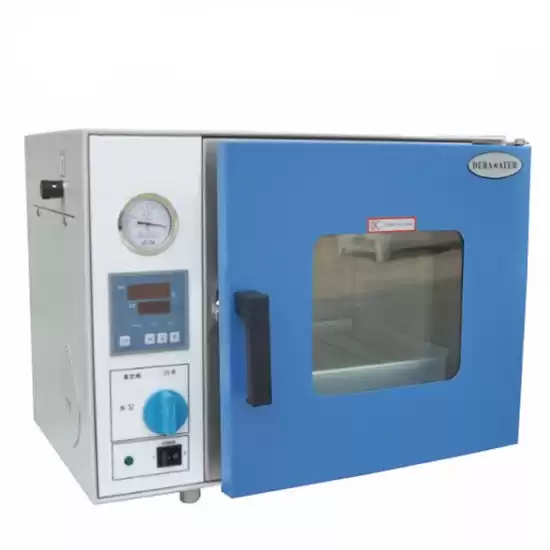

Laboratory 25L 200C Vacuum Oven (12x12x11" ) With Digital Temperature Controller
TMAX-JK-DZF-6020 is a middle size vacuum oven with max working temperature 200°C and 25 Liter capacity. The oven adopts heat radiant wall system providing optimal uniformity and conserves chamber space for drying, curing, vacuum embedding, and plating applications.
SPECIFICATIONS:
|
Model
|
6052
|
6210
|
6090
|
6250
|
6050
|
6051
|
6021
|
6020
|
6030A
Special for chemistriy
|
6030B/6050B
Special for chemistriy
|
|
Electrical Requirements
|
|
220V 50Hz
|
380V
50Hz
|
220V 50Hz
|
|
Input Power
|
|
2100W
|
1400W
|
3000W
|
1400W
|
1400W
|
500W
|
500W
|
500W
|
400W/700W
|
|
Temperature Range
|
RT
|
RT+10~250℃
|
RT+10~200℃
|
RT+10~250℃
|
RT+10~65℃
|
|
Temperature
Control/Stability
|
|
0.1℃/±0.5℃
|
|
Vacuum Degree
|
133Pa
|
|
Ambient Temperature
|
+5~40℃
|
|
Interior Dimension
(mm)W*D*H
|
415*370*345
|
560*640*600
|
450*450*450
|
700*600*600
|
415*370*345
|
300*300*275
|
320*320*300
|
320*320*300
415*370*345
|
|
Overall Dimension
|
720*525*535
|
720*820*1750
|
615*590*1470
|
1050*760*910
|
720*525*535
|
580*450*450
|
630*510*460
|
610*510*490
710*560*550
|
|
shelves
|
2(pcs)
|
3(pcs)
|
2(pcs)
|
3(pcs)
|
2(pcs)
|
1(pcs)
|
1(pcs)
|
1/2 (pcs)
|
|
Chamber Material
|
Stainless
|
Rolled sheet
|
Stainless
|
|
Chamber and Door
|
1. The chamber is structured with stainless steel and welded to bracing pieces.
2. The inner Chamber size: 300 mm x 300 mm x 275 mm (12 x 12 x 11", 25 Liter)
3. A good vacuum sealing is achieved by the silicone gasket and the positive latch door.
4. The double layers observation window consists of 1/2" tempered glass and transparent polycarbonate shield.
5. Two stainless steel shelves are included to facilitate processing efficiency.
|
|
Vacuum Pump
(optional)
|
Ultimate Vacuum Level: 1000 millitorrs.
|
|
Working Voltage
|
AC 110 - 240 V 50/60 Hz
|
|
Input Power
|
500W
|
|
Working Temperature
|
RT+10 ~ 200°C for the continuous use
|
|
Temperature Controller
|
1. Single point temperature setting
2. Built-in over-temperature protection
3. PID precise temperature control
4. Temperature control accuracy: +/-0.1°C
5. Temperature uniformity: +/-5°C @ 100°C, 25" Hg at center 6"x6" area only
|
|
Fittings
|
This oven comes with a KF-25 vacuum connector which allows you set up a quick connection to the vacuum pump.
|
|
Compliance
|
CE Certified
|
|
Warranty
|
One years limited warranty with lifetime technical support
|
|
Attention
|
1. It's normal that the SS chamber wall will slightly deform and loose its shine during high-temperature operation. However, this would not affect any functionality.
2. Please do not place the sample on the chamber bottom directly.
|
