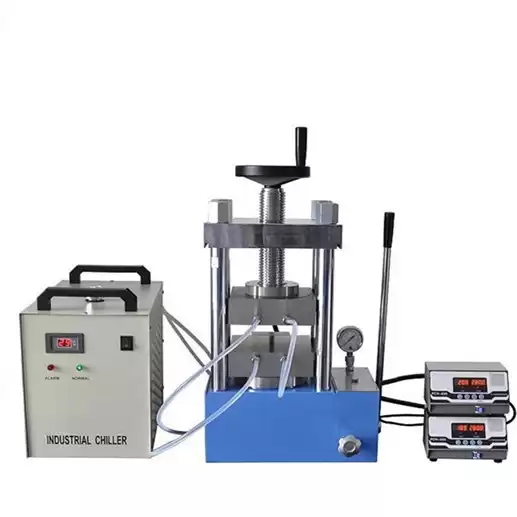

Laboratory 300°C 30T Lamitating Hot Press
Features
The maximum temperature of the double-plate hot press can reach 300℃ or 500℃, and the thickness of the pressed film is 50um-500um.
It is suitable for the study of polymer materials and other thin film materials, and can be used as a small plate vulcanizer.
It is suitable for rubber, plastics, leather, chemical industry, pigments, electronics, electrical appliances, textiles, hardware and other fields.
It is a matching equipment for engineering technicians of colleges and institutes to carry out spectral detection and qualitative analysis. The machine can be used as a multi-purpose machine with suitable dies. It can be used as an ordinary manual powder tablet press. At the same time, it can also be used as a press in other work situations where the corresponding pressure is required. It can also be used as a press to test the pressure resistance of various objects and so on.
Technical Parameter
|
Product Name
|
Lab Hot Press Machine
|
|
Module
|
TMAX-RT-600D
|
|
Pressure range
|
0-30T(0-34MPa)
|
|
Piston diameter
|
φ150mm Chrome plating cylinder
|
|
Standard pressure gauge type
|
Indicator/pointer type, Ton and Mpa double-scale display
|
|
Optional pressure gauge
|
Digital display
0.00-40.00 MPa, accuracy 0.01 MPa
|
|
Pressurization method
|
manually pressurization
|
|
Temperature controller
|
Dual PLC programmed temperature controller
|
|
Temperature control range
|
RT-600.0℃
|
|
Heating temperature of die
|
RT-300.0℃
(can be customized to 500℃ high temperature die)
|
|
Temperature control accuracy
|
0.1℃
|
|
Insulation plate
|
Imported insulation plate
|
|
Cooling mode
|
Water cooling (water cooler is optional)
|
|
Overall structure
|
Integral structure patented technology, no sealed connection of equipment, reduce oil leakage point
|
|
Heating die size
|
Double Heating Plate, 180 x 180mm or 200 x 200mm
|
|
Power supply power
|
220V/1000W
|
|
Main machine dimensions
|
405 x 260 x 525mm (excluding optional parts)
|
|
Overall dimensions
|
970 x 470 x 525mm
|
|
Machine weight
|
About 180kg
|
|
Note
|
Workspace can be increased according to customer's actual needs. Special hot press can be customized according to user needs
|
