Laboratory Battery Edge Hot Machine
This edge hotting machineis used forlithium pouch cell/Lithium polymer cell Edge hot shapingafter edge folding.
Main features:
1 Imported temperature controller can control the temperature of heating plate accurately, temperature can be arbitrarily adjusted from room temperature to 250 degrees.
2 Unique safety protection, prevent scald design, the temperature of the ironing table can be adjusted by the temperature controller panel button settings.
3 The hot edge plate is made of copper material, having many advantages about good heat transfer ,save power consumption, improve work efficiency.
4 Can be applied to different specifications of the battery.
5 Small size, simple operation.
|
Model
|
Lab Edge Hotting Machine TMAX-TP200
|
|
Hot platform size
|
(length)300mm*(width)150mm
|
|
Temperature
|
0～250℃ temperature adjustable digital display
|
|
Heating tube
|
500W
|
|
Current Source
|
AV200V/50HZ
|
|
Power
|
1.5KW
|
|
Dimension (L*W*H)
|
380*200*165mm
|
|
Weight
|
20KG
|
|
Heating mechanism
|
A copper heating work station
|
|
Electrical and standard parts
|
Temperature controller:0mron
Solid state relay:0mron
|

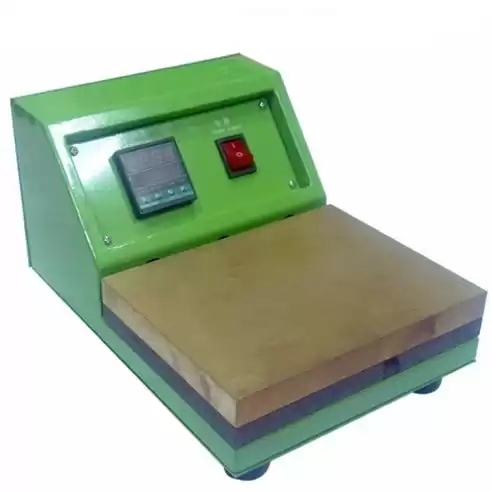

PRODUCT DISPLAY
STANDARD PACKAGE LIST
|
Item
|
Qty
|
|
Battery edgehotting machine
|
1 set
|
|
Power line (according to your requirements )
|
1 pcs
|
|
Foot pedal
|
1 pcs
|
|
socket head wrench
|
1 set
|
|
Operating manual (English)
|
1 book
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
