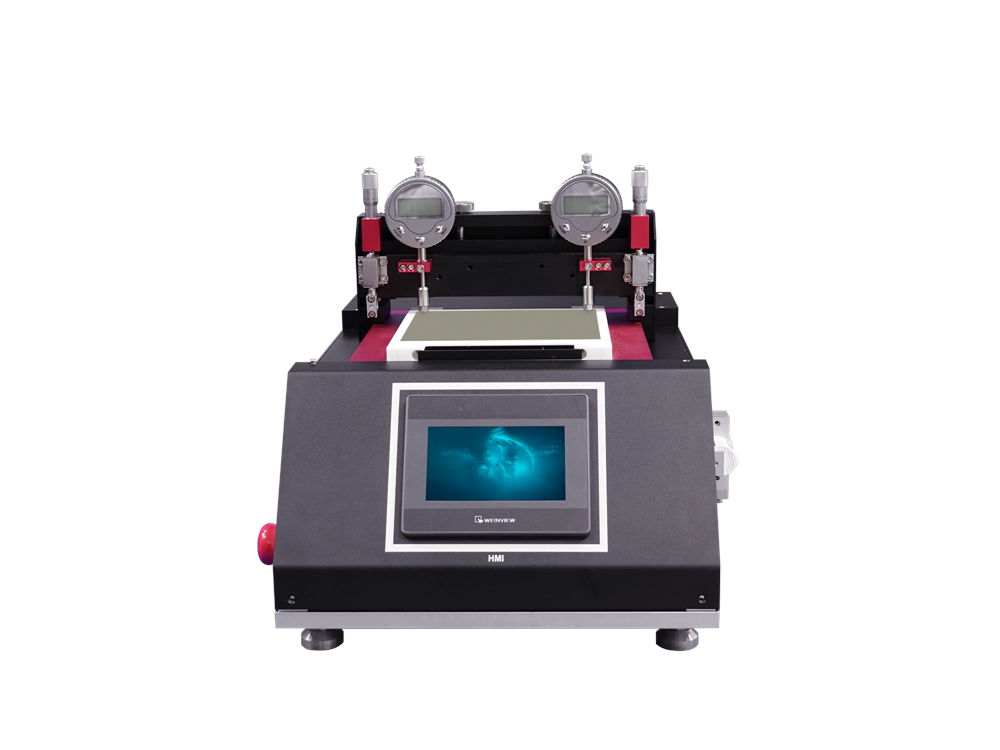

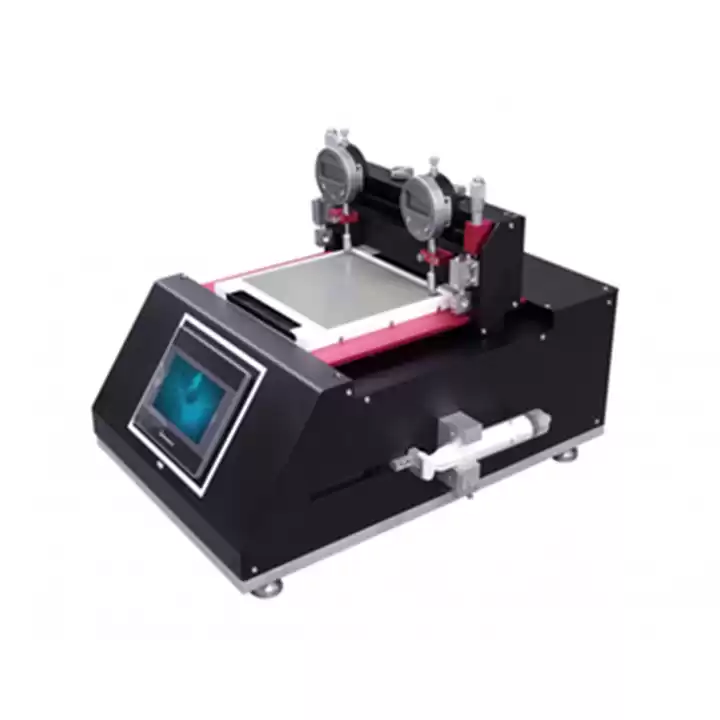

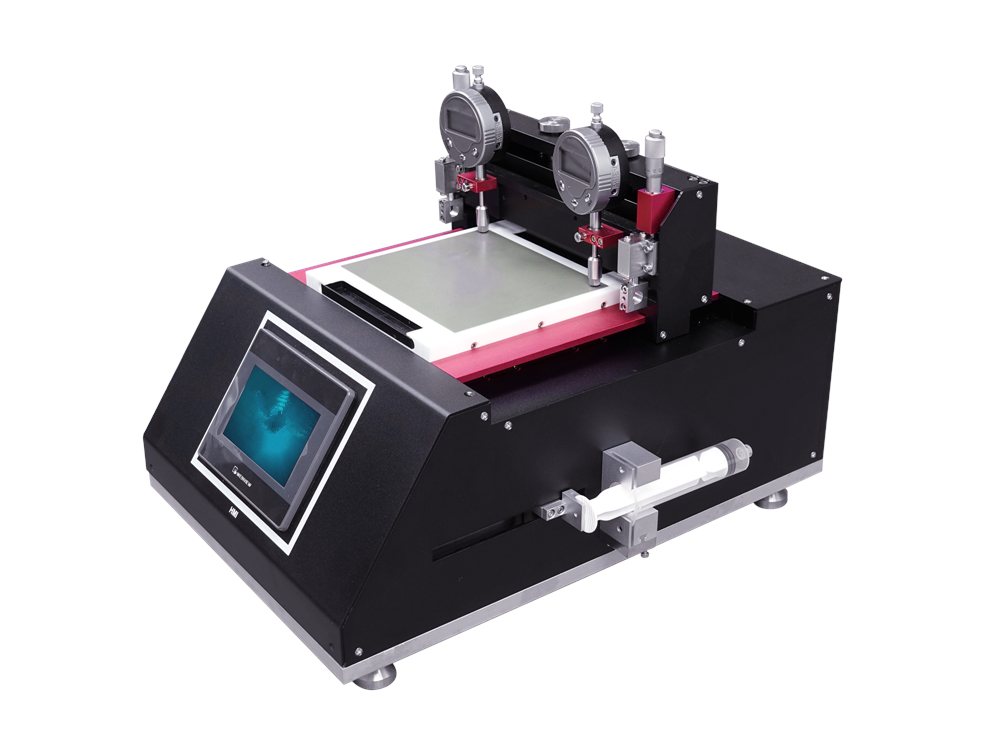

Laboratory Desktop Precise Flat Slot Die Coater With Heating Vacuum Chunk

TMAX-PD100 is a precision slot die coater with a 100 mm width coating head. It is an excellent tool to research film coating for OLED, perovskite solar cells, and fuel cell proton exchange membrane. Choosing the best bar coater from our company.

SPECIFICATIONS

Working Power	110V - 240V AC 50/60Hz for worldwide use 500W The machine has 24VDC input and driving by 24VDC motor, which can be used under Ar atmosphere glovebox
Slot Died head	100 mm width slot die head capacity 50 mm and 25 mm width slot coating head is available at the extra cost Min. coating thickness: 5 microns (depended on slurry viscosity)
Syringe Pump	Built-in syringe pump with the variable speed  at the range from 0.01mm/s to 5.0 mm/s Three syringe containers are included with 10ml, 20ml, 30ml respectively
Micrometer Head	Two-micrometer heads are built-in travel rod of the coater to adjust the gap between slot die and substrate Digital micrometer head is available as an option at an extra cost
Tavel Speed & Length	Travel Speed: 1 - 10 mm/sec variable via touch screen control panel Max. Coating area: 100 mm W x 100 mm L
Heated Vacuum Chunk	1. Vacuum chuck made of aluminum alloy with the small hole 2. The small vacuum pump is built inside coater driven by 24DC motor 3. Vacuum chuck Area:  150mm (L) x 130mm (W) 4. Heating elements are installed inside chuck which can reach 120ºC Max. 5. Precision digital temperature controller with +/- 1ºC accuracy 6. One high temperature temped glass plate is put on the vacuum chuck, and substrate will be put on the top
Control Panel	4" color touch screen panel to set coating speed, heating temperature, and slurry pump speed
Product Dimensions	440mm L x 340mm W x 300mm H
Net Weight	26 kg
Shipping Weight	50 Kg

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
