Laboratory Digital Viscometer 10-200000cp Viscosity Testing Equipment
SPECIFICATIONS
The SNB-1ADigital display viscometeris widely used in solvent based adhesive, latex, biochemical products, cosmetics, paint, paint, ink, paper pulp, food, starch and other industries.
Thisviscometerhas testing range of 10-200000cp, with small quantity sample of18-20ml, it testing result can directly displayed on the digital screen without any calculating. English digital display is easy understand, it is with RS232 interface, can be connect with computer for date output.
|
Model
|
Digital display viscometer TOB-SNB-1A
|
|
Measuring range
|
10-200000cp
|
|
Sample quantity
|
20 ml
|
|
Measuring accuracy
(Newtonian liquid)
|
±1%
|
|
Standard rotor specification
|
21#/27#/28#/29# rotors
|
|
Rotation rate (RPM/min)
|
0.5/1/2/5/10/20/50
|
|
Dimension
|
300*300*450mm
|
|
Net weight
|
2kg (not including pedestal)
|
|
Package weight
|
7.4kg
|
|
Package size
|
480*250*400mm
|
|
Working temperature
|
5-35℃
|
|
Working humidity
|
≤80%
|
|
Source voltage
|
AC 100-230V 45-65HZ
|
STANDARD PACKAGE LIST
|
Item
|
Qty
|
|
Digital display viscometer
|
1 set
|
|
Power line (according to your requirements )
|
1 pcs
|
|

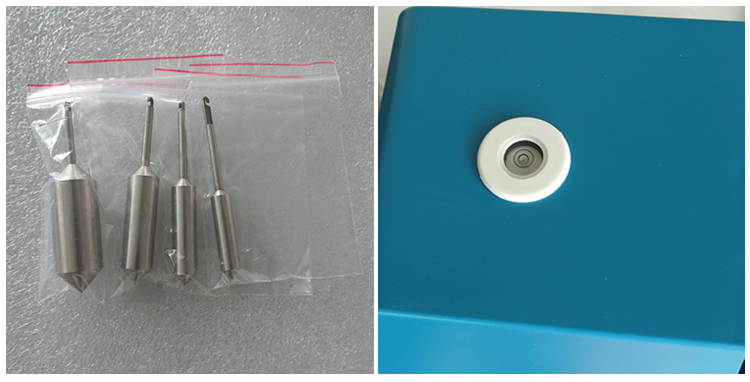

Standard rotor 21#/27#/28#/29#
|
Total 4 pcs
|
|
Operating manual (English)
|
1 book
|

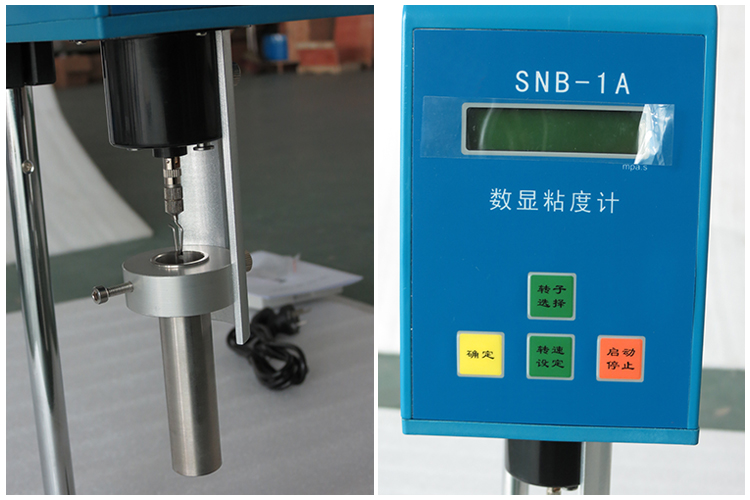

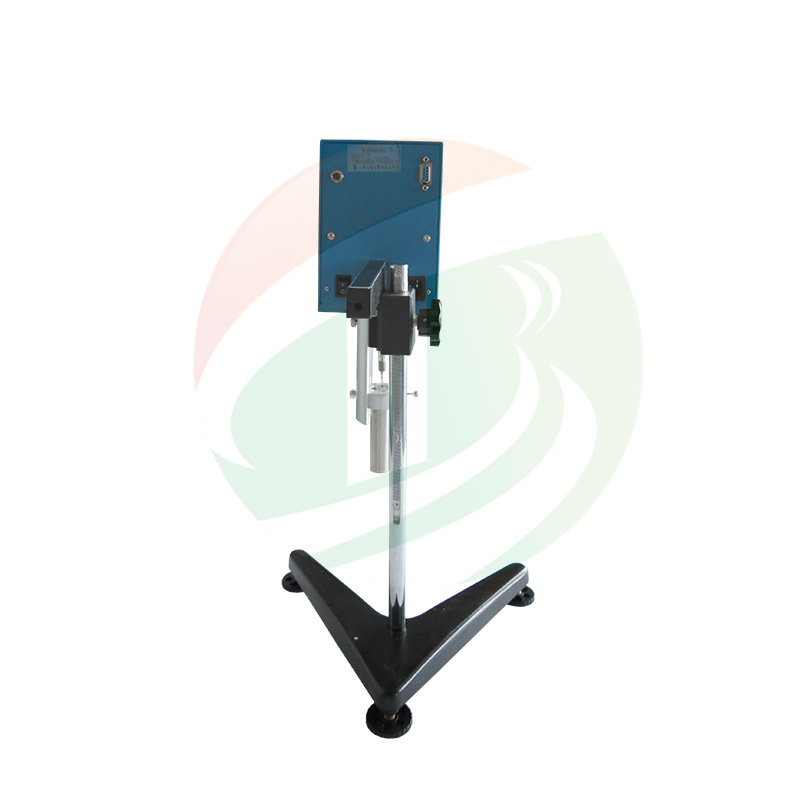

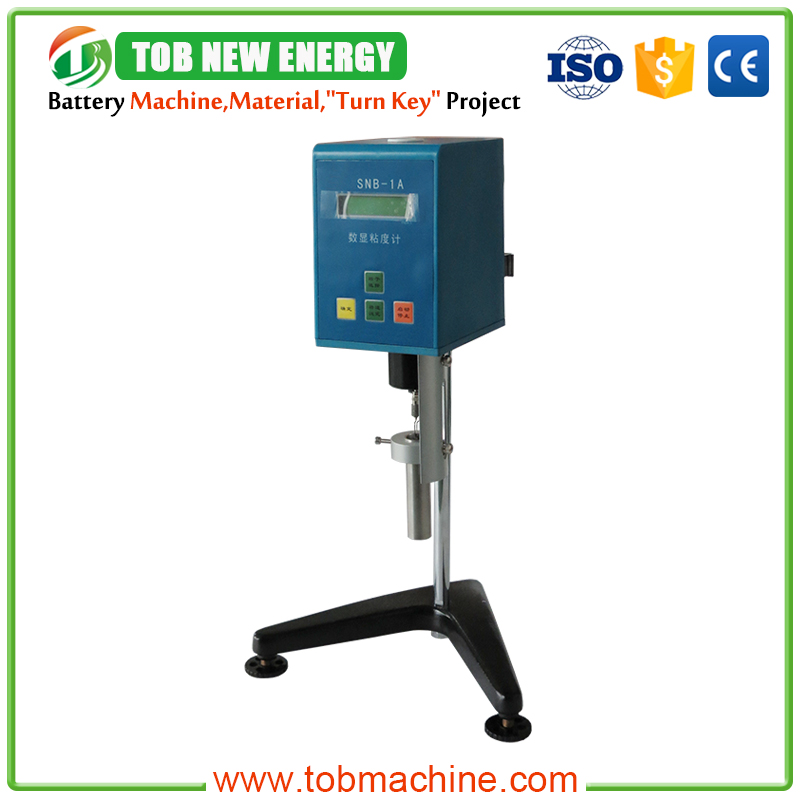

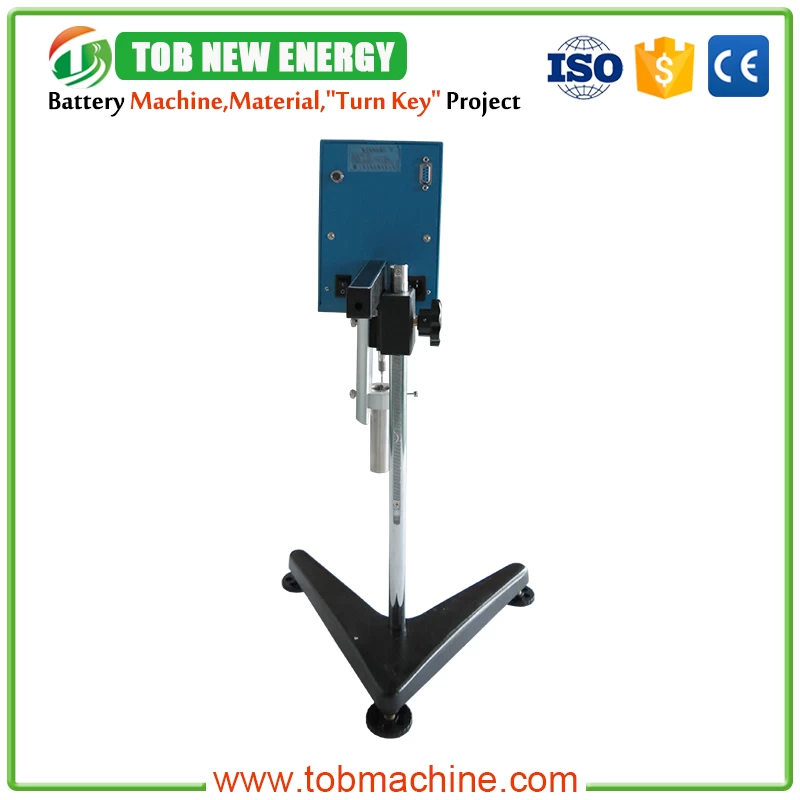

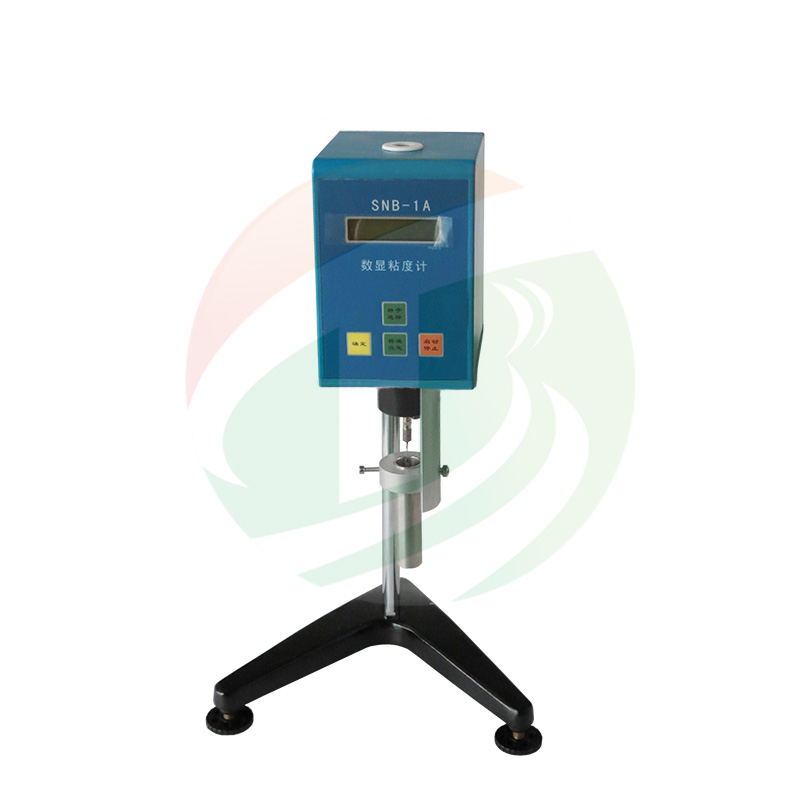

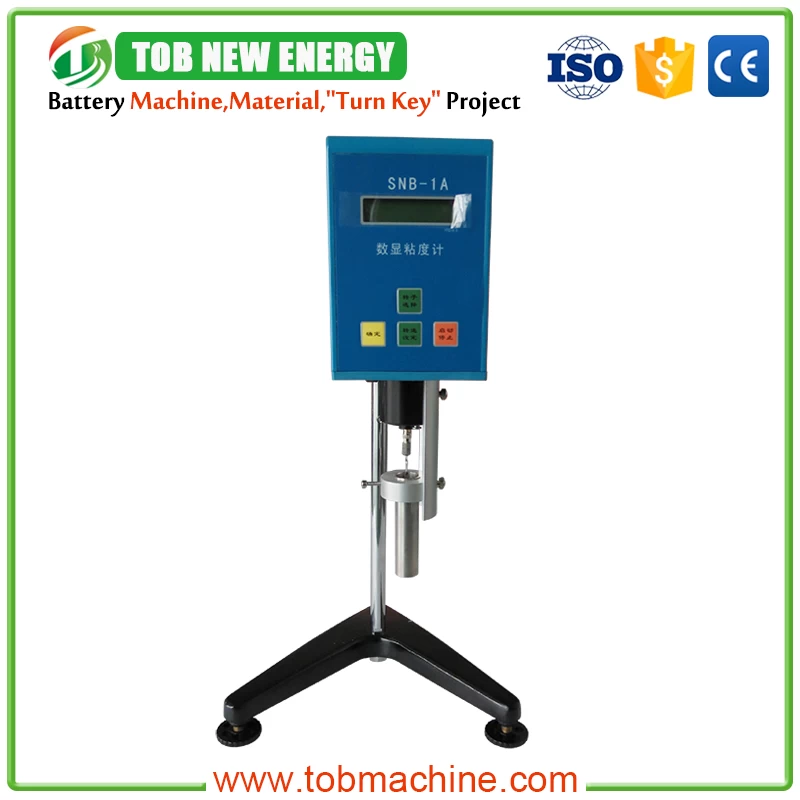

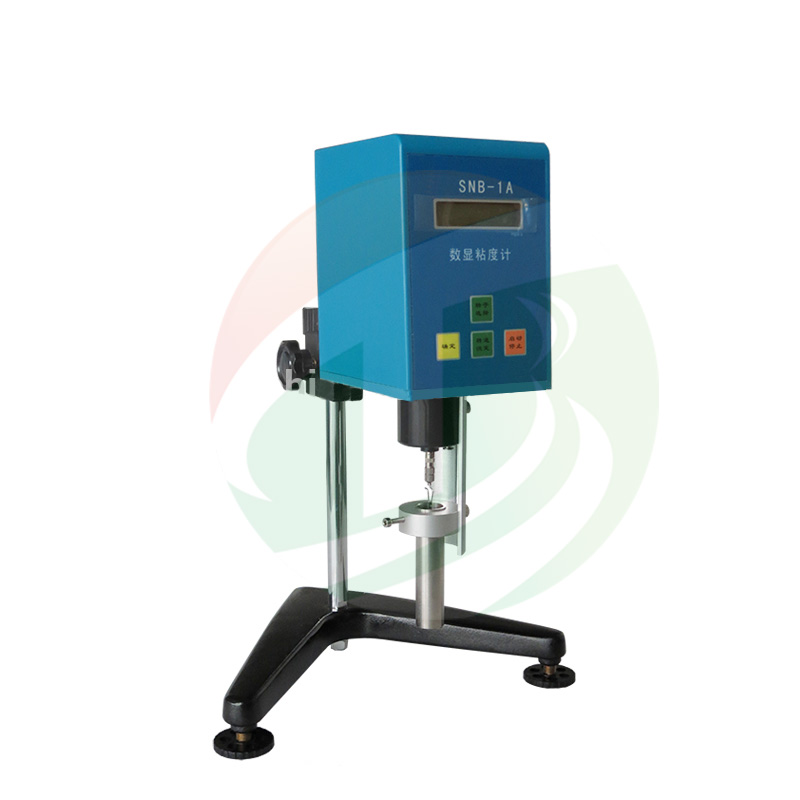

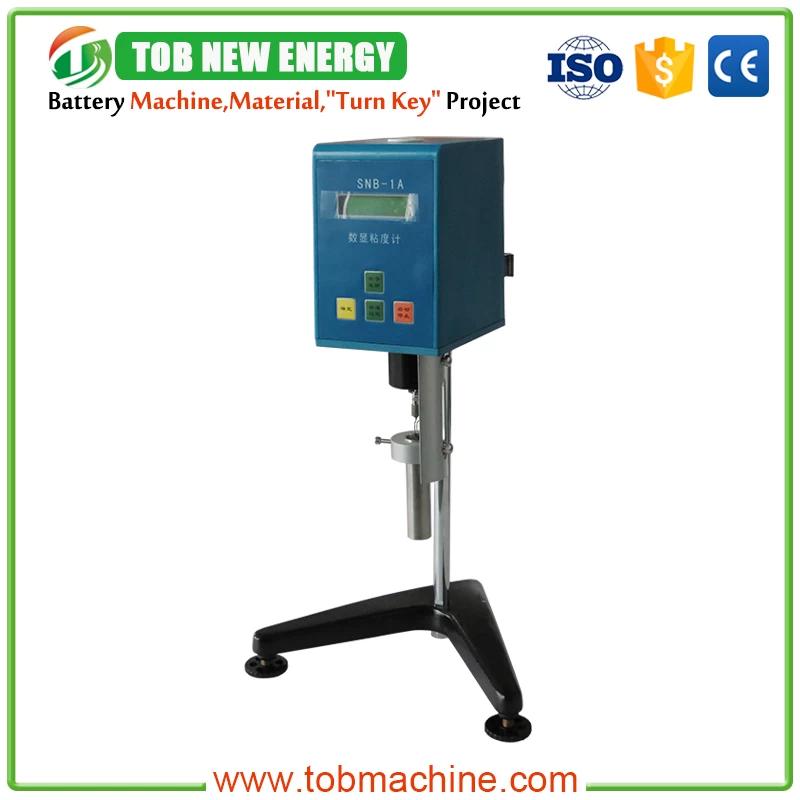

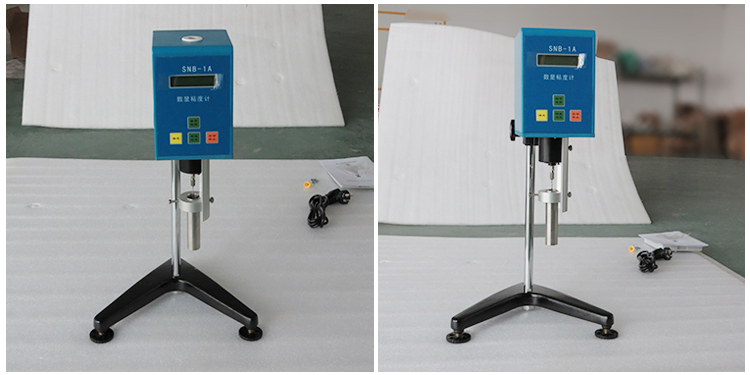

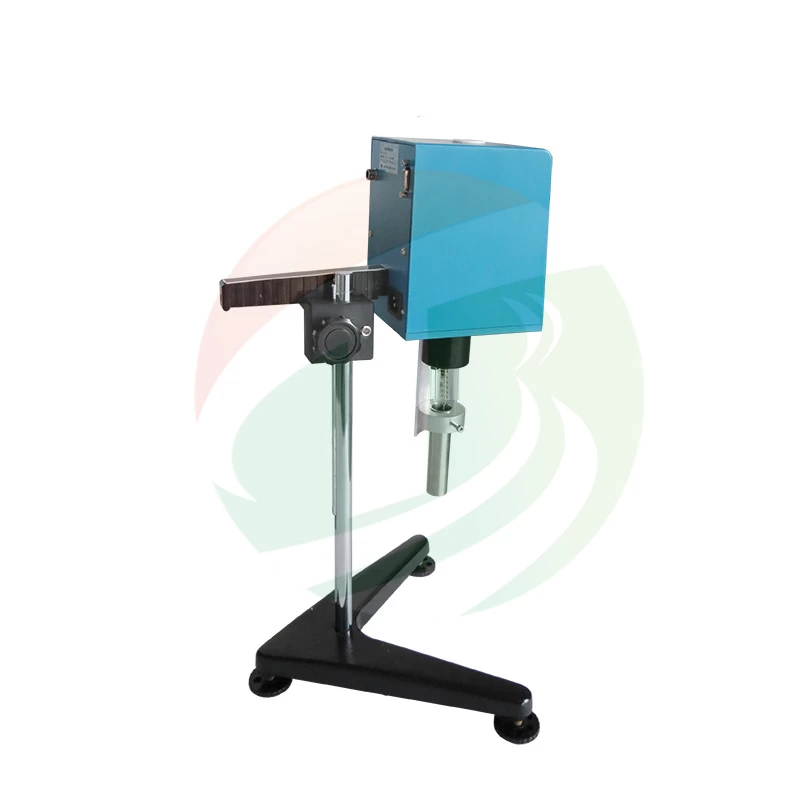

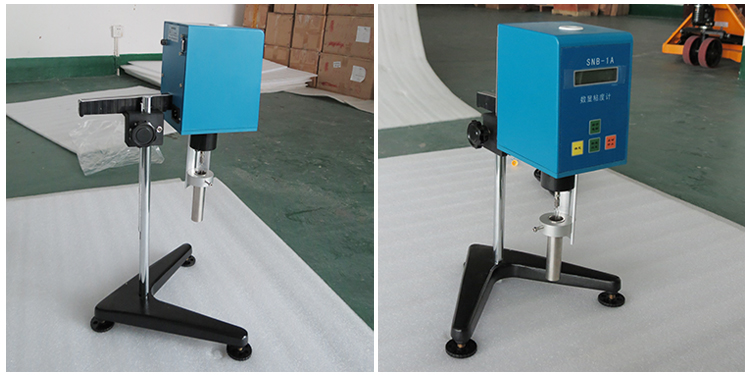

PRODUCT DISPLAY
COMPANY CERTIFICATE
CE CERTIFICATE
