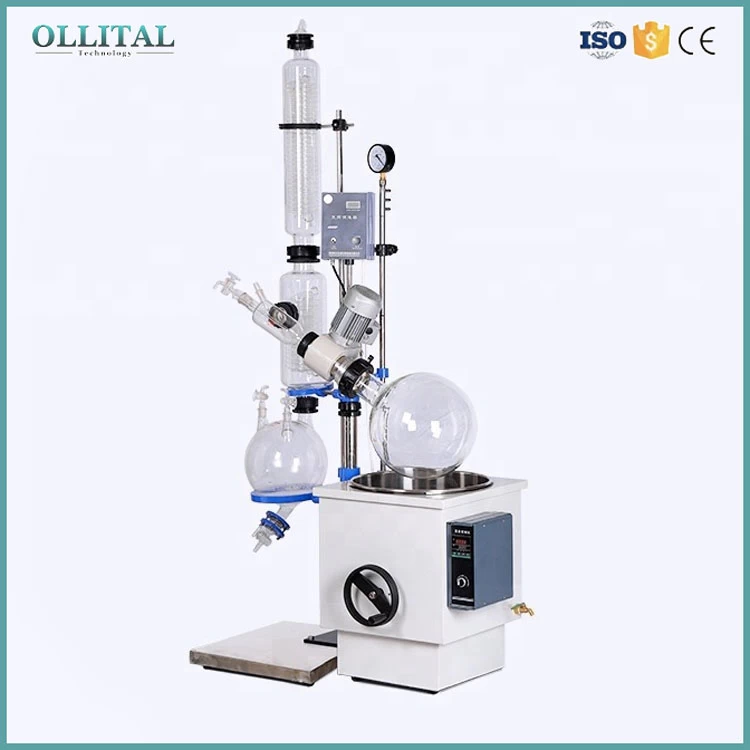

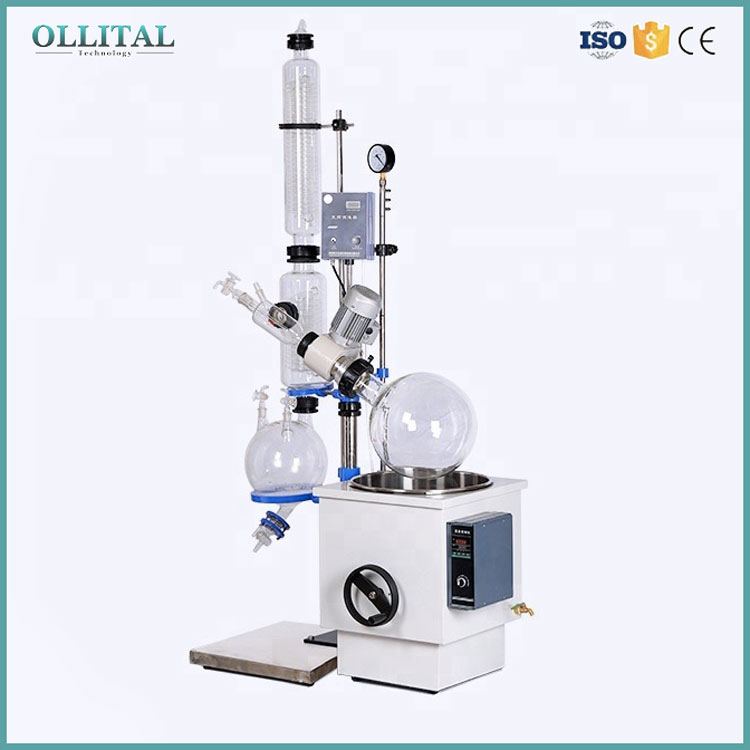

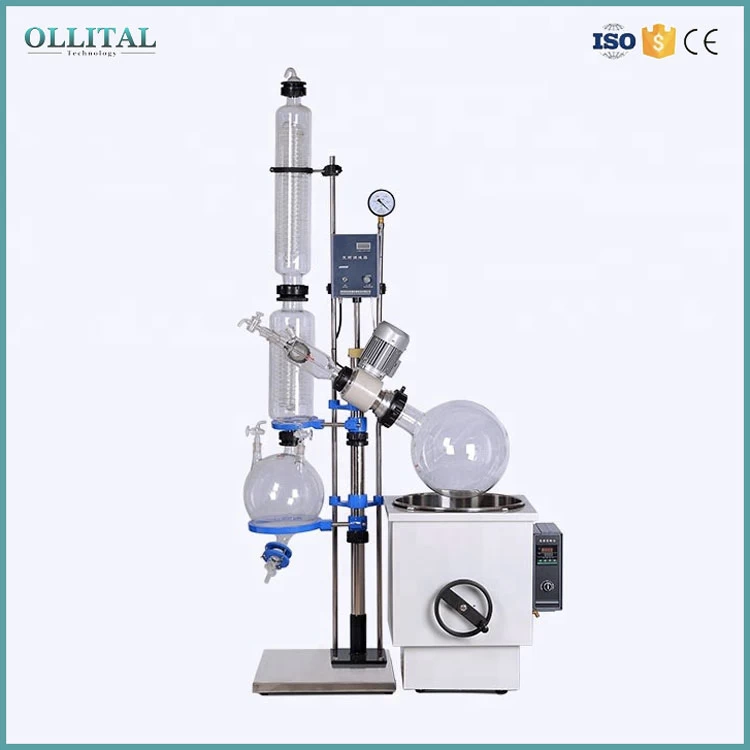

Laboratory rotary evaporator mainly used in pharmaceutical, chemical and biopharmaceutical industries concentrated, crystallization, drying, separation and dissolved coal recovery.
Characteristics:

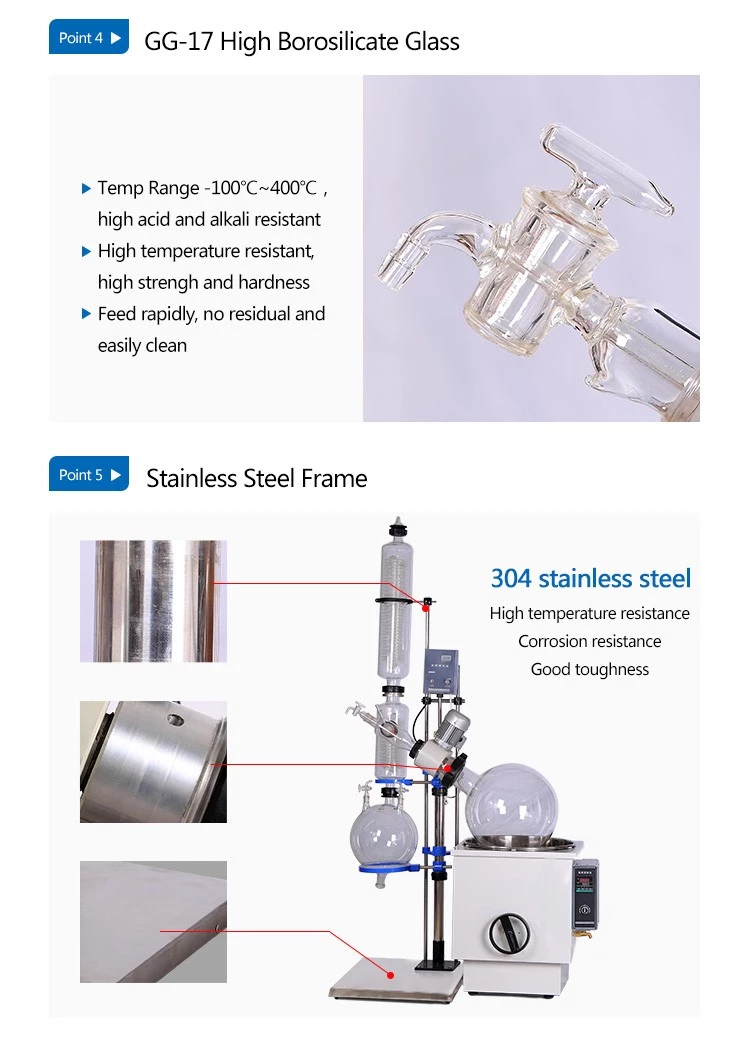

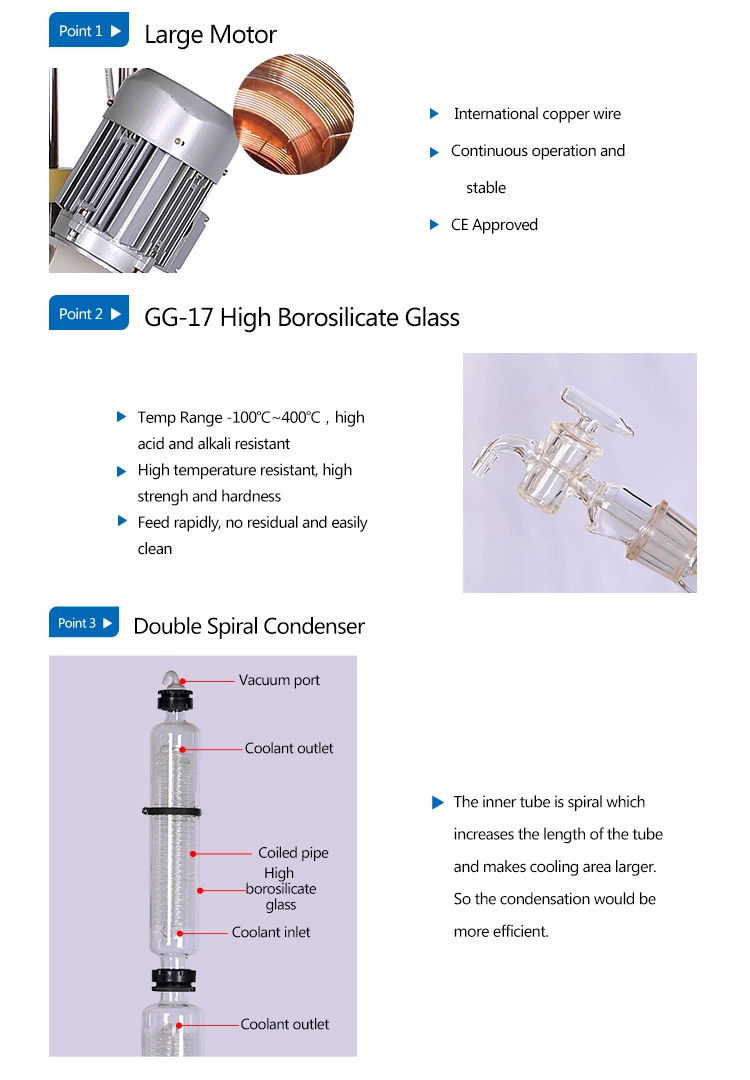

1.High-borosilicate glass (GG17) owns good chemical-physical properties.

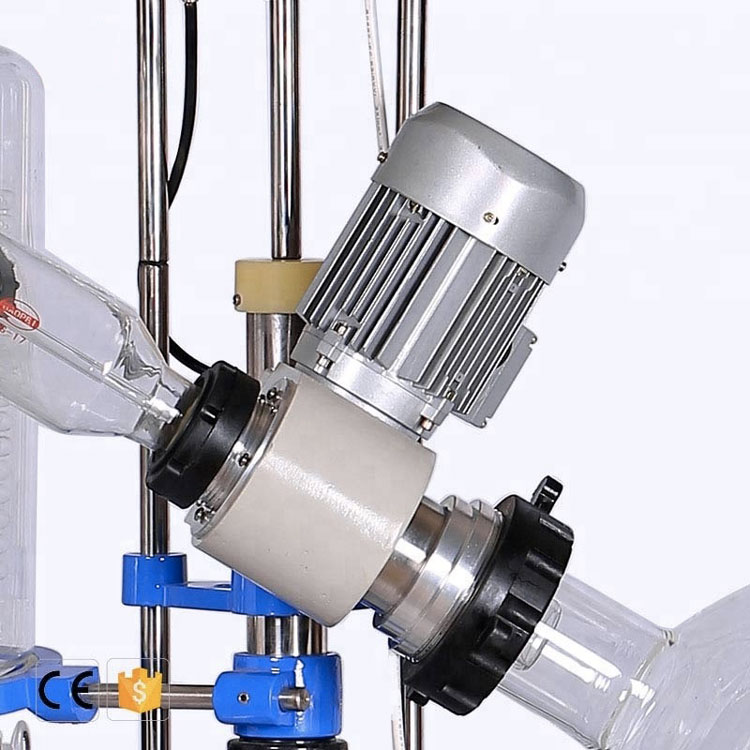

2.Converting-frequency stir, operating steady; Big Torque; No spark.
3.PTFE sealing components; unique designed to maintain market similar products can be the best vacuum (-0.098mpa so).
4.The smallest or PTFE no-dead angle discharge value after reaction solution can be more completely ruled out, without effusion.
5.Four kettle covers, big mouth design, simple and safe cleaning job.
6.Weather heating or cooling , all can customize based on clients’ different demands.
7. Science Structure, novelty, practical, artistic, leading domestic
|
Product Parameters
|
|
Model
|
OLT-RE-13
|
OLT-RE-14
|
OLT-RE-15
|
|
Evaporating Flask (L)
|
10
|
20
|
50
|
|

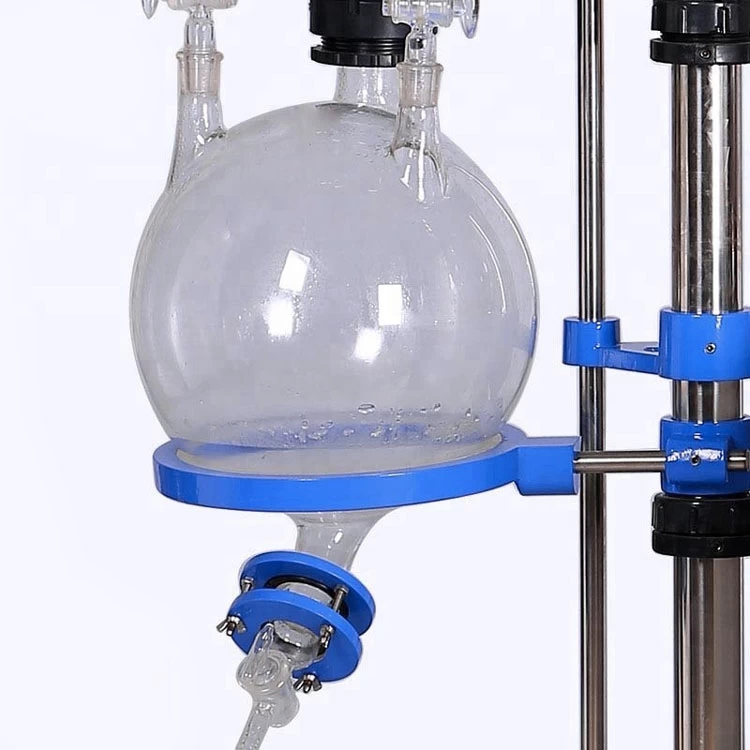

Receiving Flask (L)
|
5
|
10
|
20
|
|
Rotating Motor (W)
|
180
|
250
|
|
Rotating Speed (R/min)
|
0-120
|
0-90
|
|
Evaporation
Speed (L/H2O)
|
>3L/h
|
>5L/h
|
>9L/h
|
|
Condenser
Cooling Surface (sq.m.)
|
0.57
|
1
|
1.5
|
|
Vacuum Degree
|
0.098Mpa
|
|
Sealing Mode
|
PTFE Sealing System
|
|
Water Bath Configuration
|
Water Bath Lifting or Electric Hoist
|
|
Water(Oil) Bath Power(kw)
|
3
|
5
|
7/9
|
|
Temperature
Control Range
|
0-99(250)℃
|
|
Temp Fluctuation/Resolution
|
±1/1℃
|
|

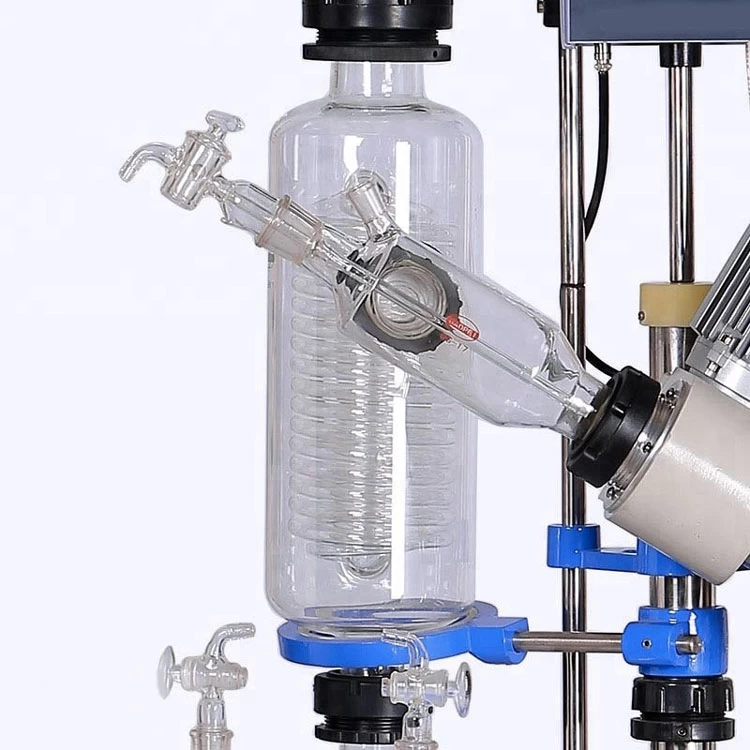

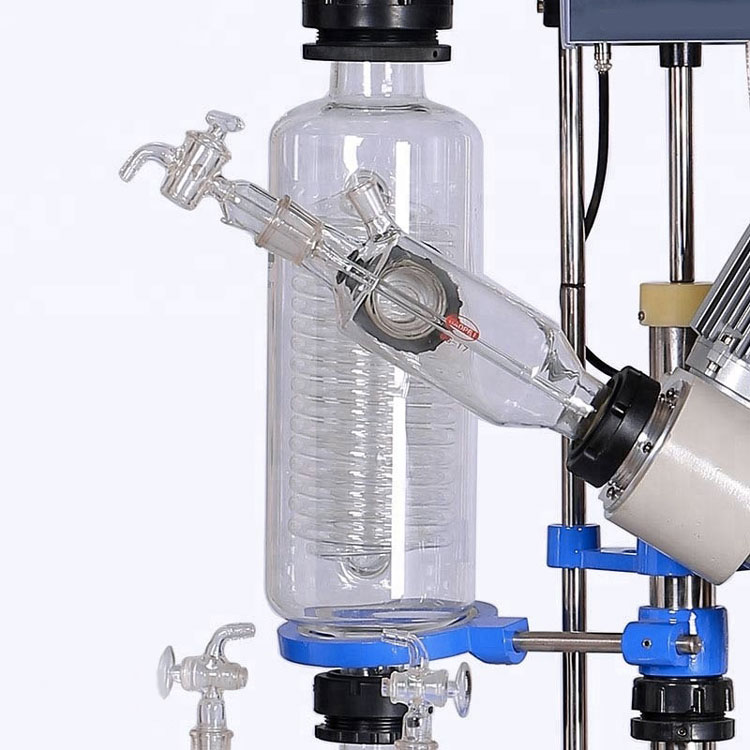

Condenser
|
Vertical Double Condenser
|
|
Voltage (V/Hz)
|
108V-220V 50/60
|
108V-220V 50/60 | 108V-380V 50/60
|
|
Note
|
Customized configuration is available.
|
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
