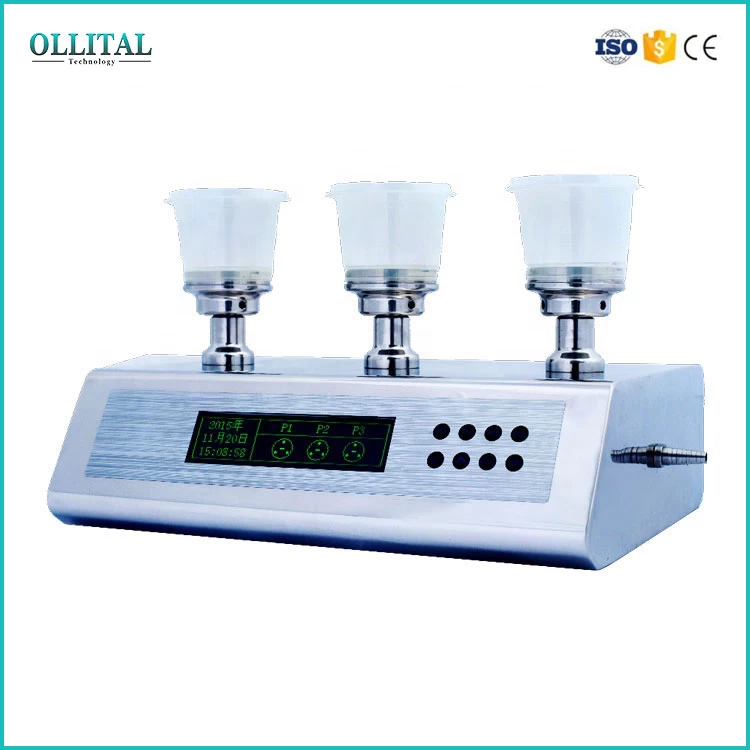

OLT-105 is designed and manufactured for the microbial limit test, it has integrated diaphragm pump which could directly drain. So, it doesn’t need Buchner funnel.
The customers could combine the S60 or F47 filtration funnels on the OLT-105 to a membrane filtration system which could perform the microbial enumeration analysis.
The analytical process is pressing the sample solutions through the membrane filtration funnels, the microorganisms will be withheld on the membrane. Then culture them and count the colonies.
It is ideal system for inspecting the microorganisms in the purified water and water for injection (WFI).
1.Filtration Funnels: S60 filtration unit or F47 funnel with Φ47mm disc membrane
2.Funnel capacity: 100ml
3.Power supply: AC 108V-220V/50Hz
4.Rated power: 50W
5.Pumping flow rate: ≥1200ml/min
6.Working Noise: ≤60dB(A)
7.Weight: 8Kgs (with PF47 heads) / 10Kgs (with PS60 heads)
8.Dimmensions (LxWxH): 40.5×23×12cm
1.With built-in diaphragm pump, no need Buchner funnel, less space occupation;
2.Start button is with indicator and it is easy to operate;
3.OLT-105 could fit two kinds of head which diameter is 60mm and 47mm;
4.It has three pump heads which could work synchronously or separately;
5.The pump heads could be easily removed and installed, and they can be steam sterilized at 121℃;
6.Pump heads could be quickly disinfected by fire flame，so that it is convenient for continuous test;
7. It is made of SUS304 with mirror polished, and it is easy for clean.
1.Pharmaceutical industry: the microbial limit test for purified water, WFI, APIs, oral liquid, tablets, capsules and biological products;
2.Disease control: the inspection of microorganism colonies and disease germ existed in drinking water and air conditioning condensed water;
3.Microorganism inspection for Food and beverage, mineral water and purified drinking water;
4.Chemicals: All kinds of solutions which need microorganism test.
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
