Laboratory Equipment CE Approved Manual Rotary Microtome
|
Product Name
|
Laboratory Equipment CE Approved Manual Rotary Microtome
|
|
Model No
|
RD-465
|
|
Section Thickness Setting Range
|
0 - 100μm
0 - 2μm increment 0.5μm
2 - 10μm increment 1μm
10 - 20μm increment 2μm
20 - 100μm increment 5μm
|
|
Trimming Thickness Setting Range
|
0 - 600μm
1 - 10μm increment 1μm
10 - 20μm increment 2μm
20 - 100μm increment 10μm
100 - 600μm increment 50μm
|
|

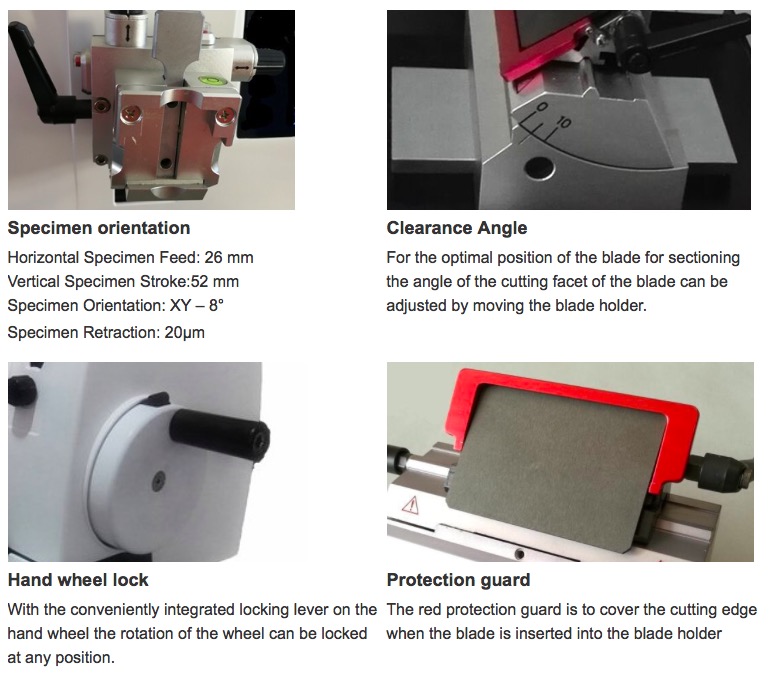

Total Horizontal Specimen Feed
|
26mm
|
|
Vertical Specimen Stroke
|
52mm
|
|
Specimen Retraction
|
20μm
|
|

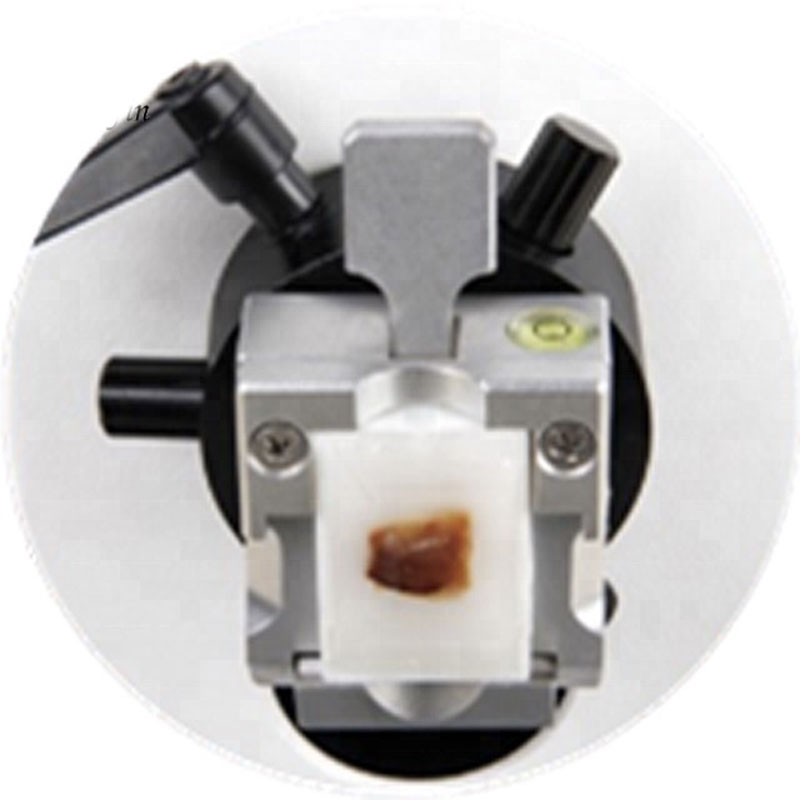

Specimen Clamp Rotation
|
at any angle within 360 degrees
|
|
Specimen Orientation
|
XY – 8°
|
|
Minimum Setting of Sectioning Thickness
|
0.5μm
|
|
Maximum Specimen Size
|
50×50mm
|
|
Precision Error
|
±1%
|
|
Working Voltage
|
AC 220V±10% 50Hz (standard model) / AC110V±10% 60HZ
|
|
Power
|
150W
|
|
Dimensions
|
600×495×307 mm (W×D×H)
|
|
Net weight
|
32kg
|

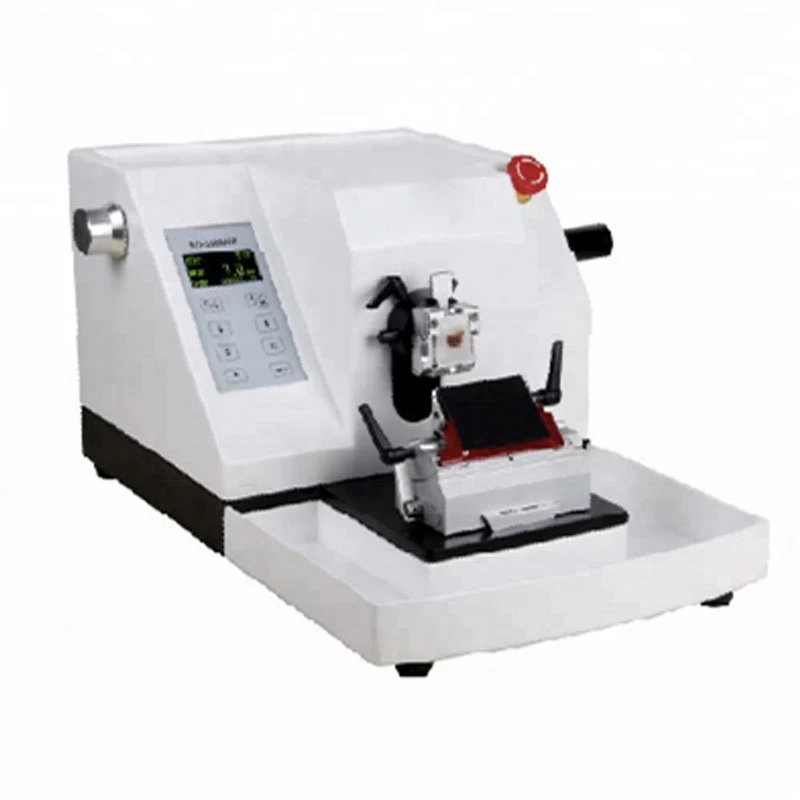

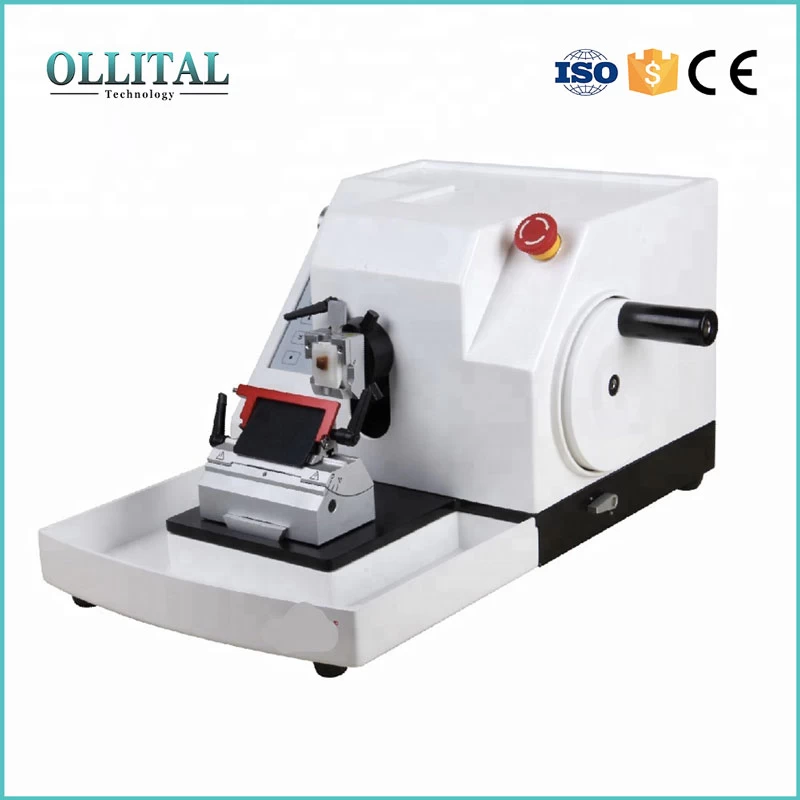

RD-465 microtome this machine uses a streamlined design, with advanced features, stable and reliable performance and easy of use .Uses imported cross-roller guide rails and a screw motion mechanism to ensure precision resulting in superior sectioning performance.LCD screen shows section and trimming thickness, as well as number of sections.It's prefectly suited for those who expect precision sectioning.

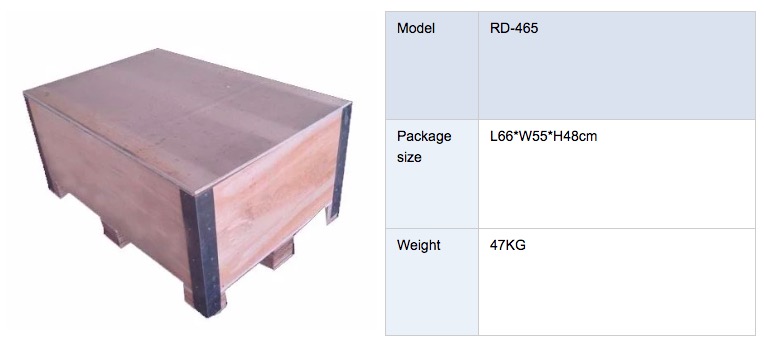

Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
