Laboratory Four Drums Electrical Round Vacuum Drying Oven
1 The Round Vacuum Oven is dedicated to the Li-ion battery electrode drying process for producing. The vacuum oven working chamber is equipped with cylindrical cantilever, can hang the whole roll electrode, with maximum bearing weight up to 380 kg.

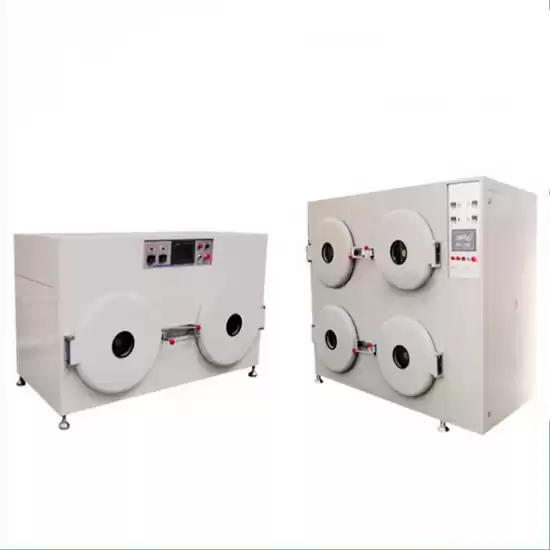

2 The TMAX-JK-ZKHX-AR4 Round vacuum oven is equipped with four drums, you can also choose single drum, two drum according the battery production line output.
|
Model
|
Four Drum Round Vacuum Oven TMAX-JK-ZKHX-AR4
|
|
Working Voltage
|
3phase, 380V
|
|
Max. Power Consumption
|
4.5KW*4
|
|
Temperature range
|
RT-150℃ For battery material and electrode baking, with accuracy≤±1 ℃
|
|
Vacuum degree
|
0~-0.098Mpa, Can maintain limited vacuum degree ≥96% after 24hours
|
|
Working chamber size
|
Dia 550*750, can customized according request
|
|
Product Dimensions
(H*W*D)
|
1850*2280*1000mm
|
|
Air supply
|
Vacuum :-0.095~-0.1Mpa
Compressed air :0.4~0.5Mpa
Dry air :0.1~0.2Mpa
|
|
Temperature increase speed
|
From RT 25℃ to 80℃ need about 25min
|
|
Heating mode
|
Electric heating
|
|
Working chamber material
|
SUS stainless steel
|
|
Warranty
|
One year limited warranty with lifetime support
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
