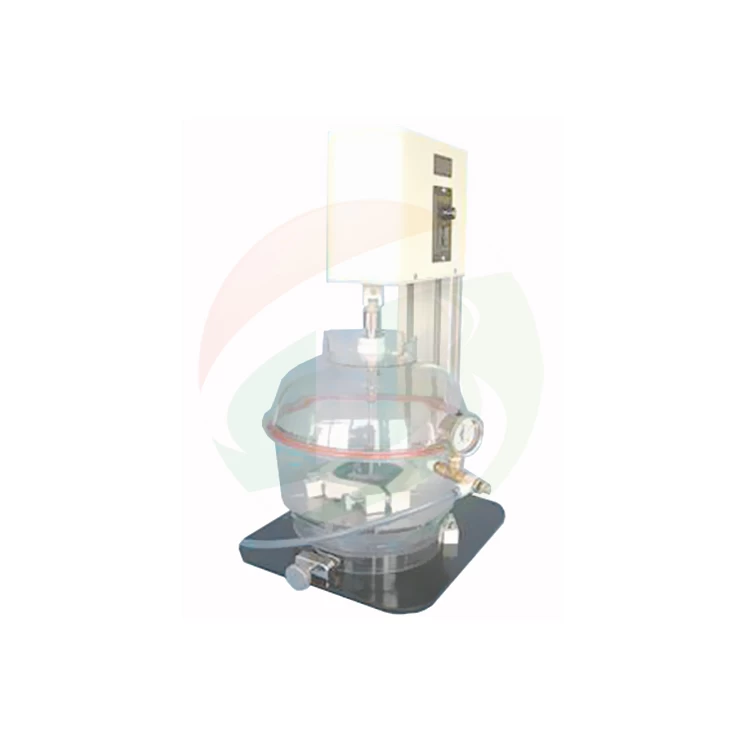

Laboratory Vacuum Mixer With Heated Function 50-1000ml
SPECIFICATION
TOB-689Small Vacuum mixeris mainly used for medicine, Bonding agent, spices, cosmetics, paint, pigment, additives and other types of sticky mucilage mixing under the condition of vacuum stirring, generated by the bubbles can be taken out at any time.At the same time provide constant temperature electric heating function,, effectively improve the material viscosity, and effectively eliminate viscous liquid left in tiny bubbles.Thisvacuum mixeris widely used in scientific research, medicine, fine chemical, electronic, new energy and other industries.
|
Model
|
Heated Vacuum Mixer TOB-689
|
|
Vacuum degree
|
－0.1Mpa
|
|
Mixing capacity
|
50-1000ml
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Advantages
|
1 Mixing jar adopts Injection molding of polycarbonate material,
Affordable vacuum radical changes.Light weight, good transparency,
can be directly observe material mixing state.
2 Vacuum tank side is equipped with vacuum gauge
3 Between nakedness on vacuum tank with high quality silicone rubber ring seal,
do not need to seal oil.
4 Mixing speed is adjustable
|
|
Temperature
|
RT-200℃ Adjustable
|
|
Source voltage
|
AC110V/220V, Customized
|
|
Dimension(L*W*H)
|
275*250*320mm
|
|
Net weight
|
About 15kg
|
|
Model
|
Speed(rpm)
|
Torque with high speed
|
Torque with lower speed
|
|
40W
|
90-1300
|
3.0kg.cm/1200rpm
|
0.6kg.cm/90rpm
|
|
40W
|
30-433
|
9.0kg.cm/400rpm
|
1.8kg.cm/30rpm
|
|
40W
|
12-173
|
22.5kg.cm/160rpm
|
4.5kg.cm/12rpm
|
|
60W
|
90-1300
|
5.0kg.cm/1200rpm
|
1.4kg.cm/90rpm
|
|
60W
|
30-433
|
18.0kg.cm/400rpm
|
4.2kg.cm/30rpm
|
|
60W
|
12-173
|
37.5kg.cm/160rpm
|
10.5kg.cm/12rpm
|
|
90W
|
90-1300
|
7.1kg.cm/1200rpm
|
2.3kg.cm/90rpm
|
|
90W
|
30-433
|
21.3kg.cm/333rpm
|
6.9kg.cm/25rpm
|
|
90W
|
12-173
|
53.25kg.cm/160rpm
|
17.25kg.cm/12rpm
|
