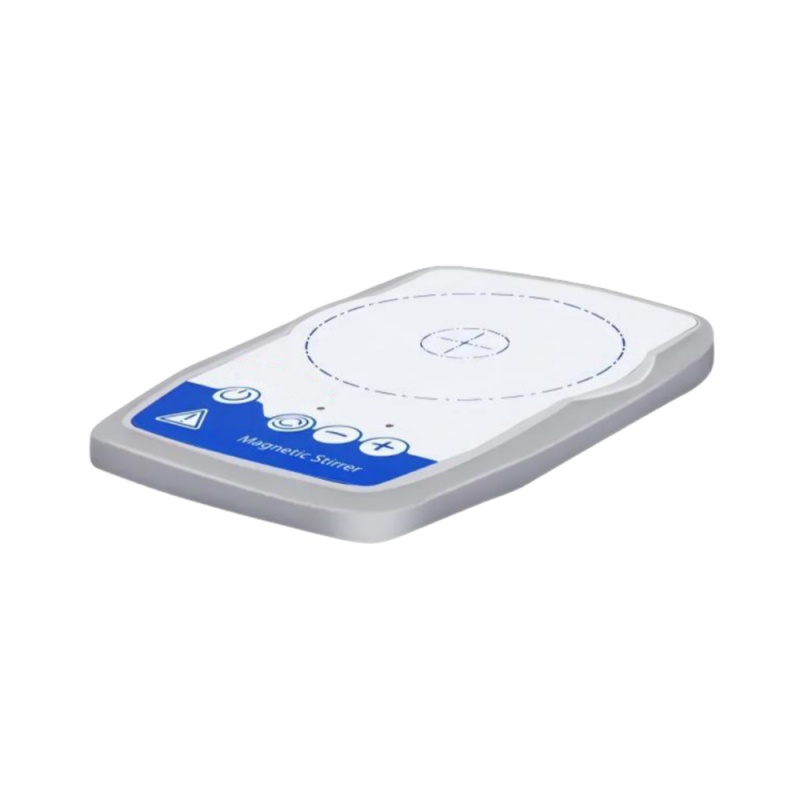

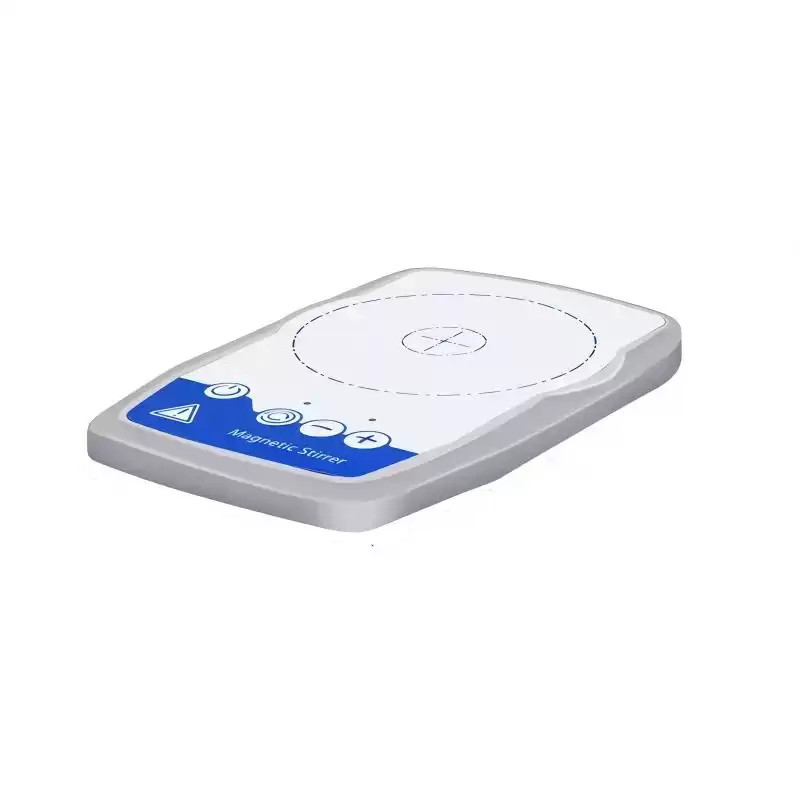

Product Introduction
The Yanbio magnetic stirrer works by using a rotating magnetic field to turn a small magnetic bar (called a stir bar) that is placed inside the liquid. The stir bar is magnetized and spins in response to the rotating magnetic field created by an electromagnetic coil within the stirrer.is engineered for efficient and reliable mixing of a wide variety of laboratory samples, including biological, chemical, and pharmaceutical applications. Featuring a precise pressure sensor with touch activation, it ensures hands-free operation, enabling users to focus on other tasks. The high-performance anti-vibration feet provide exceptional stability and reduce noise, making it ideal for environments where both precision and quiet performance are critical.
Magnetic stirrers are commonly used in chemistry and biology labs for tasks such as mixing reagents, dissolving solids in solvents, or maintaining a constant mixture during reactions. Some magnetic stirrers come with a heating feature, known as a "hot plate stirrer," which can heat the liquid while stirring.
Product Specifications
|
Product Name
|
Magnetic Stirrer
|
|
Cat. No.
|
YB-MS
|
|
Rated Voltage
|
100-240VAC
|
|
Rated Frequency
|
50-60Hz
|
|
Output Voltage
|
12VDC
|
|
Output Power
|
3w
|
|
Stirring Mechanism
|
Coil Drive
|
|
Speed Range
|
15-1500rpm
|
|
Stirred Quantity
|
800mL
|
|
Operating Time
|
100%
|
|
Protection Class
|
II
|
|
Pollution Degree
|
2
|
|
Overvoltage Category
|
II
|
|
EN 60529 Protection Class
|
IP65
|
|
Ambient Humidity (relative)
|
80%
|
|
Ambient Temperature
|
5-40℃
|
|
Transport Temperature
|
-25-70
|
|
Storage Temperature
|
-10-70
|
|
Material
|
Front membrane sheet polyester
|
|
Weight
|
0.35kg
|
|
lnstalled Weight (max)
|
2kg
|
|
Set-up Surface
|
Φ100mm
|
|
Dimensions (w x D x H)
|
115x175x12mm
|
Key Features
Speed Range: 15-1500rpm.
Slip-proof and Stablestand.
High lP Protection Class: IP65.
Automatic Reverse Rotation: for excellent mixing performance.
Chemical Resistance: set-up plate and casing are made from chemically resistant.
Applications Field:
- Dissolving solids: When a substance needs to be dissolved in a solvent at an elevated temperature, a hotplate magnetic stirrer can be used to ensure uniform mixing and heating.
- Chemical reactions: Used when a reaction needs to be conducted at a specific temperature while maintaining constant agitation.
- Refluxing: It can be used for distillation or reflux processes where continuous stirring and heating are needed.
- Maintaining Culture Conditions: In biological labs, it’s used for heating media or maintaining cell cultures at specific temperatures while gently mixing.
