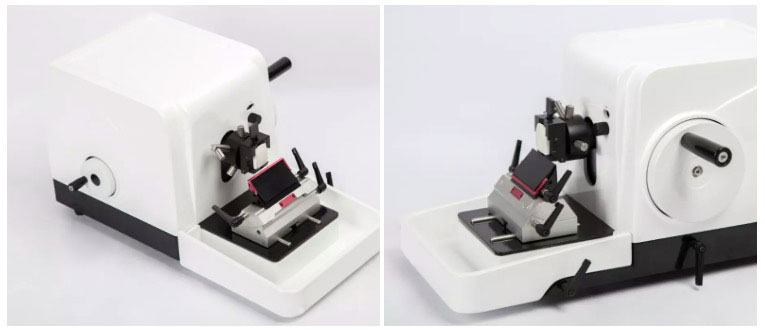

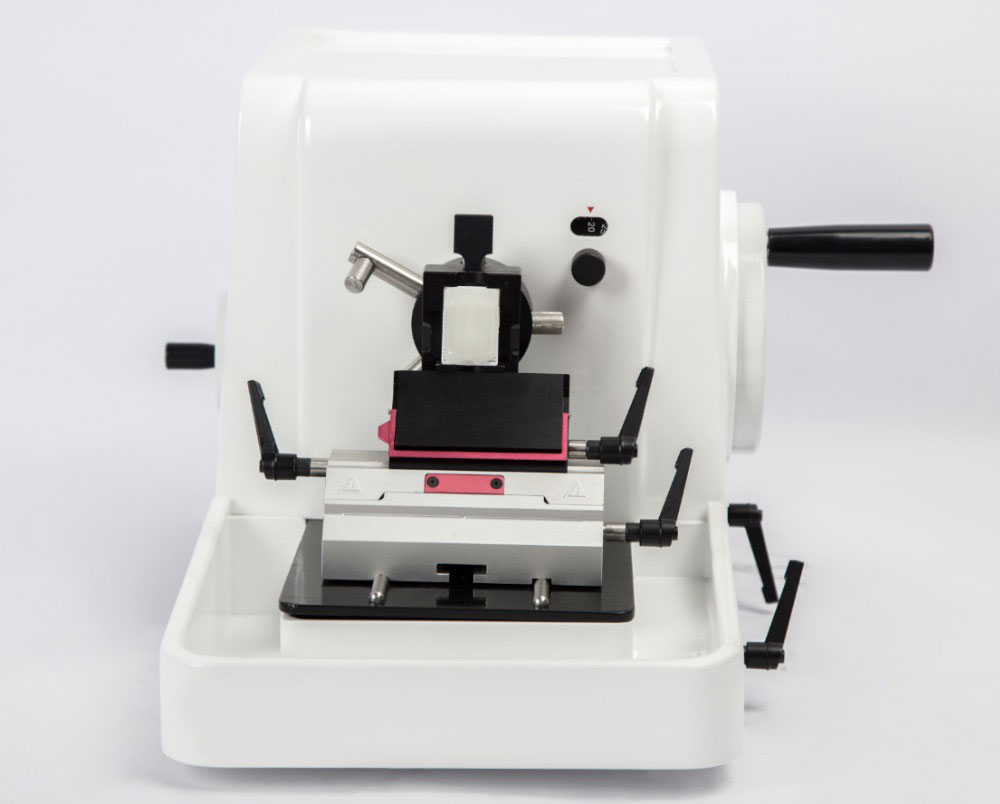

Manual Hand Rotary Paraffin Pathological Microtome
Model No.RD-475
|
|
Section thickness setting range
|
0-60μm
0-10μm increment：1μm
10-20μm increment：2μm
20-60μm increment：5μm
|
|
Trimming thickness setting range
|
0-60μm Adjustable
|
|
Minimum setting of sectioning thickness
|
1μm
|
|
Precision and error
|
±1％
|
|
Section base angle range
|
0°～10°Adjustable
|
|
Maximum specimen size
|
60mm*50mm
|
|
Specimen horizontal feeding
|
28mm
|
|
Specimen vertical feeding
|
60mm
|
|
Specimen orientation system
|
XY–8°
|
|
Voltage and frequency
|
AC220V±10%, 50Hz(Standard)
AC110V±10%, 60Hz
|
|
|
Net weight
|
36kgs
|
|
Size:
|
555mm*430mm*300mm (L*W*H)
|

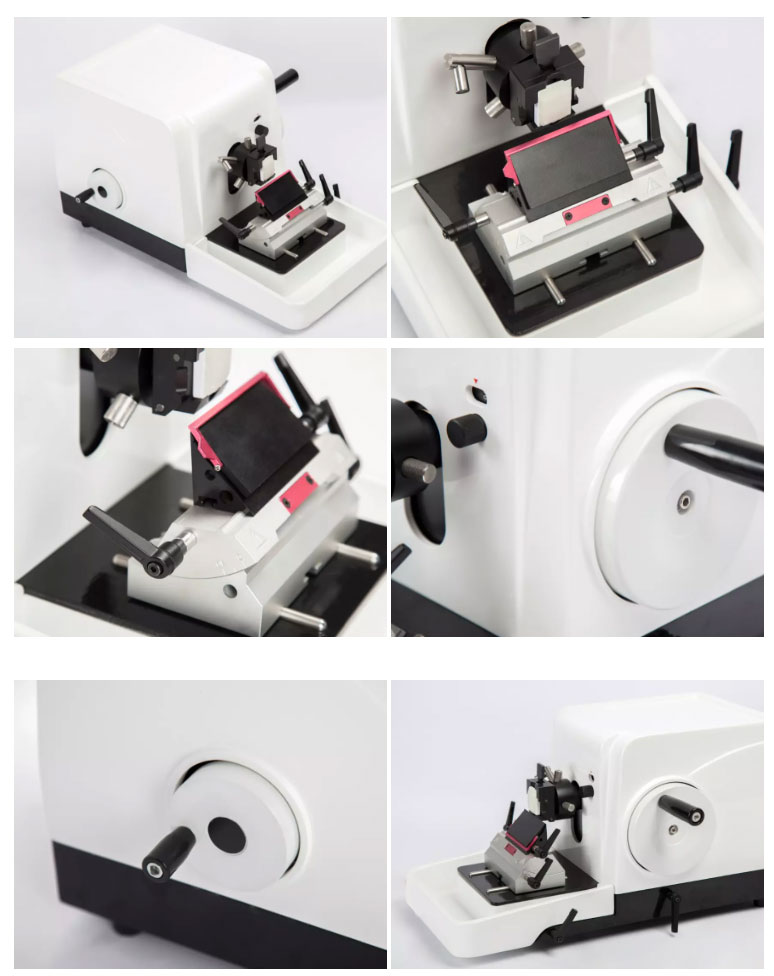

-- Uses imported cross-roller guide rails and a screw motion mechanism to ensure precision resulting in superior sectioning performance.
-- Easy and fast switching between different specimen clamps (two options: paraffin block clamp and cassette clamp).
-- The precise positioning system is not only easy to use, but also provides accurate X- and Y- axis adjustment.
-- Hand-wheel is rotated based on a mechanical balance mechanism, and can be locked at any position 360°, providing the maximum level of safety and convenience.
-- Section blade holder can be Parallel movement, 0 ° ~ 10 ° angle adjustable. It make to achieve the better slice results.
-- The red bar on the blade holder covers the whole length of blade to protect the user and the push bar enables easy changing of the blade.
-- Well-designed tray on the top of housing, convenient use.
-- Magnetically fixed large waste tray is easy to install and uninstall.
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
