Description for OLT-10B Gland-type Lab Vacuum Freeze Dryer :
OLT-FD10B Freezing dryer is a new Freezing dryer device, suit for freeze-dring experiment in laboratory and a small amount production.

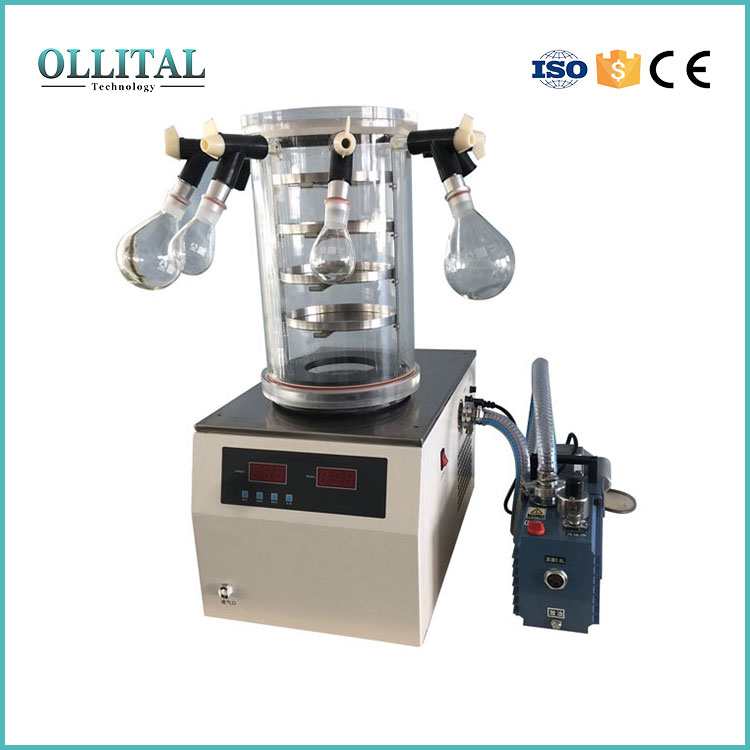

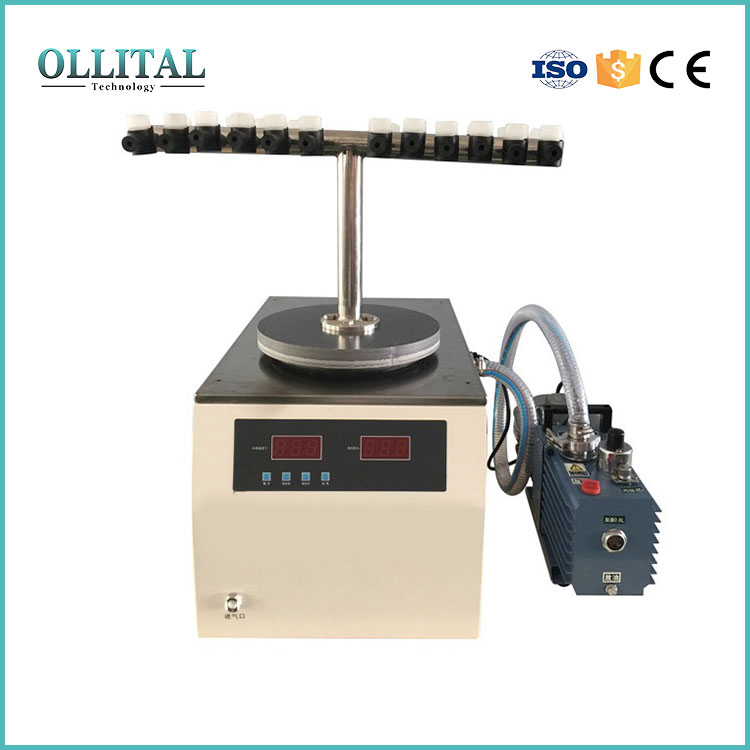

The series include: common type, capping type, branch manifold common type, branch manifold capping type.
Characteristics:
1. Green environment-friendly product to conform to international standard
2. LCD display, Chinese, and English interface, drying curve being displayed;
3. the mouth of cold trap is big, no internal coil, having the function of pre-cooling the samples
4. imported compressor with big capacity of refrigerating, and noise small;
5. Cold trap and Operation panel area all corrosion-resistant stainless steel, bright and
6. The organic glass cover can help you observe the whole freeze drying process.
7. stainless steel sample shelf, the space of common sample tray can be adjusted;
8. Electric defrost function
|
Name and Model
|

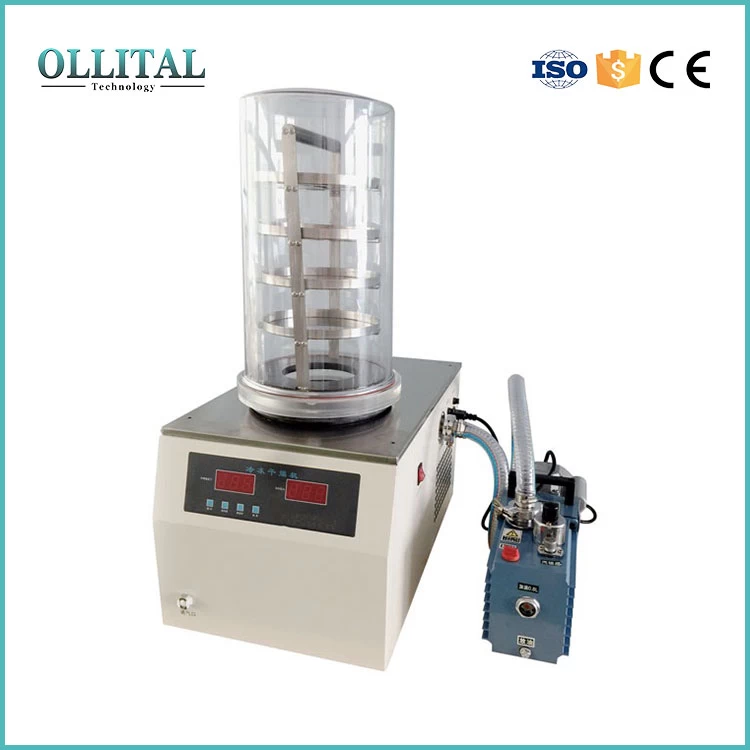

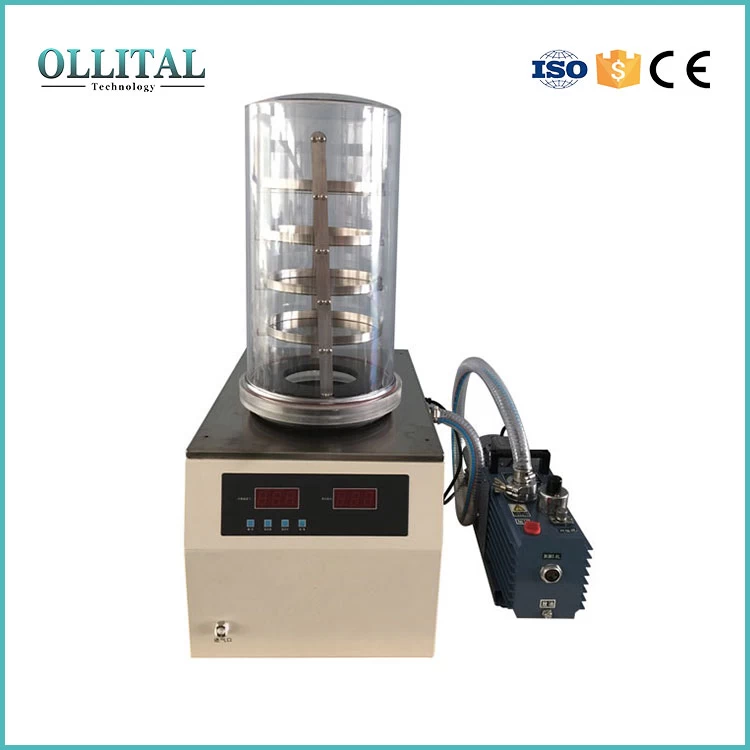

OLT-FD10B Gland type Vacuum Freeze Dryer
|
|
Freeze Drying Area
|
0.025 m2/layer
|
|
Cold trap temperature
|
-50 (optional -80) ℃
|
|
Vacuum
|
<10 Pa
|
|
Water-capture capacity
|
3~4 Kg/24h
|
|
Material tray
|
diameter 180 mm
|
|
Tray number
|
3 layer
|
|
Whole power
|
750 W
|
|
Main frame size
|
460*556*(720+430)(mm)
|
|
Main frame weight
|
40 Kg
|
|
Liquid capacity
|
0.7 L (thickness:10mm)
|
|
Penicillin bottle
|
Penicillin bottle diameter12mm:560pcs
|
|
Penicillin bottle diameter 16mm:285pcS
|
|
Penicillin bottle diameter 22mm:165pcs
|
1.Imported compressor, CFC Free refrigeration.
2.Big opening of cold trap, this type cold trap has pre-freeze function.
3.The machine can store freeze-dried data for many times, experimental data can be output by a USB flash disk.
4.Touch screen as human-computer interface, Chinese (English) convertible interface, display drying curve.
5.Small volume, compact structure ,easy and convenient operation.
6.The international standard KF vacuum interface, with a variety of vacuum pump combination.
7.Condenser and operation panel are all stainless steel, corrosion resistant and easy to clean.
8.Pre-freeze shelf can work as a lead tube, speed up the drying speed.
9.Optional charging valve, filling dry inert gas.
10.Cascade refrigeration is optional , applied for -80℃ machine.

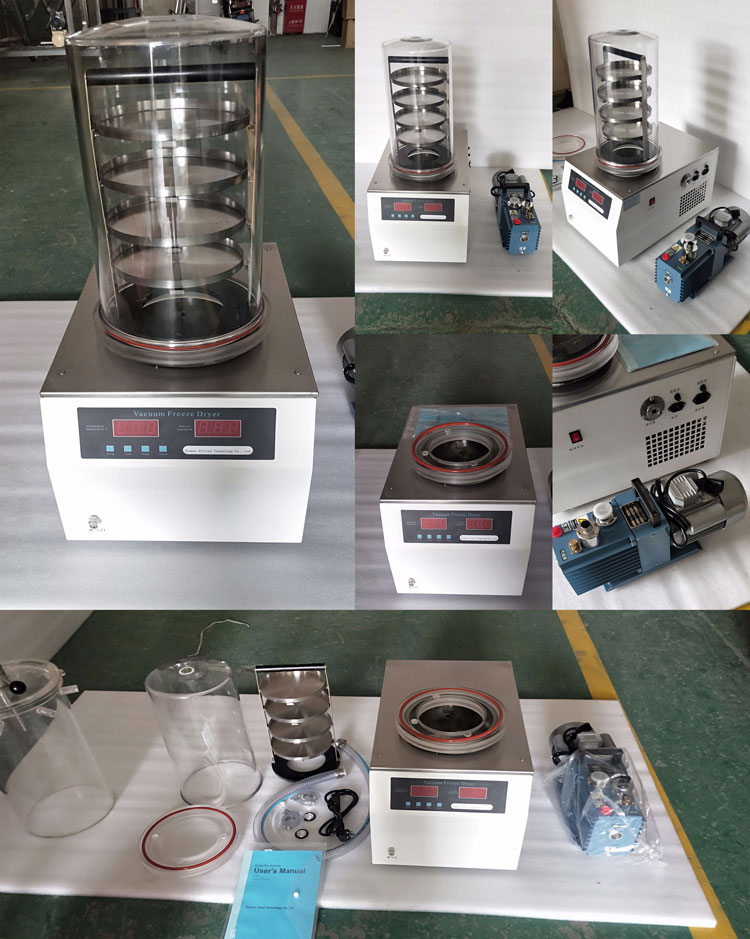

sealed ring
pre-freeze lid
Clamp
Vacuum tube with joint
Vacuum grease
vacuum pump
power cable
Organic glass over

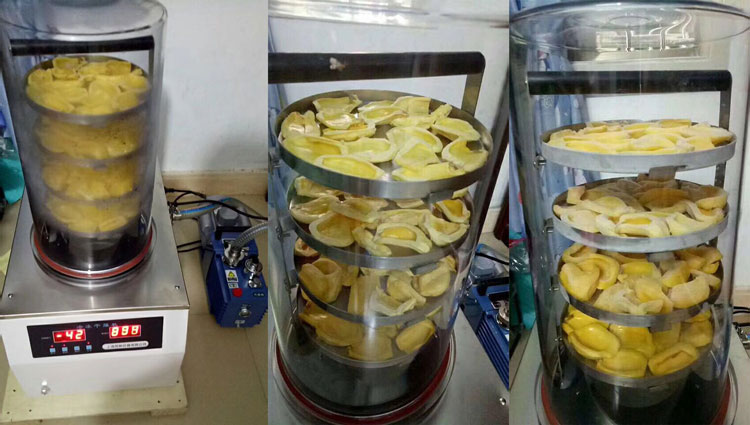

Freeze drying shelf
Material trays
Pre-freezing shelf
