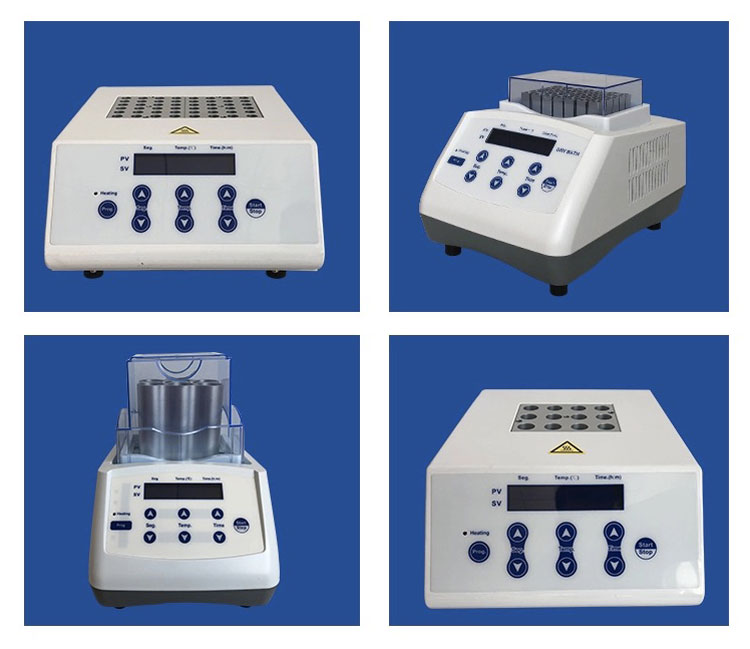

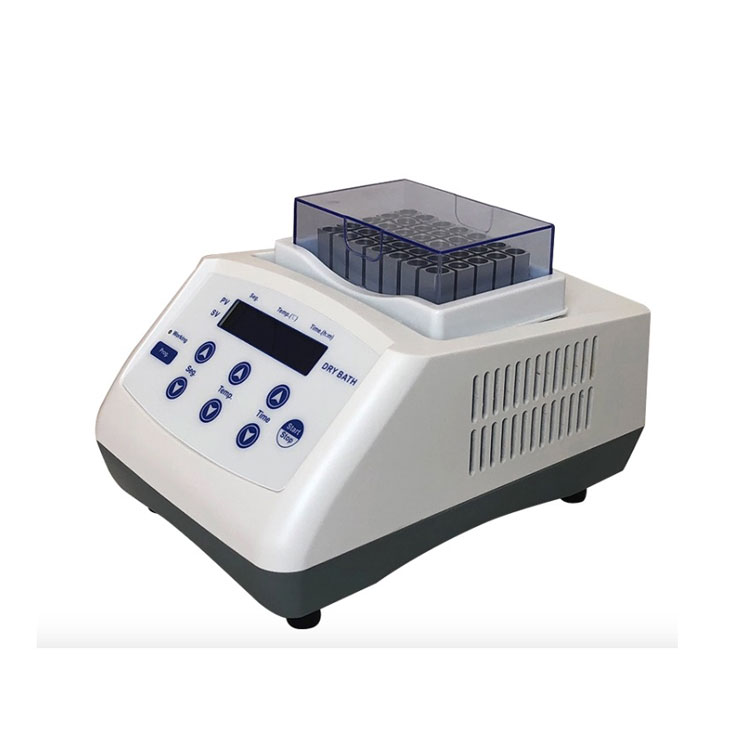

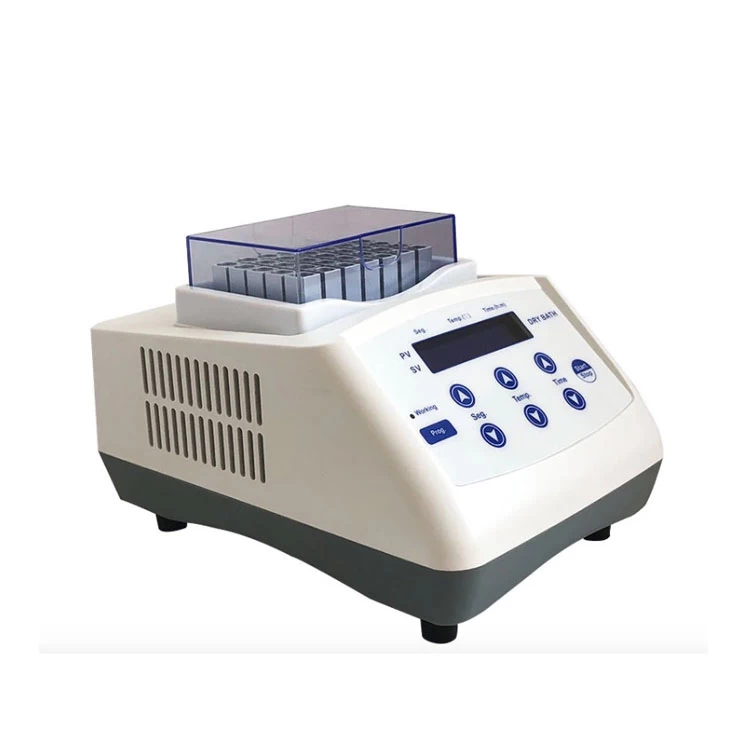

Designed for simultaneous heating, cooling and mixing of small samples, OLT-DB-10 and OLT-DB-20 can be supplied with interchangeable blocks for microtubes. Mixing, heating and cooling modes can be used either simultaneously or independently. The main body of the Mixing Block can be used with different kinds of blocks
1. LCD display. It is easy to set up and use
2. Accurately control and display time, temperature and speed
3. Over-heating protection device ensures safety & reliability
4. Low noise working even under the speed of 1,500rpm
5. Conforms to CE safety standard
6. Peltier design of OLT-DB-10provides thermal control in a compact unit
7. Easy to replace the metal blocks and is very simple to clean and sterilize
|
Model
|
OLT-DB-10
|
OLT-DB-20
|
|
Temperature Control Range
|
RT+5°C~100°C
|
-10°C~100°C
|
|
Temperature Setting Range
|
5°C~100°C
|
-10°C~100°C
|
|
Timer
|
1min~99h59min
|
1min~99h59min
|
|
Temp. Control Accuracy
|
±0.3°C
|
±0.3°C
|
|
Display Accuracy
|
±0.1°C
|
±0.1°C
|
|
Mixing Speed
|
200~1500rpm
|
200~1500rpm
|
|
Heating Time(25 to 100°C)
|
≤15min
|
≤15min
|
|
Cooling Time
|
----
|
≤30min (from RT. to RT.-20°C)
≤15min (from 100°C to 20°C)
|
|
Mixing Orbit
|
2mm
|
2mm
|
|
Dimension(mm)
|
270 x 190 x 190
|
270 x 190 x 190
|
|
Net Weight
|
2kg
|
3.5kg
|
Exchangeable Blocks for OLT-BD-10 / OLT-BD-20 Thermo Shaker Incubator
|
Code
|
Type
|
Description
|
Max.Temp.
|
|
01
|
LC-A
|
96×0.2ml tubes
|
100℃
|
|
02
|
LC-B
|
54×0.5ml tubes
|
100℃
|
|
03
|
LC-C
|
35×1.5ml tubes
|
100℃
|
|
04
|
LC-D
|
35×2.0ml tubes
|
100℃
|
|
05
|
LC-E
|
15×0.5ml+20×1.5ml tubes
|
100℃
|
|
06
|
LC-F
|
24×Diameter≤12mm tubes
|
100℃
|
|
07
|
LC-G
|
32×0.2ml+25×1.5ml tubes
|
100℃
|
|
08
|
LC-H
|
32×0.2ml+10×0.5ml+15×1.5 tubes
|
100℃
|
|
09
|
LC-J
|
92×0.2ml tubes
|
100℃
|
|
10
|
LC-K
|
24×5ml tubes
|
100℃
|
|
11
|
LC-L
|
12×15ml tubes
|
100℃
|
|
12
|
LC-M
|
6×50ml tubes
|
100℃
|
Host: 1 pce
Module: 1 block
power cord :1 pce
A special screwdriver (used for dismantling a module):1 pce
An instruction manual:1 pce
Certificate:1 pce
Warranty card:1 pce
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
