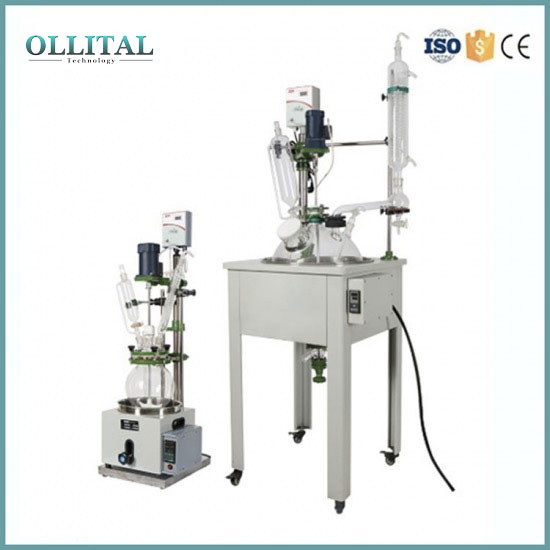

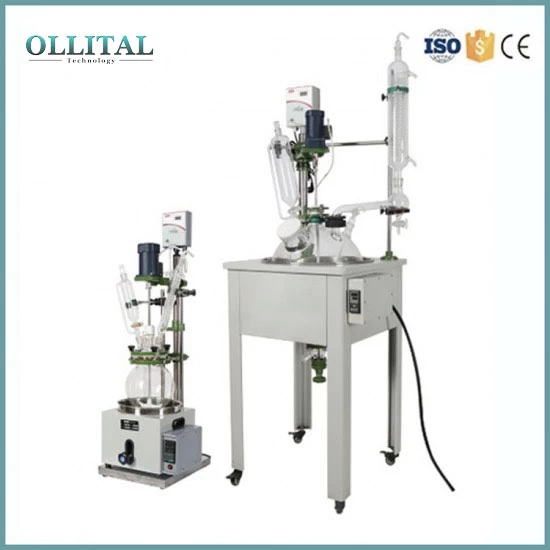

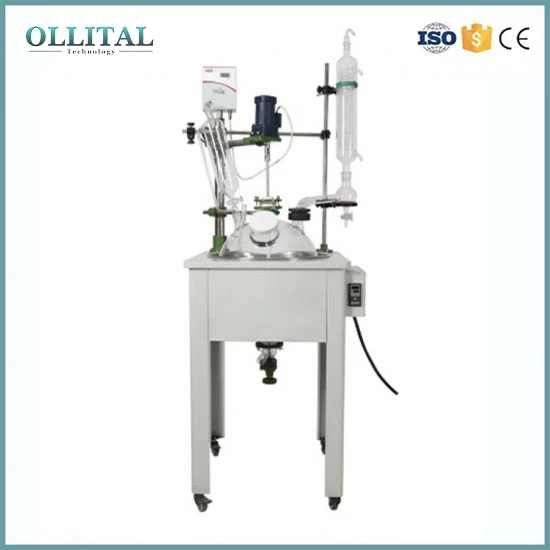

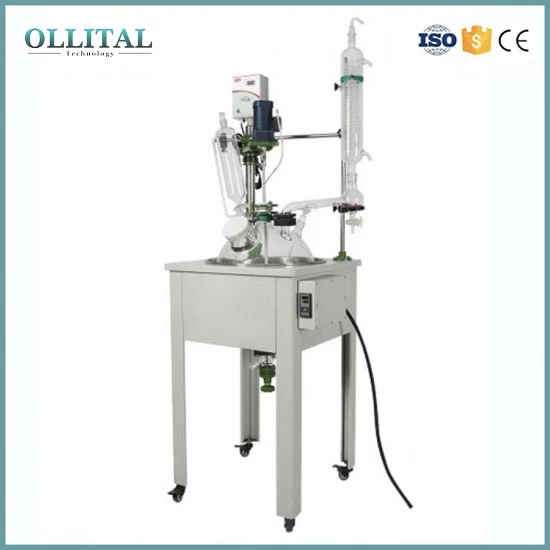

The lab glass reactor systems are the essential equipment for mixing, reaction, distillation and filtration in chemistry and pharmaceutical industries.
We offer a wide range of glass reactors with volumes from 500mL to 200L. They can be jacketed or unjacketed, electrical or air-driven, desktop or floor-stand, with or without filter base. All the glass reactor systems can be modified in our own factory quickly in case any customization is needed from us (dimension, motor power, explosion proof, additional glassware, custom port size, etc).
|
Model
|
OLT-RK-10L
|
OLT-RK-20L
|
OLT-RK-30L
|
OLT-RK-50L
|
OLT-RK-80L
|
OLT-RK-100L
|
|
Volume
|
10L
|
20L
|
30L
|
50L
|
80L
|
100L
|
|
Stirrer Speed
|
0-600rpm
|
|
Bath Power
|
3KW
|
6KW
|
6KW/9KW
|
6KW/9KW
|
|
Temp.Range
|
0~200C ±0.2C
|
|
PTFE Combined Sealing
|
12*32*10
|
15*32*10
|
15*32*10
|
|
Controller
|
Speed digital display/Temperature display
|
|
Solid Inlet Port
|
125mm
|
85mm
|
85mm
|
|
Liquid Inlet Port
|
34#
|
|
Temperature Tube
|
24#200mm
|
24#350mm
|
29#800mm
|
29#480mm
|
|
Distillation Device
|
500ml
|
1000ml
|
|
Collection Flask
|
5-50L optional
|
|
External Dimension(L*W*H)mm
|
64*56*188
|
69*61*208
|
75*67*225
|
780*710*2250
|
85*76*233
|
85*76*250
|
|
Voltage
|
220V/50HZ
|
220V50Hz;380V/50HZ
|
-
For hazardous environments, all electrical components can be upgraded to comply with explosion proof requirements. When necessary, air-driven motors are available upon request.
-
Durable AC induction motor is designed for continuous operation.
-
The support frame is made of stainless steel 304, with outstanding corrosion resistance. Moreover, it’s designed to protect the glass vessel against damages from careless operation.
Packaging:
-The glass parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.
|
Shipping method
|
Note
|
|
Express
|
Door to door, very convenient, don't need to clearance or pick-up
|
|
By air
|
Airport to airport, you need to do the customs clearance and pick up the
goods at your local airport, which you can have a local shipping agent to do for you.
|
|
By sea
|
Port to port and you need to do the customs clearance and pick-up the goods
at your local port, which you can have a local shipping agent to do for you.
|
