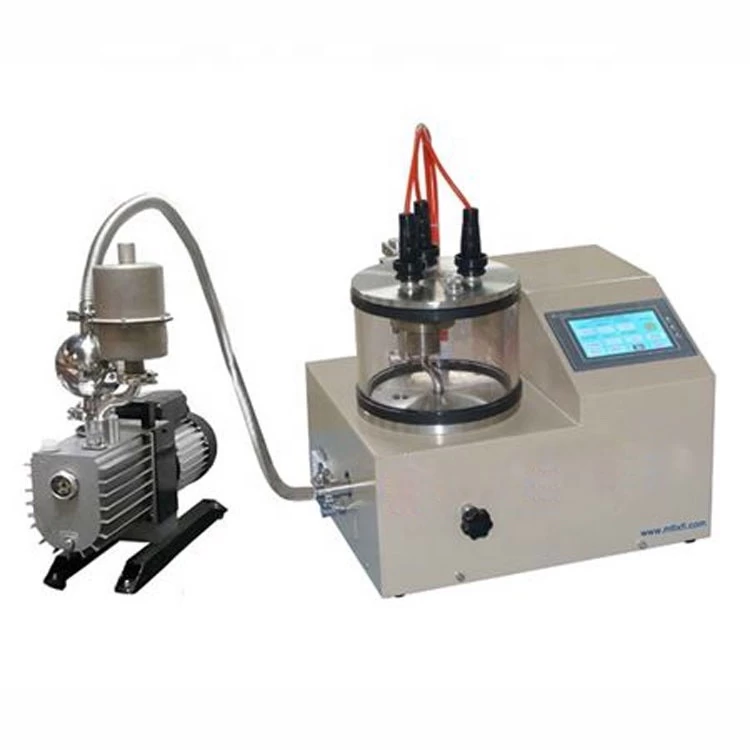

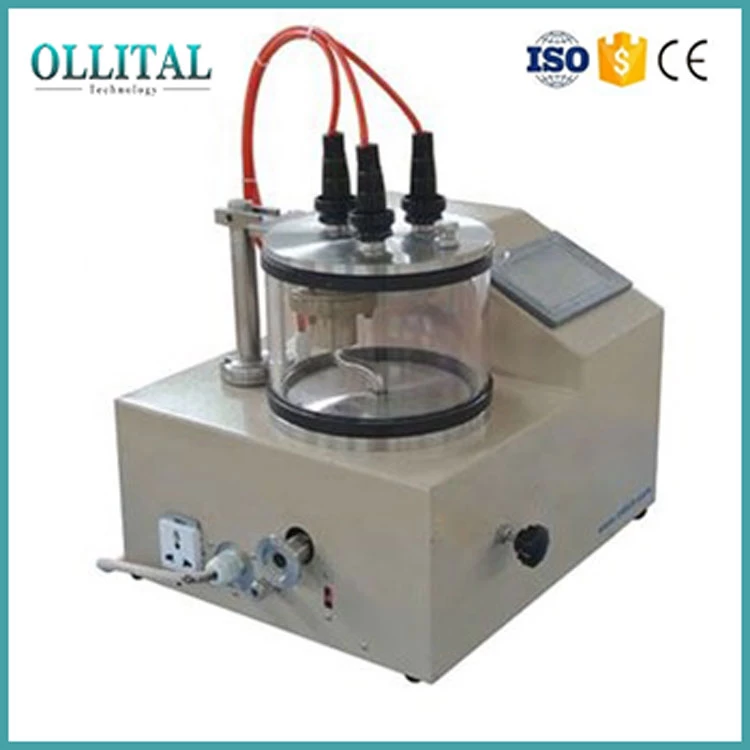

Voltage
|
108/240VAC switchable
|
|
Output Power
|
1600VDC /250W /50mA max /Built-in over current (>150mA) protection
|
|
Specimen chamber
|
Quartz glass tube, 167mm OD. x 152mm ID x 260mm Height
|
|
Sputtering Head
|
2“ flexible magnetron sputtering head with water cooling jacket is
included (Fig.1)
|
|
Specimen stage
|
One 50 mm Dia stainless steel sample stage is rotatable from 0 - 5 RPM
|
|
|
One manually operated shutter for target protection. (Fig.2)
|
|
|
Sputtering head holder is available for holding sputtering head while non-operation. The distance between the sputtering head and sample stage
is adjustable from 60 - 100 mm.
|
|
|
Max Coating area: 4" diameter max.
|
|
|
One Air Cold Recirculating Water Chiller 10 L/min Flow is included for
cooling sputtering head. (Fig.6)
|
|
Control Panel
|
6" color touch-screen control panel with PLC integration for easy
operation One panel for all parameters monitor and
control: vacuum, current.
|
|
Ultimate
Vacuum Pressure
|
1.Built-in KF25 vacuum port
|
|
2.The system requires an Ar gas tank with pressure regulator. (not included)
|
|
3.< 1.0E-2 Torr by Vane vacuum pump (not included) for Au, Ag, Pt, Cu,
Mo targets (not sensitive to air)
|
|
4.< 1.0E-5 Torr by Turbomolecular pump (not included) for Al, Mg, Li, Lr, Ti, Zn
targets (sensitive to air)
|
|
5.The lowest vacuum may reach < 4.0E-6 Torr by pumping overnight and baking
|
|
Gas Atmosphere
|
One needle valve installed to allow Ar gas inlet to achieve better plasma coating.
|
|
The system requires an Ar gas tank with pressure regulator (not included)
|
|
Target
|
Target size: 50 mm dia. x (0.1 - 3) mm,thickness
|
|
One 2" Aluminium target is included
|
|
Also can coat Ag, Al, Cr, Ni, Pt, Ti, Sn, Mg, etc. These targets are
available upon request.
|
|
Aluminum Target Recommend Coating Method
|
|
Optional Film
Thickness Monitor
|
Target size: 50 mm dia. x (0.1 - 3) mm,thickness
|
|
One 2" Aluminium target is included
|
|
Also can coat Ag, Al, Cr, Ni, Pt, Ti, Sn, Mg, etc. These targets are
available upon request.
|
|
Aluminum Target Recommend Coating Method
|
|
Overall Dimensions
|
L 440mm×W 330mm × H 300mm without sputtering head
|
|
Warranty & Certificate
|
One year limited with lifetime support CE certified
|
