Laboratory Transparent Acrylic Vacuum Glove Box with Optional Vacuum Flange & Gauge

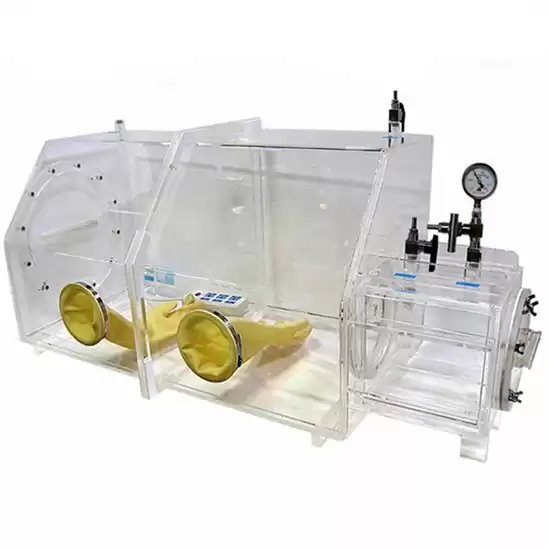

It is mainly composed of main box, transit room and side door. If user has special requirement, it can also be customized and designed according to customer needs. There are 2 glove interfaces. In front of the main Vacuum Glove Box, user can clearly view the box inner situation. There are two vacuum ball valves and one vacuum gauge on the right of the main box. And there are also two vacuum ball valves and one vacuum gauge on the transit room. It can be used according to user needs. The ball valve can be connected with water faucet when needing water or ventilation. Light bulb can be also installed. Transit room means the transition between the main box and outdoor, composed by two sealed doors, two vacuum ball valves and one room. Two doors isolate the main box from connecting with the outdoor, making material putting in and taking out for lab easily.
|
Main Parameters of Transparent Glove Box
|
|
No.
|
Model No.
|
Box Size
(mm)
|
Material
|
Glass Thickness
(mm)
|
Size of Transition Cabinet
(mm)
|
Remarks
|
|
1
|
GBT-10A
|
740*450*500
|
Organic Glass
or Acrylic Glass
|
10
|
No Transition Cabinet
|
Isolated from dust, no vacuum
|
|
2
|
GBT-15A
|
740*450*500
|
15
|
240*240*240
|
Slight vacuum can be pumped, water or oxygen removal system is for option.
|
|
3
|
GBT-30A
|
740*450*500
|
30
|
240*240*240
|
Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal
|
|
4
|
GBT-10B
|
1000*500*500
|
10
|
No Transition Cabinet
|
Isolated from dust, no vacuum
|
|
5
|
GBT-15B
|
1000*500*500
|
15
|
240*240*240
|
Slight vacuum can be pumped, water or oxygen removal system is for option.
|
|
6
|
GBT-30B
|
1000*500*500
|
30
|
240*240*240
|
Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal
|
|
7
|
GBT-10C
|
1200*600*600
|
10
|
No Transition Cabinet
|
Isolated from dust, no vacuum
|
|
8
|
GBT-15C
|
1200*600*600
|
15
|
240*240*240
|
Slight vacuum can be pumped, water or oxygen removal system is for option.
|
|
9
|
GBT-30C
|
1200*600*600
|
30
|
240*240*240
|
Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal
|
|
10
|
GBT-10D
|
1200*800*700
|
10
|
No Transition Cabinet
|
Isolated from dust, no vacuum
|
|
11
|
GBT-15D
|
1200*800*700
|
15
|
240*240*240
|
Slight vacuum can be pumped, water or oxygen removal system is for option.
|
|
12
|
GBT-30D
|
1200*800*700
|
30
|
240*240*240
|
Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
