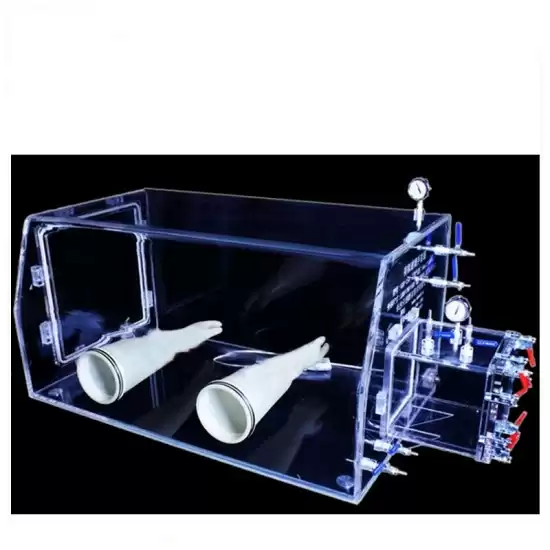

Vacuum Acrylic Lab Glove Box
Applications of Transparent Vacuum Glove Box
Some materials are very sensitive to water and oxygen when doing chemical experiment.So it is hard to finish the research. Although vacuum vessel can satisfy anaerobic and vacuum degree, it is not convenient for operating the procedure. Vacuum glove box solve the environment and operation problem.So it is widely used in chemistry, biology and biochemistry, especially in catalyst and metal organics.
|
Main Parameters of Transparent Glove Box
|
|
No.
|
Model No.
|
Box Size
(mm)
|
Material
|
Glass Thickness
(mm)
|
Size of Transition Cabinet
(mm)
|
Remarks
|
|
1
|
GBT-10A
|
740*450*500
|
Organic Glass
or Acrylic Glass
|
10
|
No Transition Cabinet
|
Isolated from dust, no vacuum
|
|
2
|
GBT-15A
|
740*450*500
|
15
|
240*240*240
|
Slight vacuum can be pumped, water or oxygen removal system is for option.
|
|
3
|
GBT-30A
|
740*450*500
|
30
|
240*240*240
|
Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal
|
|
4
|
GBT-10B
|
1000*500*500
|
10
|
No Transition Cabinet
|
Isolated from dust, no vacuum
|
|
5
|
GBT-15B
|
1000*500*500
|
15
|
240*240*240
|
Slight vacuum can be pumped, water or oxygen removal system is for option.
|
|
6
|
GBT-30B
|
1000*500*500
|
30
|
240*240*240
|
Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal
|
|
7
|
GBT-10C
|
1200*600*600
|
10
|
No Transition Cabinet
|
Isolated from dust, no vacuum
|
|
8
|
GBT-15C
|
1200*600*600
|
15
|
240*240*240
|
Slight vacuum can be pumped, water or oxygen removal system is for option.
|
|
9
|
GBT-30C
|
1200*600*600
|
30
|
240*240*240
|
Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal
|
|
10
|
GBT-10D
|
1200*800*700
|
10
|
No Transition Cabinet
|
Isolated from dust, no vacuum
|
|
11
|
GBT-15D
|
1200*800*700
|
15
|
240*240*240
|
Slight vacuum can be pumped, water or oxygen removal system is for option.
|
|
12
|
GBT-30D
|
1200*800*700
|
30
|
240*240*240
|
Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal
|
