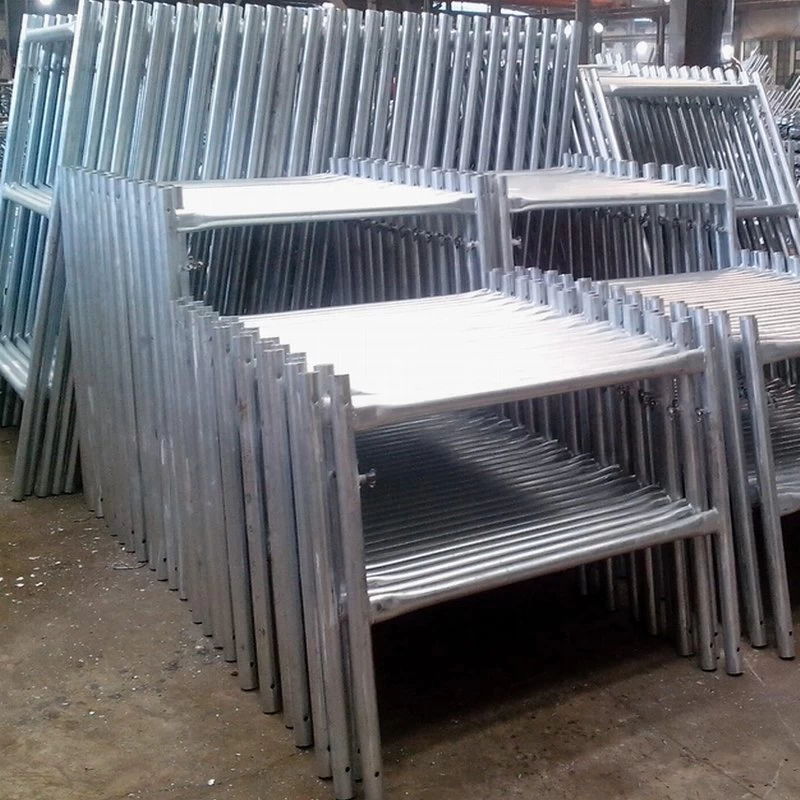

H-Shoring Frame Scaffolding
Main Components or accessories: H-frame, Shoring Brace, Shoring Spigot (Coupling Pin), Shoring Base Jack, Shoring U-head Jack, and so on.
Product Details:
H-Shoring Frames
|
Code
|
Description
|
Material
|
Size
|
Weight(kg)
|
Weight(lbs)
|
|
HSF.476
|
4'x7'6" H-Shoring Frame
|
Frame leg Ø60.3x3.5mm, Horizontal tube Ø42x2.2mm; Q235-Q355
|
1219 x 2286mm
|
32.96
|
72.68
|
|
HSF.464
|
4'x6'4" H-Shoring Frame
|
1219 x 1930mm
|
29.50
|
65.05
|
|
HSF.46
|
4'x6' H-Shoring Frame
|
1219 x 1829mm
|
28.50
|
62.84
|
|
HSF.45
|
4'x5' H-Shoring Frame
|
1219 x 1524mm
|
23.00
|
50.72
|
|
HSF.44
|
4'x4' H-Shoring Frame
|
1219x1219mm
|
20.00
|
44.10
|
|
HSF.43
|
4'x3' H-Shoring Frame
|
1219x914mm
|
14.60
|
32.19
|
|
HSF.264
|
2'x6'4" H-Shoring Frame
|
610 x 1930mm
|
24.50
|
54.02
|
|
HSF.26
|
2'x6' H-Shoring Frame
|
610 x 1829mm
|
23.50
|
51.82
|
|
HSF.25
|
2‘x5' H-Shoring Frame
|
610 x 1524mm
|
19.30
|
42.56
|
|
HSF.24
|
2'x4' H-Shoring Frame
|
610 x 1219mm
|
16.30
|
35.94
|
|
HSF.23
|
2'x3' H-Shoring Frame
|
610 x 914mm
|
12.10
|
26.68
|

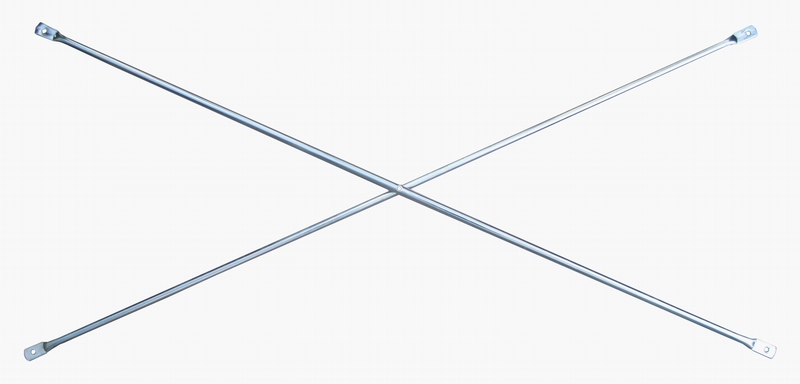

Shoring Cross Brace
|
Code
|
Size (Metric)
|
Material
|
Size (Imperial)
|
Weight(kg)
|
Weight(lbs)
|
|
SF.BR.74
|
7'x4' Shoring Brace
|
Ø28x2.0mm; Q235
|
2134 x 1219mm
|
6.45
|
14.22
|
|
SF.BR.73
|
7'x3' Shoring Brace
|
2134 x 914mm
|
6.10
|
13.45
|
|
SF.BR.730
|
7'x30" Shoring Brace
|
2134 x 762mm
|
5.96
|
13.14
|
|
SF.BR.72
|
7'x2' Shoring Brace
|
2134 x 610mm
|
5.84
|
12.88
|
|
SF.BR.65
|
6'x5' Shoring Brace
|
1829 x 1524mm
|
6.26
|
13.80
|
|
SF.BR.64
|
6'x4' Shoring Brace
|
1829 x 1219mm
|
5.80
|
12.79
|
|
SF.BR.63
|
6'x3' Shoring Brace
|
1829 x 914mm
|
5.40
|
11.91
|
|
SF.BR.62
|
6'x2' Shoring Brace
|
1829 x 610mm
|
5.10
|
11.25
|
|
SF.BR.54
|
5'x4' Shoring Brace
|
1524 x 1219mm
|
5.15
|
11.36
|
|
SF.BR.53
|
5'x3' Shoring Brace
|
1524 x 914mm
|
4.70
|
10.36
|
|
SF.BR.530
|
5'x30" Shoring Brace
|
1524 x 762mm
|
4.50
|
9.92
|
|
SF.BR.52
|
5'x2' Shoring Brace
|
1524 x 610mm
|
4.36
|
9.61
|
|
SF.BR.44
|
4'x4' Shoring Brace
|
1219 x 1219mm
|
4.56
|
10.05
|
|
SF.BR.43
|
4'x3' Shoring Brace
|
1219 x 914mm
|
4.05
|
8.93
|
|
SF.BR.42
|
4'x2' Shoring Brace
|
1219 x 610mm
|
3.65
|
8.05
|
|
SF.MBR
|
Multi-holes Braces 6'4"-7'3"
|
1930-2210mm
|
5.88
|
12.97
|

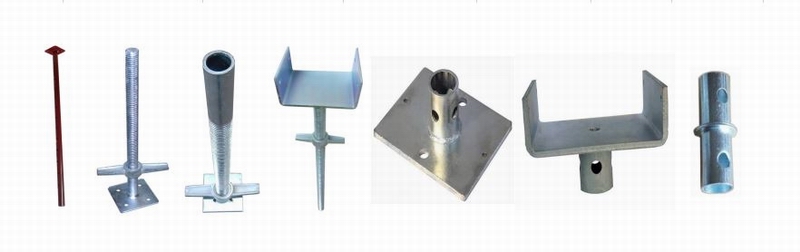

Shoring Frame Accessories
|
Code
|
Description
|
Material
|
Weight(kg)
|
Weight(lbs)
|
|
SF.TP.36
|
Top Insert Prop 1050mm (3'6")
|
Steel Grade: Q235
|
6.00
|
13.23
|
|
SF.SSJ.24
|
Shoring Solid Jack Base 24"
|
7.20
|
15.88
|
|
SF.HSJ.24
|
Shoring Hollow Jack Base 24"
|
5.89
|
12.99
|
|
SF.HUJ.24
|
Shoring Hollow U-head Jack 24"
|
8.30
|
18.30
|
|
SF.BP.66
|
Shoring Base Plate 6"x6"
|
2.27
|
5.01
|
|
SF.BP.88
|
Shoring Base Plate 8"x8"
|
3.69
|
8.14
|
|
SF.UH.88
|
Shoring U Head 8"x8"
|
5.75
|
12.68
|
|
SF.UH.89
|
Shoring U Head 8"x9"
|
6.15
|
13.56
|
|
SF.CLP
|
Collar Lock Pin
|
0.42
|
0.93
|
|
SF.CP
|
Coupling Pin
|
0.52
|
1.15
|
