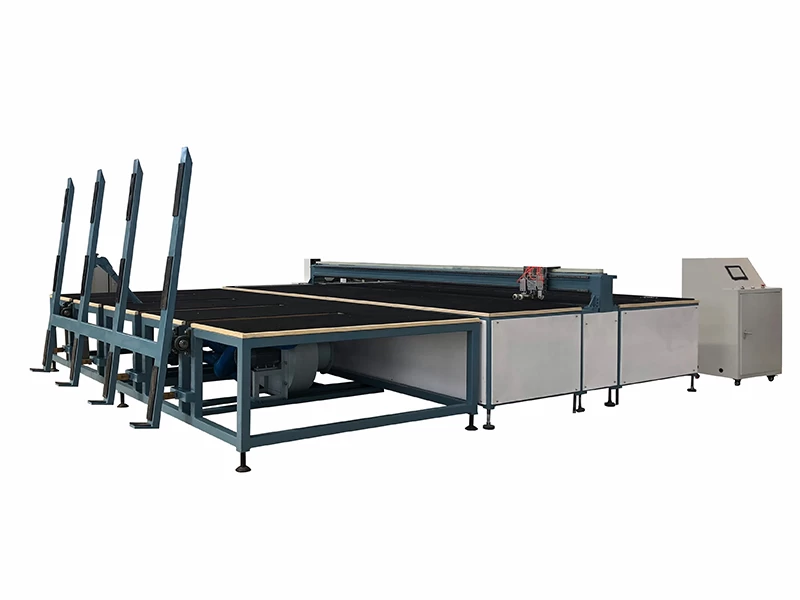

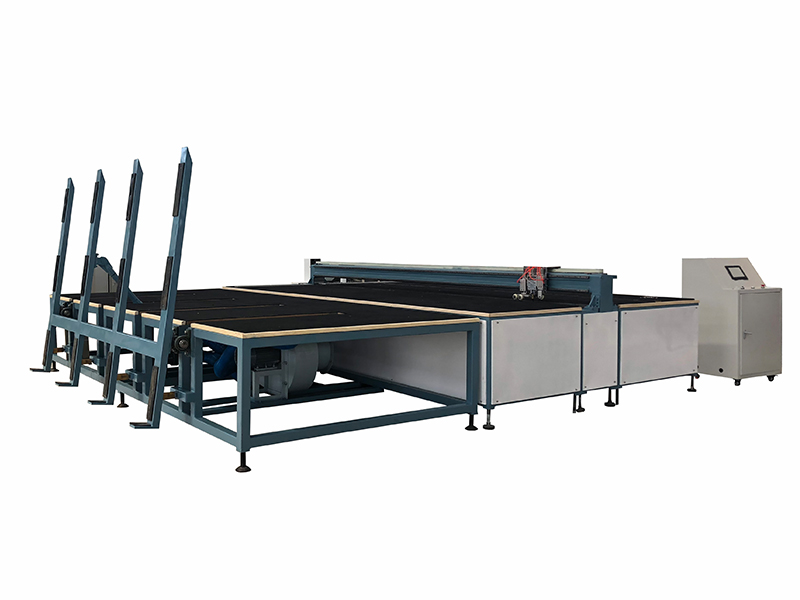

National standard square pipe welding frame. Synchronous belt transmission system. PLC and imported electrical components, stepper motor, LCD display, man-machine interface, more convenient operation, stable performance. Cutting speed can be set directly. The cutting positions of the upper and lower cutter heads are consistent, the matching degree is high, and the breaking piece is easy.
Features:

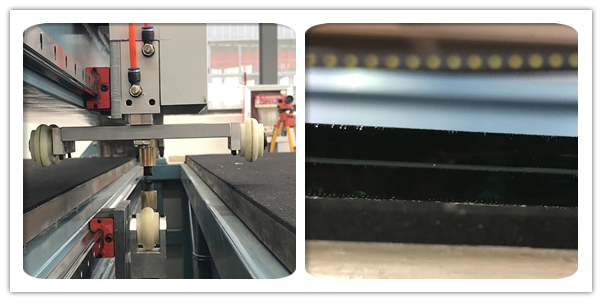

The cutting positions of the upper and lower cutter heads are consistent
Upper cutter with broken wheel, automatically press the lower layer of glass;
When the next lever is broken, there is a pneumatic pressure to ensure the effect of breaking
Cutting precision：≤±1mm Diagonal accuracy：≤±2mm/m
Max. Cutting size ：2500×3660mm（special size can be customized) Min. Cutting size：300mm
Cutting thickness：4－16mm Cutting efficiency：1sheet/2—4min Cutter life：30,000m--50,000m Operator：1－2 people
Use profile
Set size of glass cutting Put glass on table
Move glass to cutting position Cutter runs cutting
The pressure wheel automatically break lower glass Remove glass to breaking table to break upper glass Heating
Cutting film by hand
Handing and installation notice
In the process of carring, please gently handle and avoid collision,When installing can use level correction and adjust the four feet adjustable bracket so that the desktop level
