Landa push pull mini tubular solenoid TU1348 stroke up to 10mm, push pull type, spring return, force up to 3N, 10% duty cycle the power consumption up to 8w, widely use for medical devices.
Product Description
|
Specifications
|
|
Brand
|
Landa
|
Product Name
|
tubular push pull solenoid
|
|
Model
|
TU1348
|
Rated Voltage
|
DC 24v
|
|
Power
|
8w
|
Force
|
0-4N
|
|
Waterproof Class
|
IP65
|
Duty Cycle
|
10-100%
|
|
Stroke
|
0-10mm
|
Material
|
Metal, Electronic Parts
|
|
Action Form
|
Holding type
|
Weight(N.W.)
|
0.035kg
|
|
Install Style
|
Screw
|
Thread Size & Deepth(mm)
|
–
|
|
Hi-Pot Test
|
AC 600V 50/60Hz 2s
|
Insulation Class
|
B
|
|
Packaging Details
|
|
Body Size
|
L48*D13 (mm)
|
Carton Box Size(Standard)
|
350*310*180(mm), accepted custom
|
Features
tubular solenoid features
1. Push-pull type, linear motion, DC solenoid electromagnet, supply reset spring or no reset spring plunger.
2. Tubular solenoid are excellent used for locking solenoids, whether for doors, security or industrial machinery.
3. Typically used for longer stroke, can also be designed for high force heavy duty applications.
4. Single hole mounting holes, easy to install, accepted custom as you needed.

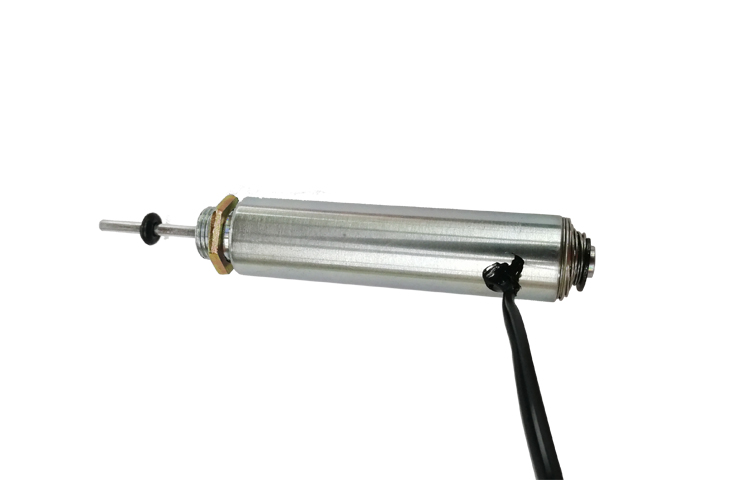

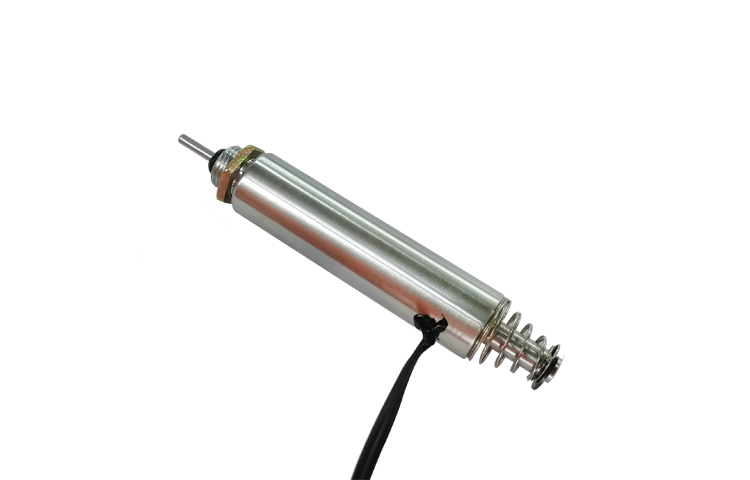

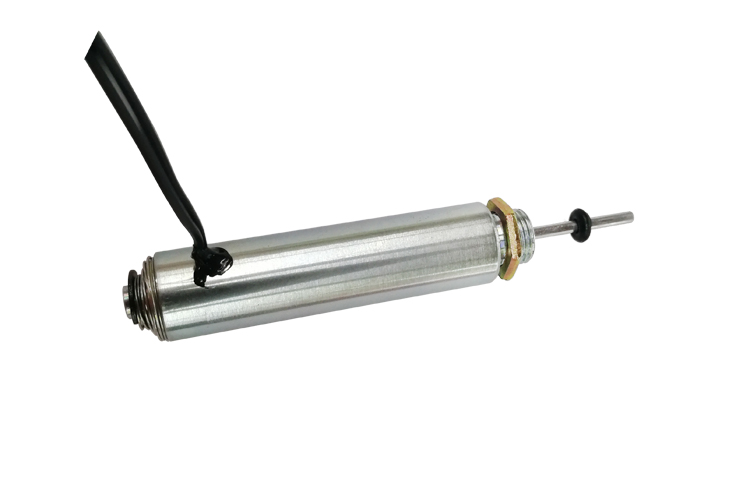

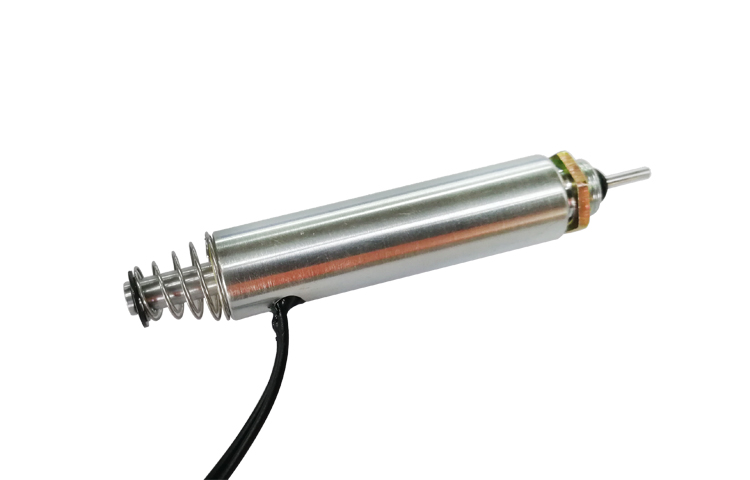

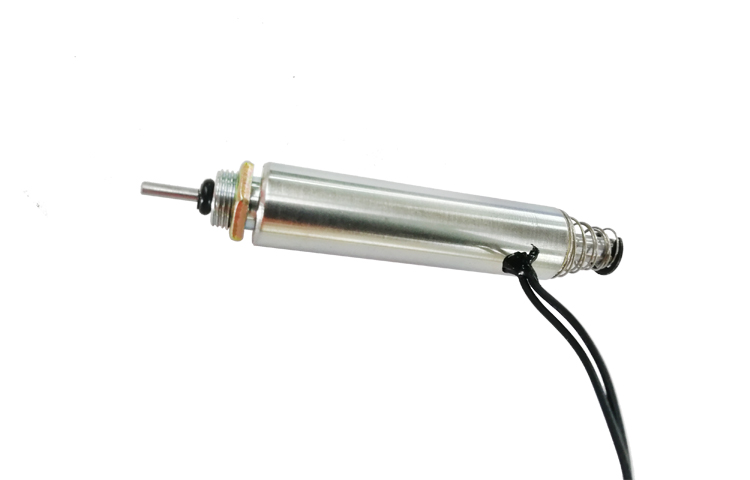

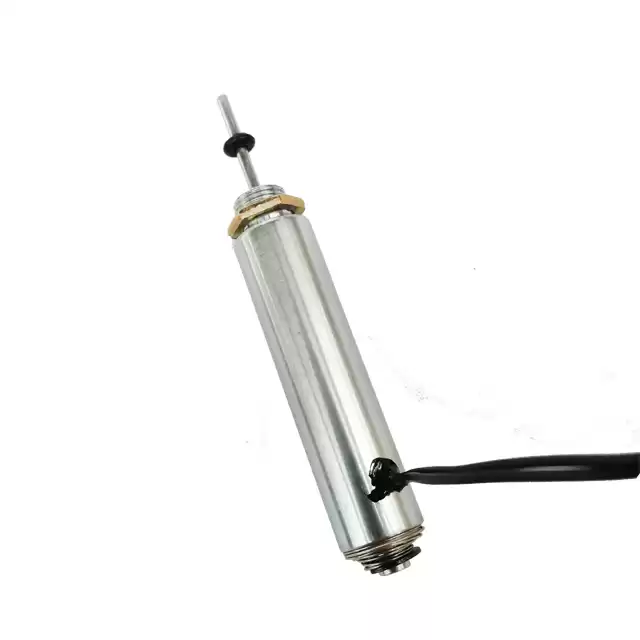

Detailed Images
