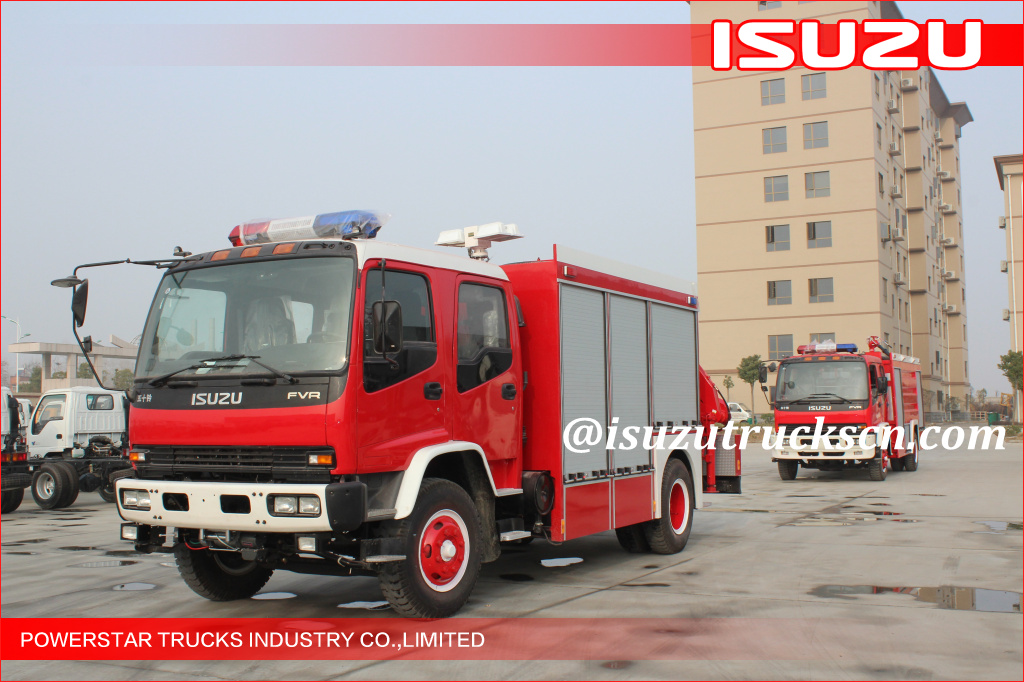

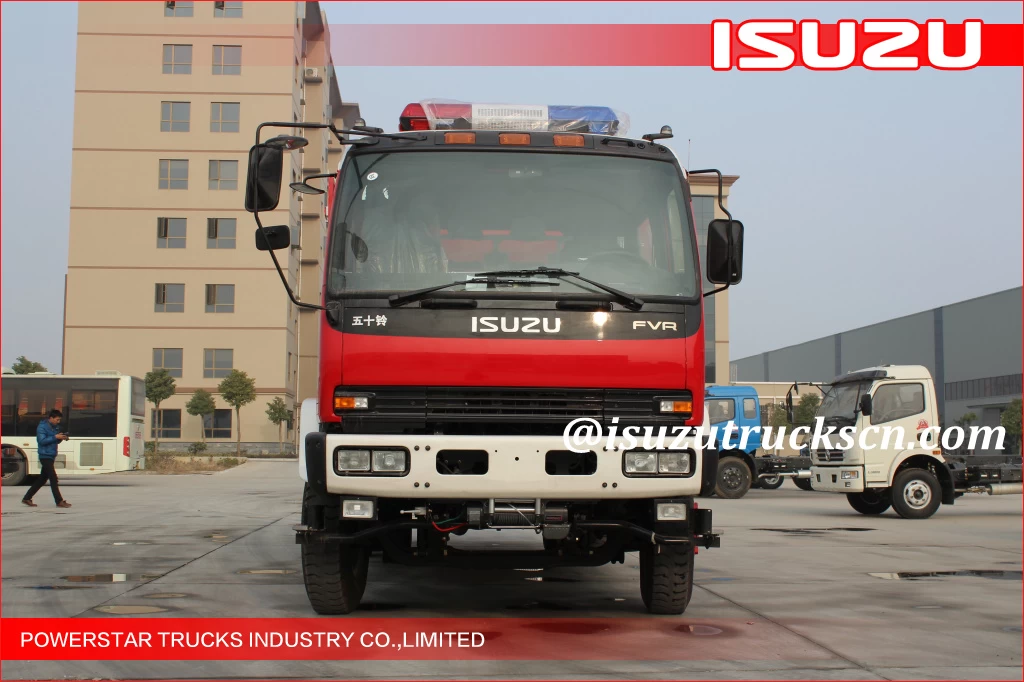

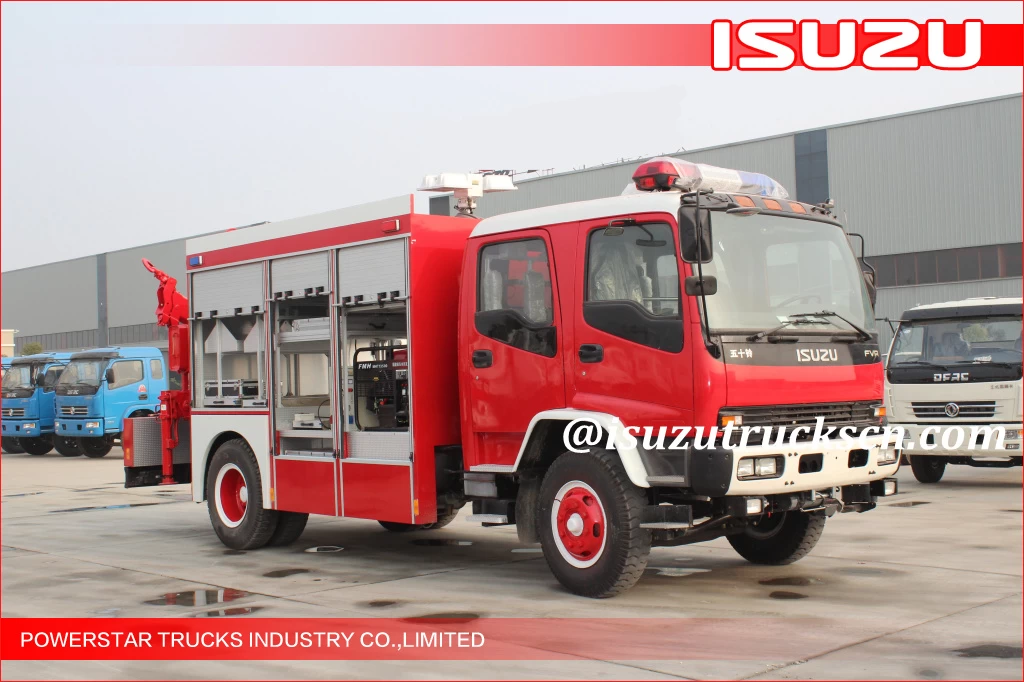

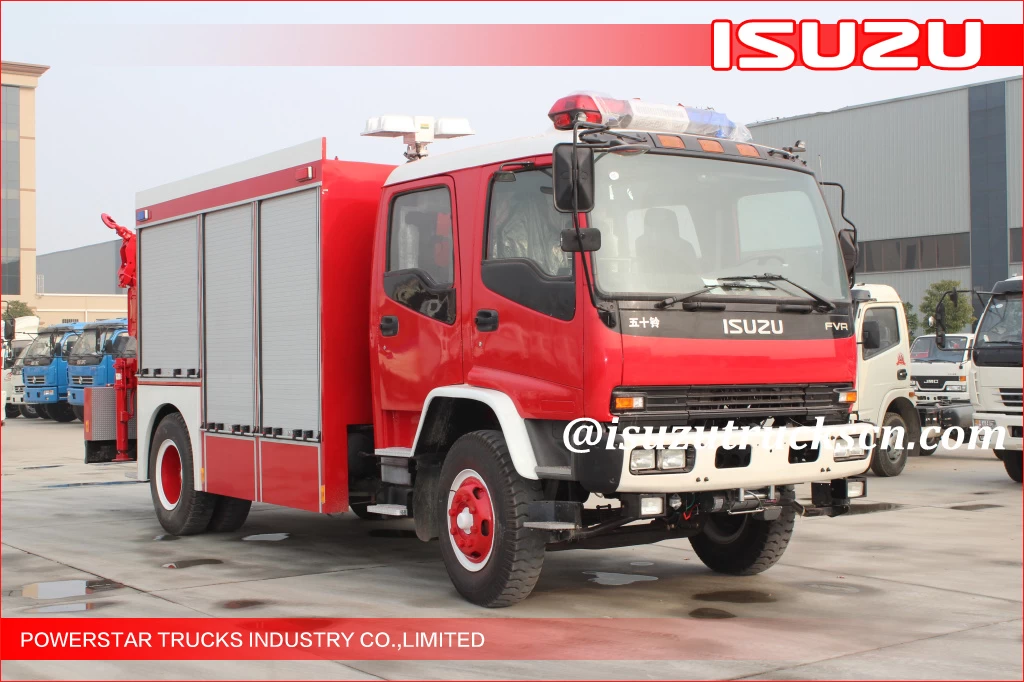

Laos 2016 Isuzu Lighting Emergency Rescue Vehicle Fire Truck with Truck Crane

ISUZU Emergency Rescue Vehicle, ISUZU FIRE TRUCK WITH TRUCK CRANE,ISUZU Lighting FIRE FIGHITNG VEHICLES WITH LAMP, isuzu water foam supply truck, ISUZU FOAM FIRE TRUCK.



2015 Isuzu Lighting Emergency Rescue Vehicle Fire Truck with Truck Crane


Feature:

  With crane function.

  With electric winch.
  With Super Lighting system.
  With power supply.

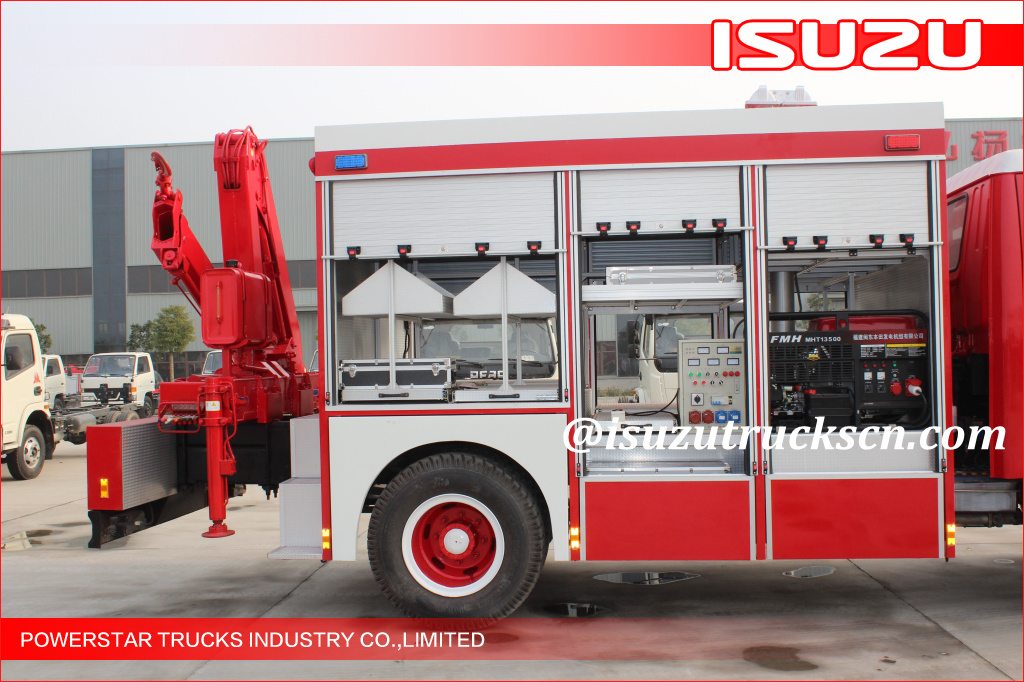

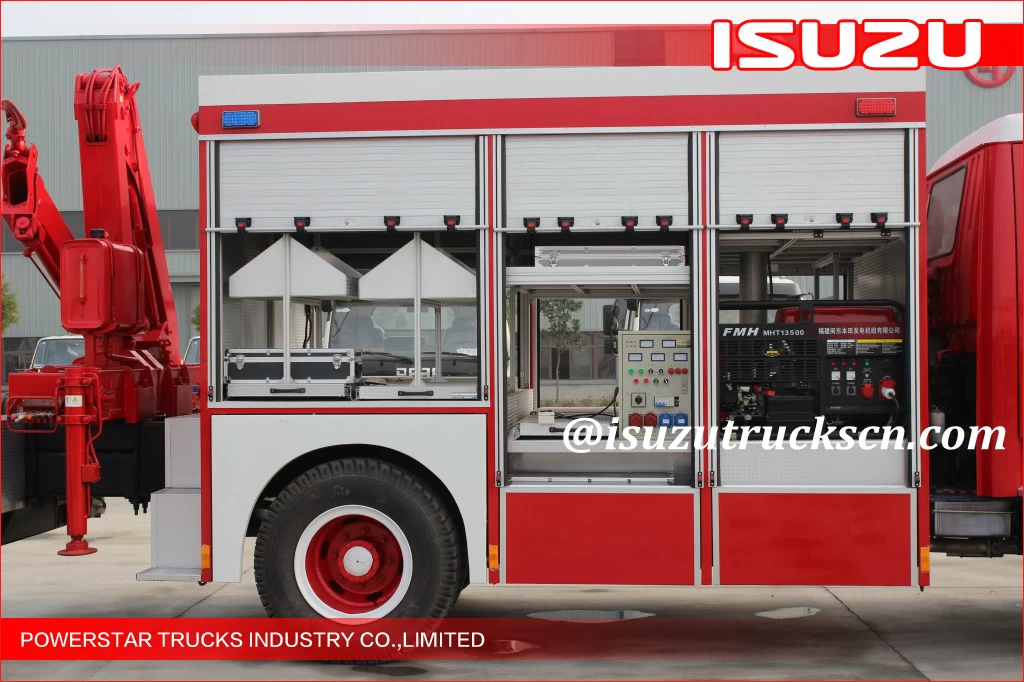

  With ample tools space
  Other tailored function.


  • ISUZU Emergency Rescue Vehicle

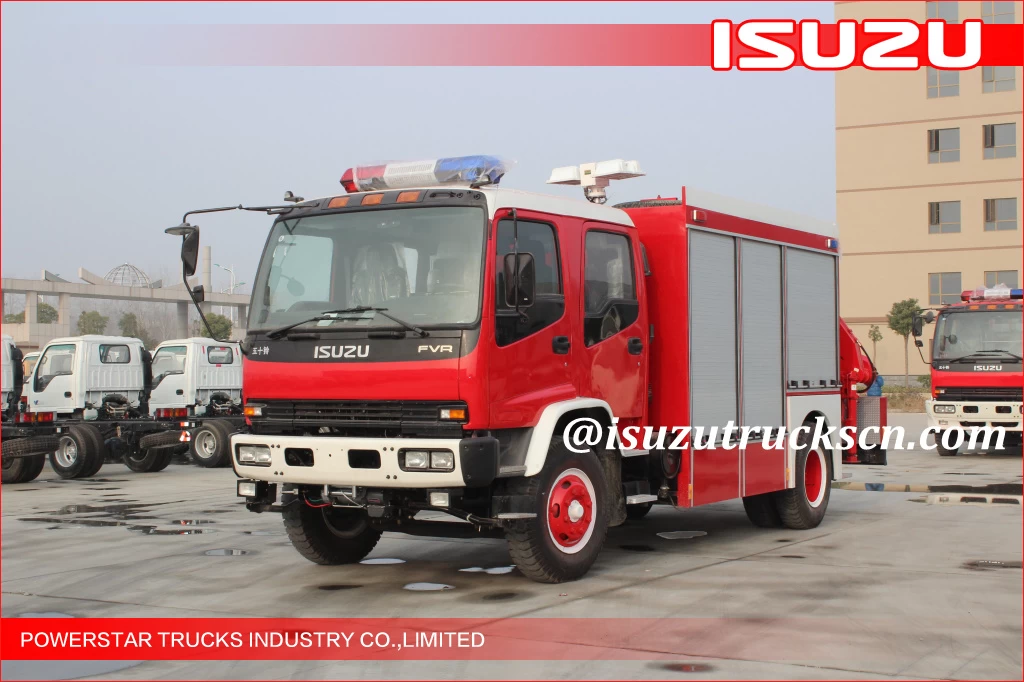

    ISUZU: FVR chassis,Single Row or Double,191kW,Wheelbase:Two shaft 4500mm

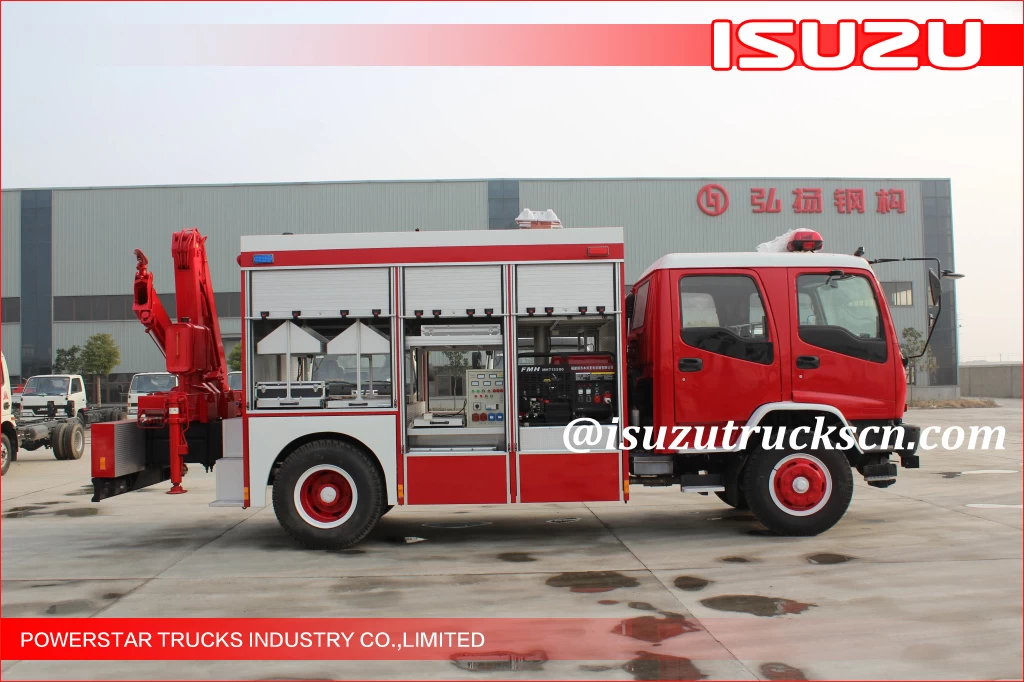

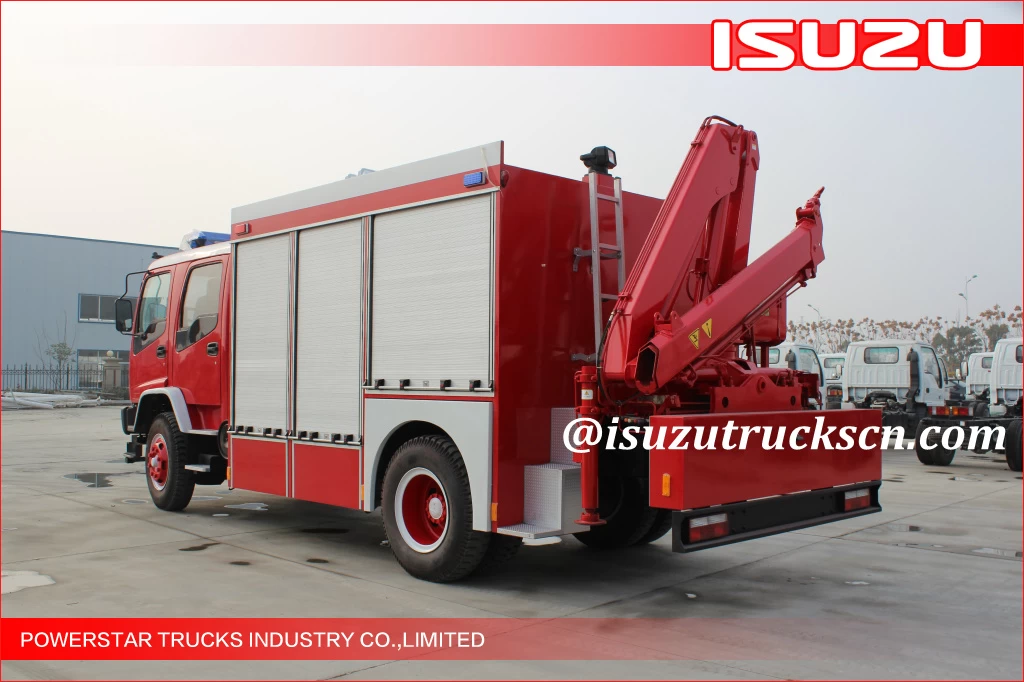

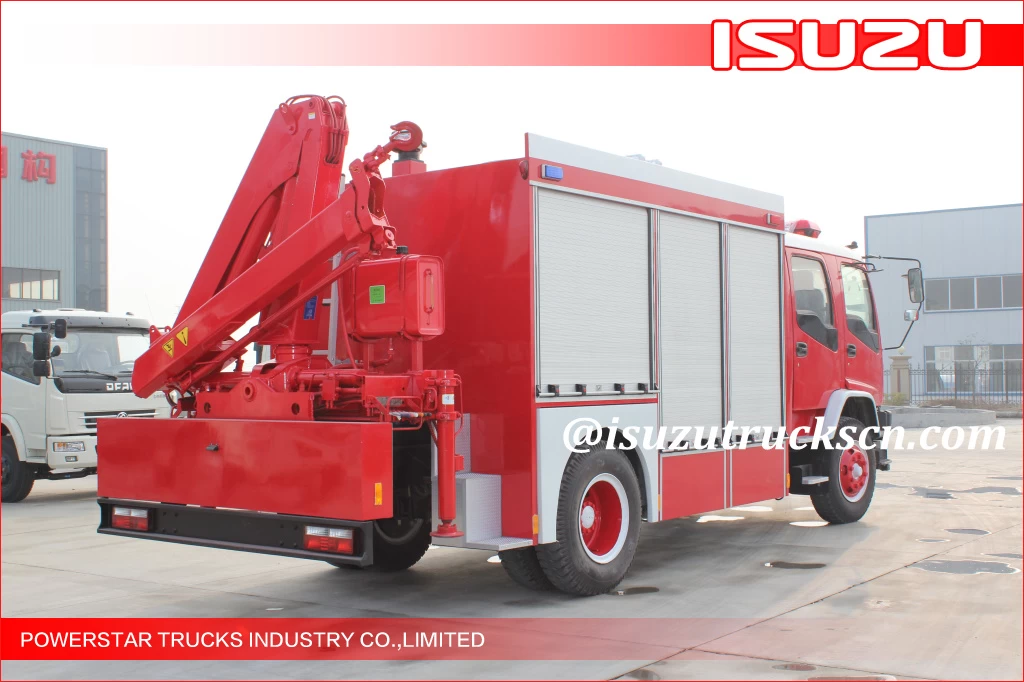

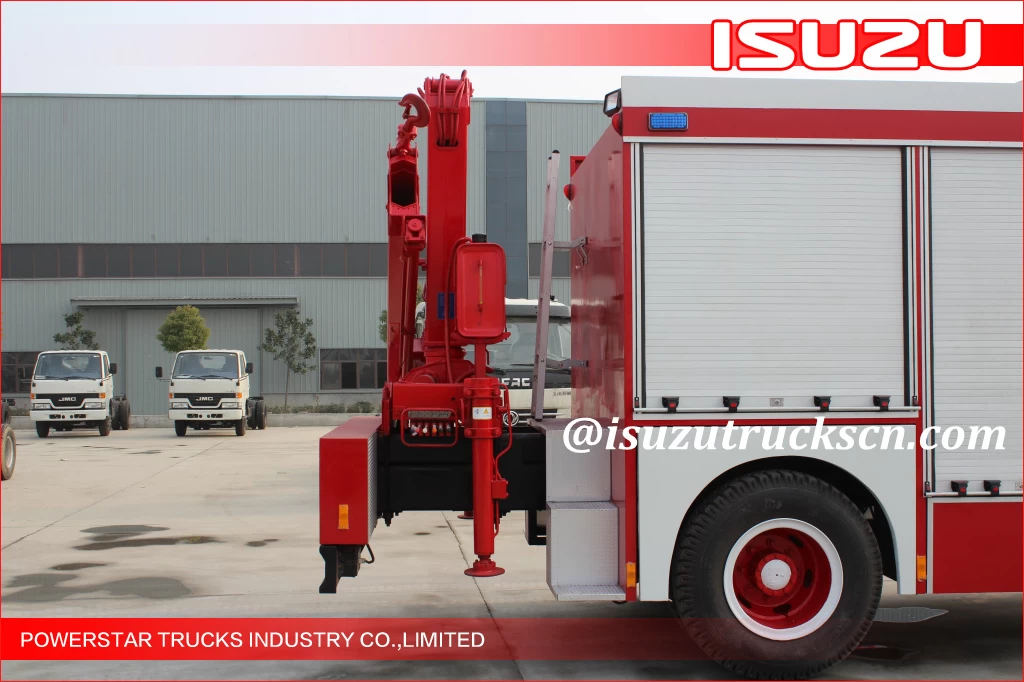

    Truck crane: Max. lifting weight:3.2T,rear-mounted,Outrigger span:4.2m,Max. amplitude:7.56m,Max.working height:10m,Rotation angle:410°

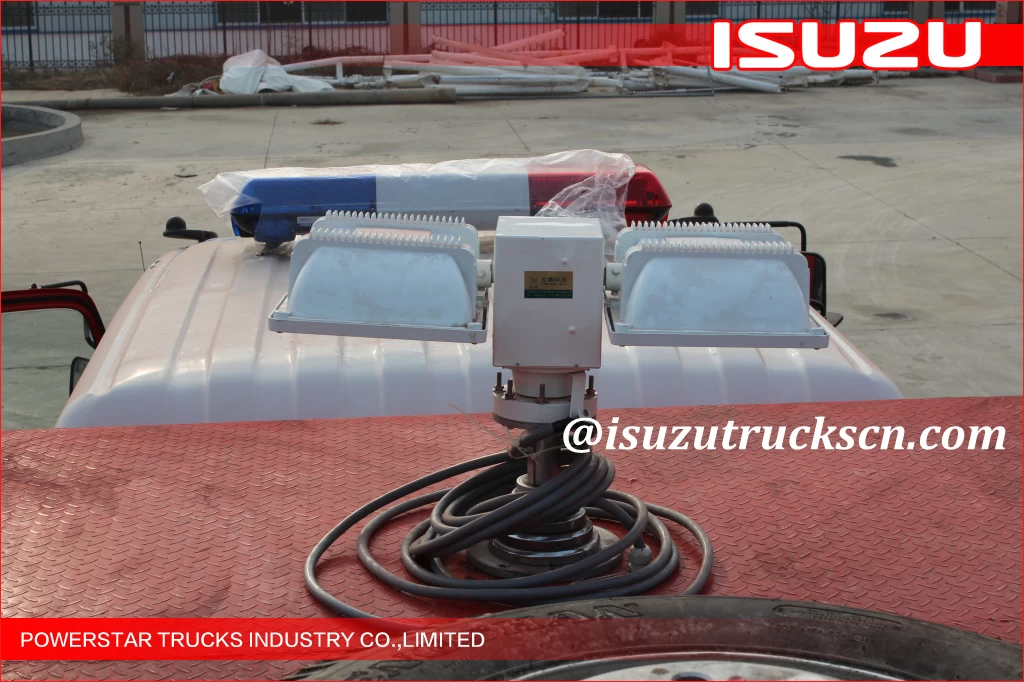

    Light Mast System: Ground height≥8m,Work cycle time≤500S,Level rotary time≤180S,Level rotation angle:-150°TO +150°,Elevation Angle≥+30°,Depression Angle≤-15°,Elevation and Depression Time≤120S
    Traction winch: Max. tension:49kN,10800 kgf,Max. towing speed:3.57 m/min,Front-mounted.

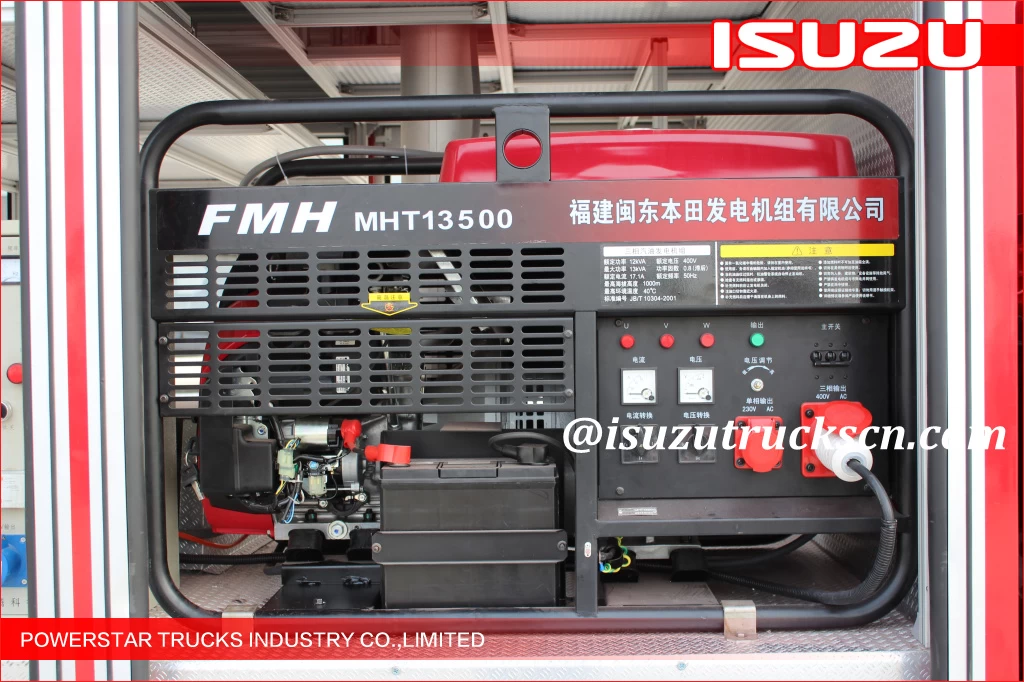

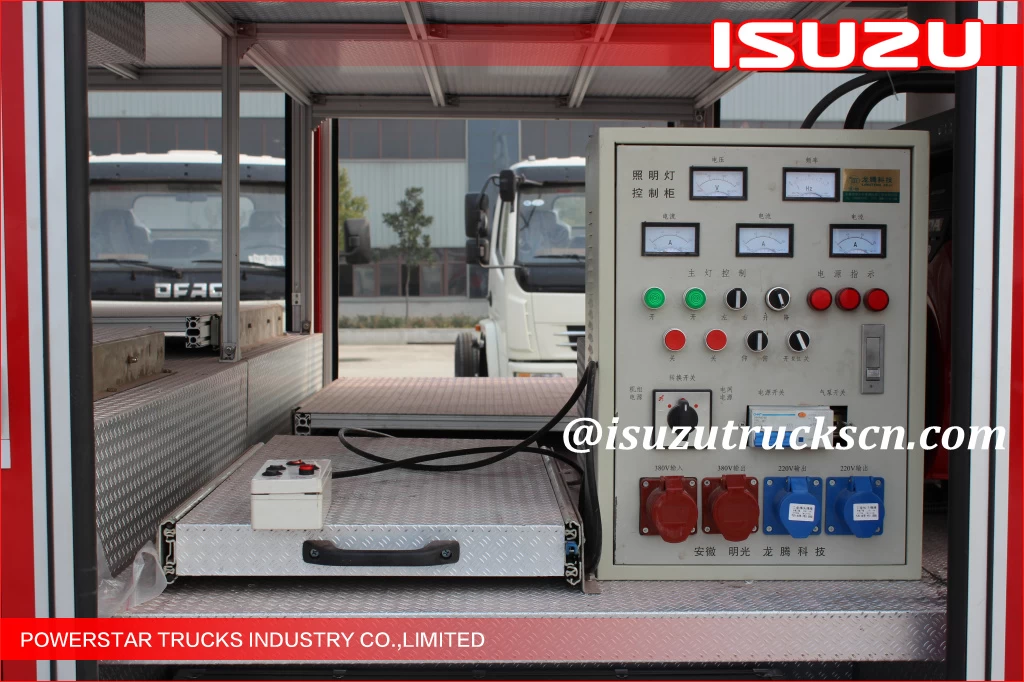

    Generator: HONDA Generator Set,Power:5kW,Rated voltage:220V
    Fume extractor: Mechanic Operating,delivery capacity:9000 m3/h,Power:1.5 kW
    Overall Dimension: 8290×2500×3400mm

     Accessories List:

  • (With below equipment, you can put into fire-fighting immediately)

  • Isuzu Fire-Fighting trucks equipments accessories
  • Isuzu Fire-Fighting Vehicle
  • Recently Customer Build Examples:

  •  2015 Isuzu Lighting Emergency Rescue Vehicle Fire Truck with Truck Crane

  • 2015 Isuzu Lighting Emergency Rescue Vehicle Fire Truck with Truck Crane

  • 2015 Isuzu Lighting Emergency Rescue Vehicle Fire Truck with Truck Crane

  • 2015 Isuzu Lighting Emergency Rescue Vehicle Fire Truck with Truck Crane

  • 2015 Isuzu Lighting Emergency Rescue Vehicle Fire Truck with Truck Crane

  • 2015 Isuzu Lighting Emergency Rescue Vehicle Fire Truck with Truck Crane

  • 2015 Isuzu Lighting Emergency Rescue Vehicle Fire Truck with Truck Crane

  • 2015 Isuzu Lighting Emergency Rescue Vehicle Fire Truck with Truck Crane

  • 2015 Isuzu Lighting Emergency Rescue Vehicle Fire Truck with Truck Crane

  • 2015 Isuzu Lighting Emergency Rescue Vehicle Fire Truck with Truck Crane

  • 2015 Isuzu Lighting Emergency Rescue Vehicle Fire Truck with Truck Crane

  • 2015 Isuzu Lighting Emergency Rescue Vehicle Fire Truck with Truck Crane

  • 2015 Isuzu Lighting Emergency Rescue Vehicle Fire Truck with Truck Crane

  • 2015 Isuzu Lighting Emergency Rescue Vehicle Fire Truck with Truck Crane

  • 2015 Isuzu Lighting Emergency Rescue Vehicle Fire Truck with Truck Crane
