8 Channel Battery Analyzer (10A 20V per Channel) with Laptop & Software for All Types of Batteries &Laptop battery Packs
SPECIFICATIONS
1 TOB-BTS-20V10A Laptop Battery Pack Tester20V10A is a 8 channelbattery analyzing systemfor Li-ion, LiFePO3, Ni-MH, Ni-Cd, and Lead acid battery packs with voltage up to 20V and current up to 10A per channel.
2 Thisbattery analyzeris designed according to the international standard: each channel has an independent constant-current source and a hardware constant-voltage source. Constant-current source and constant-voltage source can be programmed and controlled by user.
3 ThisBattery pack testeris with plug-and-play module design, user can freely remove and add module units without interrupting other units.
4 Notice : A brand new laptop with operating software can be chosen for immediate use.
|
Model
|
Battery pack tester TOB-BTS-20V10A
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Source voltage
|
AC110V-220V±10% Customized, 50HZ
|
|
Input impedance
|
≥1MΩ
|
|
Input power
|
2346.7W
|
|
Channel characteristics
|
Constant current source and voltage source adopt double closed loop
independent structure
|
|
Channel control mode
|
Independent control
|
|
Voltage range per channel
|
Charge : 40mV-20V Discharge : 2.5V-20V
Accuracy : ±0.1%
|
|
Current range per channel
|
Charge : 20mA-10A Discharge : 20mA-10A
Accuracy : ±0.1%
|
|
Output power per channel
|
200W
|
|
Time
|
Current response time
|
0-10A : 20ms
|
|
Step time range
|
1s-365*24h,Time format : 00:00:00(H:Min:S)
|
|
Record condition
|
TimeΔt ：1-60000s VoltageΔU : 40mV-20V
CurrentΔI : 20mA-10A
|
|
Charging mode
|
Constant current charge,constant voltage charge,
constant current and voltage charge
|
|
Discharging mode
|
Constant current discharge,constant power discharge
|
|
Conditions of constraint
|
Time, voltage, current, capacity
|
|
Cycle
|
Cycle range
|
1-65535 times
|
|
Steps pur cycle
|
254
|
|
Protection
|
Power-down data protection,off-line test function and Safety condition setting protection
|
|
Voice
|
≤85dB
|
|
Communication interface
|
Serial ports
|
|
Channel number per unit
|
8
|
|
Dimension(L*W*H)
|
600*600*740mm
|
|
Working temperature/humidity
|
-10-40℃ ≤70%RH
|
Machine accessories

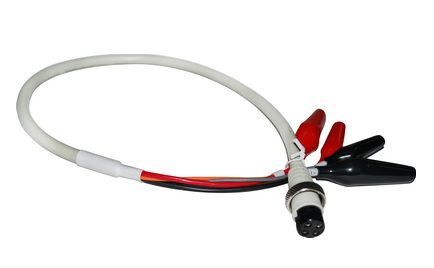

“Pouch cell test clamp”-8pcs “Alligator clamp”-8pcs “Nose line”-8pcs
“Connect line”-1pcs "Customized power cable"-1pcs
