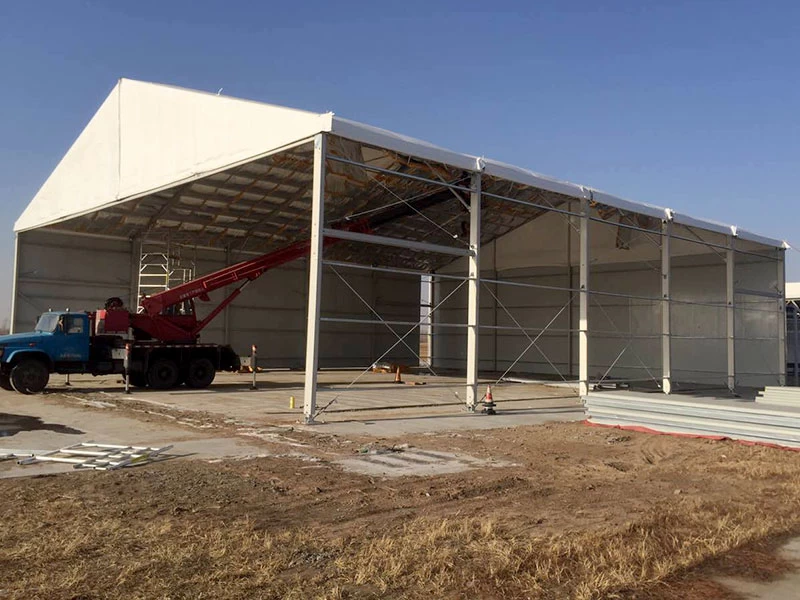

Large Aluminum Sport Shelter Tent
Superb Large Aluminum Sport Shelter Tent are high quality and cost-effective structures to cover any sporting using. The aluminum frame is strong, durable, light in weight, not easy to rust and distort. Superb are providing first class inllumination and full weather protection in any climate. If you are thinking about selecting Aluminum Sport Shelter Tent, Superb tent is your best choice.
Sports Tent Shelter's Frame:
● No maintenance required.
● Extruded 4 channel aluminum hollow profiles with anodized finishing above 12um.
● All steel connectors including small parts have galvanized finishing above 60um.
● Modular character for diverse combination and expansion.
Sports Tent Shelter's Cover:
● Kedered roof fabric and sidewalls provide weather-proof tight coverings.
● Bar tensioning roof & sidewalls system.
● Different brand fabric for option: China Fabric, Ferrari, Sioen, Verseidag.
Sports Tent Shelter's Available sizes:
● Clear span available from 3m to 60m.
● Length: adjustable by 3m unit (SS & WS series) or 5m unit (for other series).
The Specification of Large Aluminum Sport Shelter Tent
|
Type
|
Span (m)
|
Side height (m)
|
Ridge height (m)
|
Bay Distance (m)
|
Roof Pitch
|
Longest Component (m)
|
Wind Load (km/h)
|
|
LS20/4-5
|
20
|
4
|
7.2
|
5
|
18°
|
10.7
|
100
|
|
LS25/4-5
|
25
|
4
|
8
|
5
|
18°
|
10.7
|
100
|
|
LS30/4-5
|
30
|
4
|
8.9
|
5
|
18°
|
10.7
|
100
|
|
Main frame Profile
|
256x120x5mm（4-channel)
|
|
Eave Connection
|
Hot-dip Galvanized Twin Steel Plate
|
|
Roof Fixing
|
Bar Tension
|
|
Frame Material
|
Hard Pressed Extruded Aluminum
6061/T6
|
|
Cover Material
|
Double PVC coated Polyester textile,
flame retardant to DIN4102 B1,M2,650-900g/sq.m
|
