Professional 6M Pipe Metal Laser Cutting Machine
|
Model
|
Laser
|
Tube length
|
Cutting range
|
Application
|
|
F6015GE
|
1KW-2KW
|
6 Meters
|
20-150mm
|
SS CS brass, aluminium pipe and tube
|
|
F6020GE
|
1KW-2KW
|
6 Meters
|
20-200mm
|
SS CS brass, aluminium pipe and tube ,U
beam. L beam..
|
|
F6030GE
|
1KW-2KW
|
6 Meters
|
20-300mm
|
SS CS brass, aluminium pipe and tube ,U
beam. L beam..
|
|
Cyptube/Protube
control.WSX or Precitec cutting head.auto materials feeding and finished
parts collection….
|
F6020GE Professional Large Laser Tube Cutting Machine
The cnc laser tube cutting machine applies for cutting square tube ,round pipe ,rectangular tube,oval tube ...and some U beam ,L beam ,profile. Baisheng's tube laser features high efficiency,high cutting accuracy,cost-effective.
Tube laser cutting machine F6020GE adopt most sophisticated fiber laser source IPG/ Raycus , combining self-design Gantry CNC machine and high strength welding body. After high temperature annealing and precision machining by large CNC milling machine, it has good rigidity and stability with imported high precision and high speed, linear guide drive, high-speed servo motor.
Unique aviation grade Aluminum extruding beam, no any pinhole or air hole is allowed ,no any crack. two times advanced heat treatment process, high strength, light weight, good rigidity.
Fiber laser has a series of advantages, such as high beam quality, high brightness, high conversion rates, maintenance-free, stable and reliable operation of low cost and small size, etc. Air-assisted cutting is the most advanced level of laser cutting, which is particularly suitable for stainless steel, carbon steel, alloy, brass, copper, titanium and other metal materials precision cutting. It is widely used in metal products, bicycle, metal furniture, fitness equipment, sports equipment, farm machinery, display shelf, fire control.
China CypTube Laser Control System
Using the state-of-the-art China FSCUT5000 Tubular Cutting System Features:
1.Making Remedy for deviation of tube enter
,cut down the strict requirement for chucks gripping, higher efficiency and cutting
accuracy of opposite holes in the tube.
2. bases on bus real-time system and
following control combination. Faster cutting on corners ,the following status more
stable and more reliable cutting quality.
3.the system supports the following
function of the materials support rods,.the rods are controlled by the FSCUT5000 system according variable
tubes heights and chucks movement.
4.supports cutting pipe by feeding through
hollow chucks to shorten the machine tool length, highly automation.
5.It can come with advanced tubular
products nesting software, TubesT, easier doing 3D drawing, supporting cutting
path edit of hollow sections ,L beams, H beams, U beams…edge-shared laser cutting
saves time and materials.

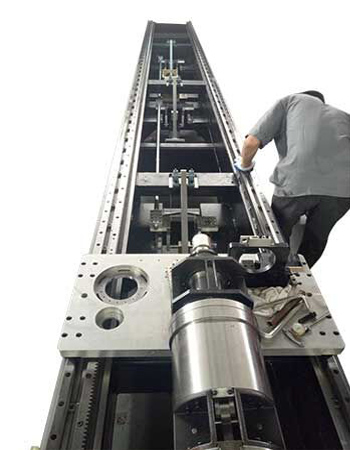

The advanced materials support rods suitable for supporting varieties sizes and shapes of pipe and tube.
FSCUT5000 system is the most advanced premium system from Shanghai Friendness company
that can smartly control the rods up/down movement according chucks and tubes' movements,
which effectively improves cutting efficiency and accuracy.
|
|
Baisheng Tube Laser Cutting Machine in User Jobshop:
TUBE LASER IN EXHIBITION AND USER FABRICATING SHOP.

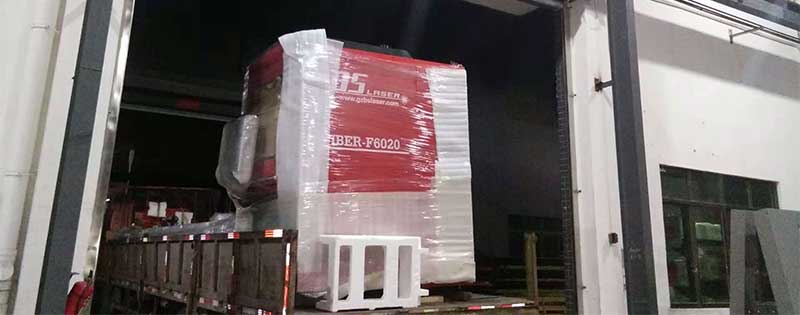

MACHINE DELIVERY TO USER' JOBSHOP
