Large Outdoor Architectural Aluminum LED Post Top Lights

This outdoor black LED post top area light is very suitable for commercial applications (such as parking lots, large sidewalks, or parks) security inspections, and decorative pillar top lighting. The classic appearance design and powerful LED technology application aim to replace metal halide lamps. It is an efficient and inexpensive solution to meet your outdoor lighting needs.

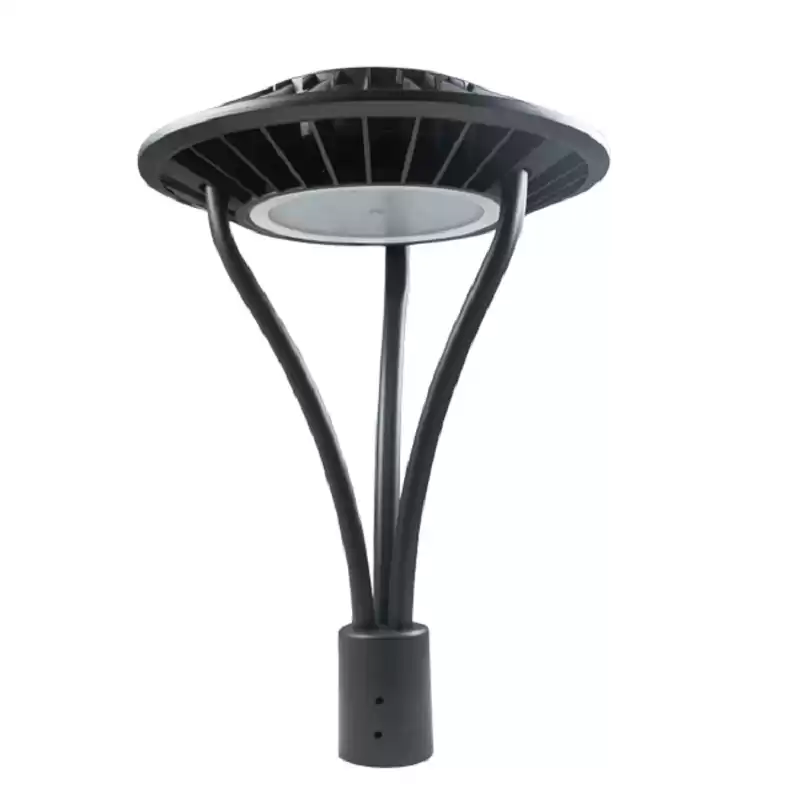

Large Outdoor Architectural Aluminum LED Post Top Light


The 200A series high performance LED post top light for use in large outdoor areas like auto dealership parking lots lighting, corporate parks, and retail settings to replace 250W MH fixture. Tested beyond industry standards, these LED fixtures feature IES Type V Specification Grade Optics, which provide a wider field of view and directs the light down so it is good for the environment and wildlife as well. A truly "GREEN" product, this LED fixture is ETL/DLC/RoHS Compliant, has no mercury, or lead, and emits no UV light.


Morstar is a trusted,global company with a keen insight into the market. We konw lighting and provide products with excellent quality, reliability and functionality.



FEATURES:

Die cast Aluminum house, excellent thermal control
• High-performance Philips light source and UL drive output
• Dimmable: 1-10V DC/PWM/Resistor (3 IN 1)
• Air-flow fins for maximum heat dissipation
• Compatible with standard 2 3/8" and 3" tenons
• Beam Angle Type V
• Certified to U.S. and Canadian standards. IP65 Rated
• With Sensor: Microwave sensor Daily sensor available


SPECIFICATION

EAL201A-50W

EAL202A-75W

EAL203A-100W

EAL204A-150W

EAL205A-170W

Power Consumption

50W

75W

100W

150W

170W

Equivalent Wattage

175W HID

250W HID

400W HID

600W HID

600W HID

Lumens Delivered

6,500 lm

9,750 lm

13,000 lm

19,500 lm

22,100 lm

Efficacy

130 lm/W

CRI

>75

Color Temperature

3000K / 4000K /5000K /5700K

Input Voltage

120-277V


CONSTRUCTION:

• Precision die-cast aluminum With excellent external cooling fins
• Clear tempered glass lens,Type V distribution
• Chip and fade resistant polyester powder coat finish
• LED performance exceeds industry standards for chromatic

RECOMMENDED USE:
• Parking lots
• Corporate parks
• Retail areas

WARRANTY:
7-year standard warranty with labor allowance* (further details available at www.morstar.com/warranties)
*Warranty Limitations: Product must be rated for the application per the Product Data Sheet (PDS); operated <16 hrs; in ambient of

-40°F to 122°F.


APPLICATION:

LED post top light 60W post top street area lighting

FAQ:
1. What`s the warranty of the lamp?
- For UL/DLC items we provide 5 years warrantly, others have a 2 years warrantly.
2.Can I have a sample order for led light?
-Yes, we welcome sample order for led light to test and check quality.
Mixed samples are acceptable.
3. What about the lead time?
--Samples can be delivered in about 1 week, and bulk orders will take about 2 to 3 weeks.
4. What about the quality?
- Select high quality materials.
- 48 hours aging test to end defective products.
- Quality control testing before shipping.
- Good package to insure safety.
5. Where are your main markets?
- North American and Latin American.And we have LED lighting distribution warehouses in  California,Texas and Michigan
6. Can you design new model?
- Yes, we can open new mould according to your drawings and produce.
7.Any suggestion? Please contact us.
