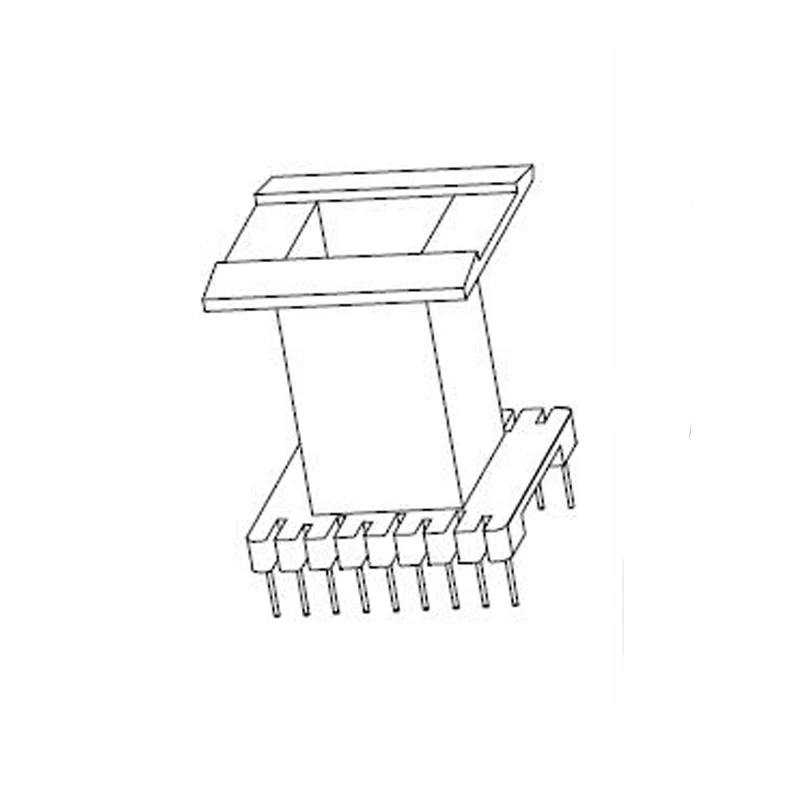

Large Power Transformer EE85 Vertical Bobbin 9+9 Pins

SMPS transformer EE85 bobbin. Pin Pitch=5.5mm,Bobbin Size=59.5mmX54.9mmX63.9mm,Parallel distance=49.5mm. We are China transformer bobbin factory, we have various series bobbins tooling, for special size bobbin, we can make new tooling to meet reuirement.

Facebook Twitter Pinterest LinkedIn 分享

EE85 bobbin for power supply transformer, which has low noise, low power loss, higher efficiency and stability. Welcome customzied transformers, we can provide samples for testing.


Product Specification

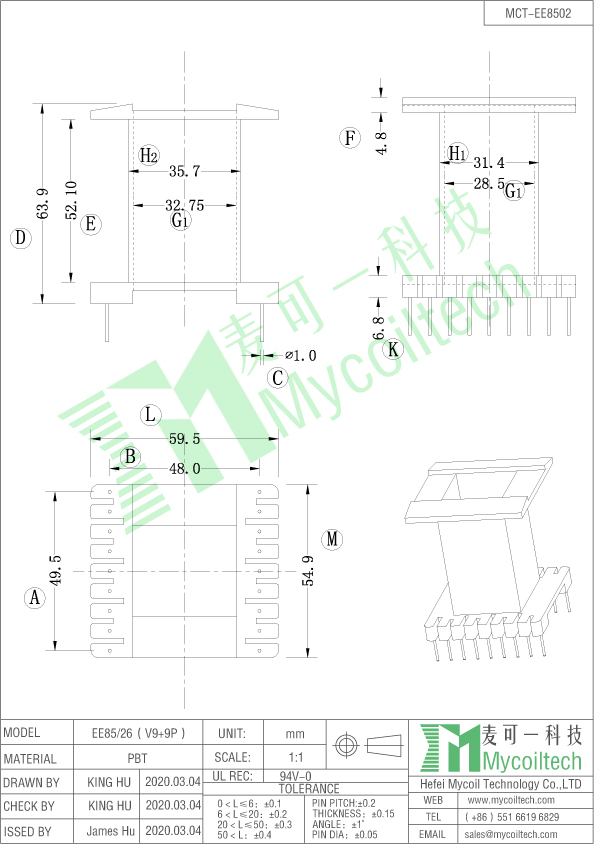

EE85/26 transformer bobbin datasheet


For more details, welcome to contact us:

Email: sales003@mycoiltech.com

Skype: live:sales003_125

Contact: Miss Lily
