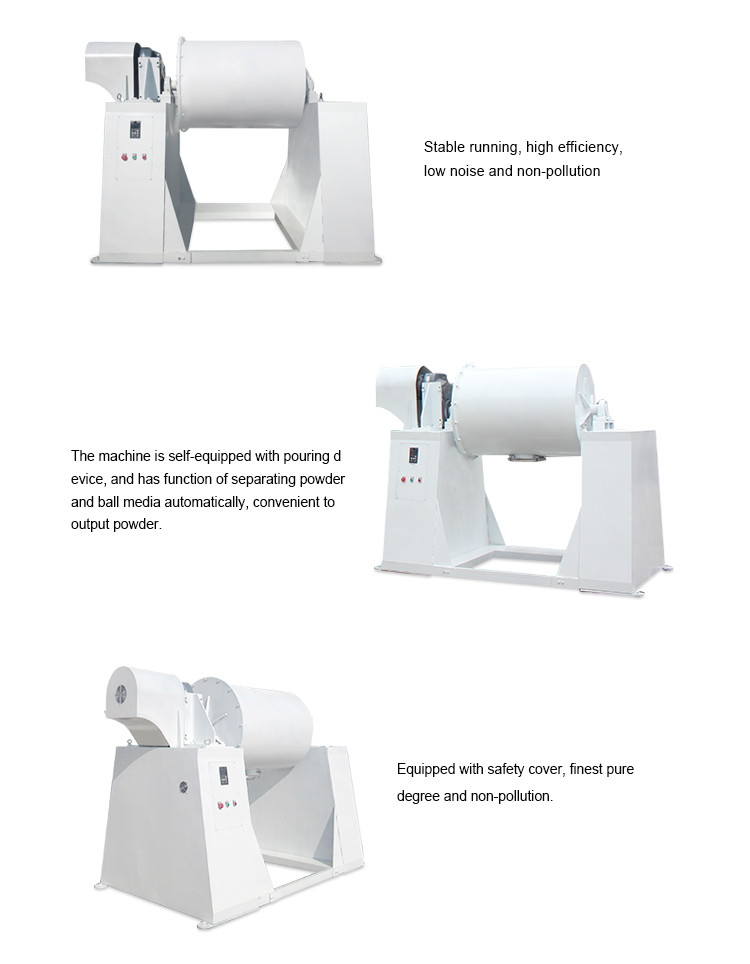

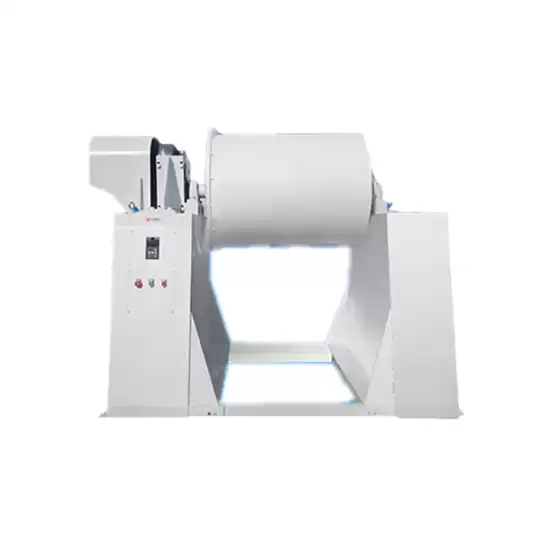

Large Roll Ball Mill Machine For Batch Material Production
Large roll ball mill is a kind of equipment used for ultra-fine grinding and mixing for batch production, which is also called rolling machine altar. The machine is preferred equipment for scientific research, teaching, experiment and production due to its advantages such as beautiful design, compact structure, easy operation, high efficiency, and uniform granularity. It is widely applied to industries of electronic material, magnetic material, biological medicine, ceramic glaze, metal powder, nonmetallic minerals, new materials and etc.
Working Principle
When ball mill works, the grinding media and the materials of the cylinder are rotated to a certain height. Due to the gravity, they fall down from the tube wall. The materials are crushed by impact action of the grinding media, and friction and shearing action of grinding media’s rolling and sliding.
Advantages

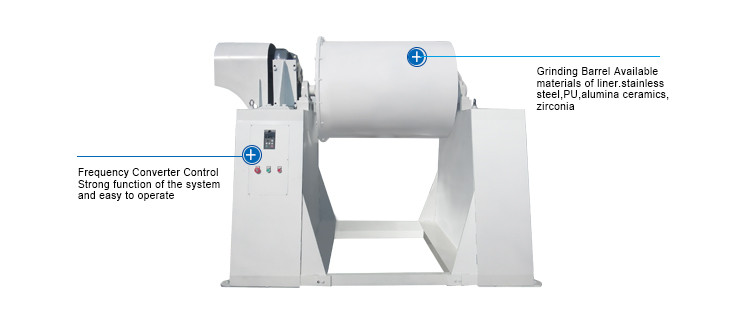

Optimal design of rotating speed is adopted in the machine, where mill jar is dragged to rotate by rubber roller, balls inside the jar make incline flow movement and disperse materials, thus it obtains best effects of grinding. As result, materials are ground to micron powder. Timing control panel is adopted in the machine with controlling functions of pausing and cumulative timing, and you may set working time according to requirement at any time. It saves time and labor, and is easy for operating.
Feature
The machine is extensively applied to in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.
Application Cases of Planetary Ball Mill
|
Main Parameters of Large Roll Ball Mill
|
|
|
|
Model No.
|
Volume
(L)
|
Rotate Speed Range
(rpm)
|
Material Capacity
(L)
|
Power Supply
|
Available Jars
|
Feed Size
(mm)
|
Output Granularity
(mesh)
|
Adjustable Mode of Rotate Speed
|
|
|
QM-100L
|
100
|
20~45rpm
|
35
|
2.2KW/380V
|
Carbon Steel,
Stainless Steel,
Nylon Liner,
Alumina Ceramic Liner,
PU(polyurethane) Linner,
PTFE Liner.
|
≤20
|
≥300
|
Frequency adjuster
or Fixed setting for buyer's options
|
|
|
QM-200L
|
200
|
20~40rpm
|
70
|
4KW/380V
|
≤20
|
≥300
|
|
|
QM-300L
|
300
|
20~38rpm
|
105
|
5.5KW/380V
|
≤20
|
≥300
|
|
|
QM-500L
|
500
|
20~36rpm
|
175
|
7.5KW/380V
|
≤20
|
≥300
|
|
|
QM-1000L
|
1000
|
20~34rpm
|
350
|
11KW/380V
|
≤30
|
≥300
|
|
|
QM-2000L
|
2000
|
20~34rpm
|
700
|
22KW/380V
|
≤30
|
≥300
|
|

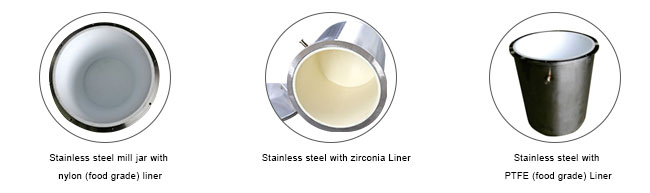

Besides the planetary ball mill machine, our factory provides all kinds of mill pots，like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
