Machine Characteristics & Technical Parameters

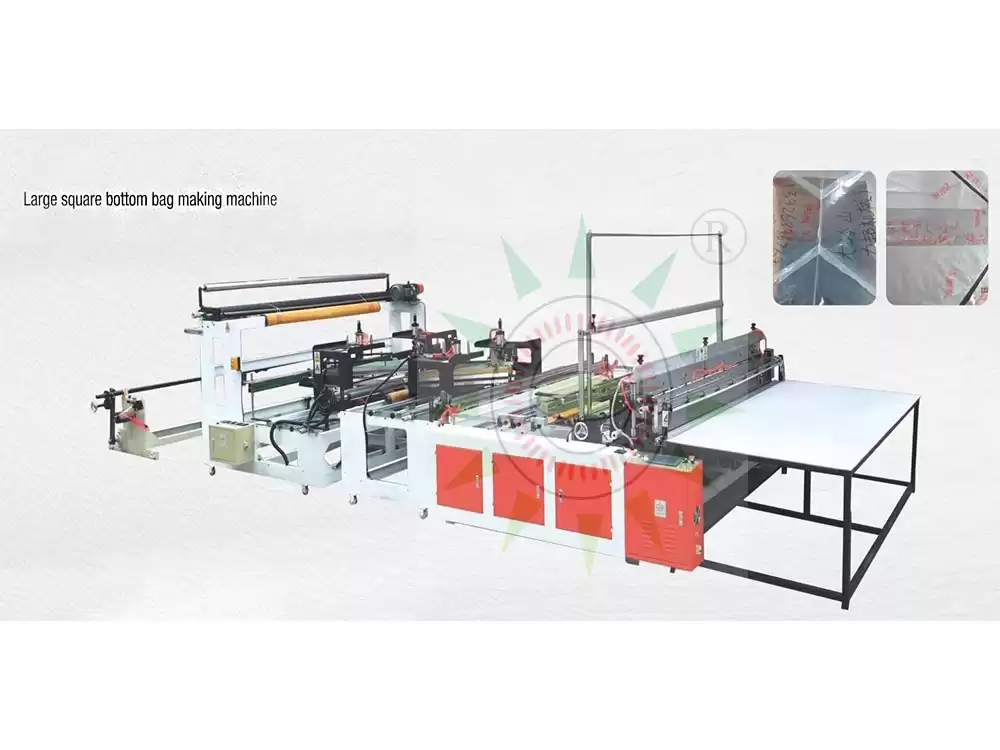

- The machine is suitable for processing EPE foam, PE, PO film materials sealing and cutting in bags, with firm sealing , fine folding, Full automatic tracking sensor. It is mainly used to making plastic square bottom bag.
- This series machines adopt computer control, photocell tracking, electrostatic eliminator, automatic counting, automatic thermostatic control and alarm devices, with stable performance, easy operation and firm bottom sealing.
- One machine with multi-purpose, Different sizes are accepted customized.
| Model |
XBL-SQB800 |
XBL-SQB1000 |
XBL-SQB1300 |
XBL-SQB1500 |
XBL-SQB1800 |
| Voltage |
Single phase 220V |
Single phase 220V |
Single phase 220V |
Single phase 220V |
Three-phase four-wire 380V |
| Total power |
7.6KW |
9.7KW |
11KW |
12.3KW |
15KW |
| Average power |
5.7KW |
6.7KW |
7.2KW |
7.8KW |
10.6KW |
| Film width |
100-750MM |
100-980MM |
100-1280KW |
100-1480MM |
100-1680MM |
| Bag length |
200-3000MM |
200-4000MM |
200-4000MM |
200-4000MM |
200-5000MM |
| Max speed |
5-60PCS/MIN |
5-55PCS/MIN |
5-50PCS/MIN |
5-40PCS/MIN |
5-40PCS/MIN |
| Weight |
1100KGS |
1350KGS |
1550KGS |
1780KGS |
2150KGS |
| Length |
6500MM |
7500MM |
7500MM |
8900MM |
9800MM |
| Width |
1400MM |
1600MM |
1800MM |
2000MM |
2200MM |
| Height |
1700MM |
2000MM |
2200MM |
2500MM |
3000MM |
| Beveling width |
350MM |
450MM |
600MM |
650MM |
700MM |
Details Show
