Tube and Hollow Section Laser Cutting Machine
|
Model
|
Laser
|
Tube length
|
Cutting range
|
Application
|
|
F6015GE
|
1KW-2KW
|
6 Meters
|
20-150mm
|
SS CS brass, aluminium pipe and tube
|
|
F6020GE
|
1KW-2KW
|
6 Meters
|
20-200mm
|
SS CS brass, aluminium pipe and tube ,U
beam. L beam..
|
|

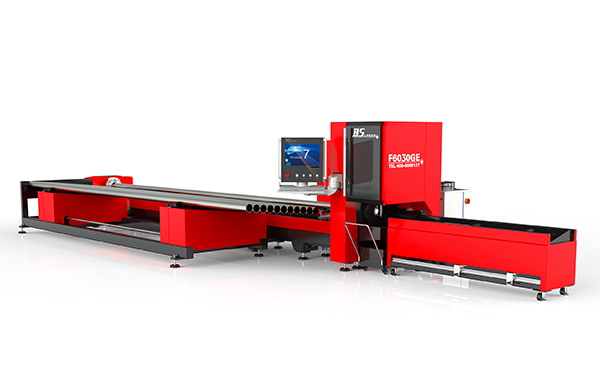

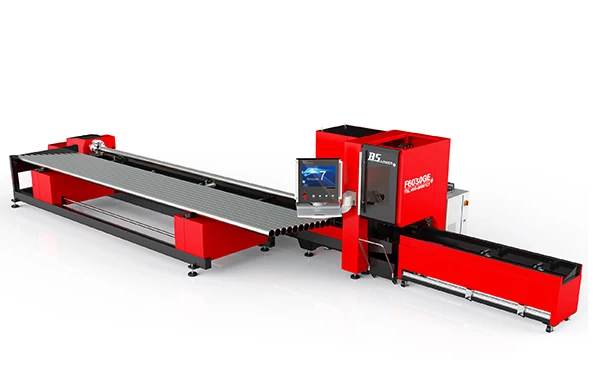

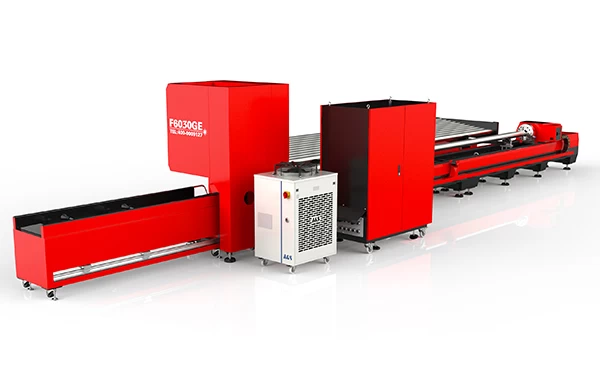

F6030GE
|
1KW-2KW
|
6 Meters
|
20-300mm
|
SS CS brass, aluminium pipe and tube ,U
beam. L beam..
|
|
Cyptube/Protube
control.WSX or Precitec cutting head.auto materials feeding and finished
parts collection….
|

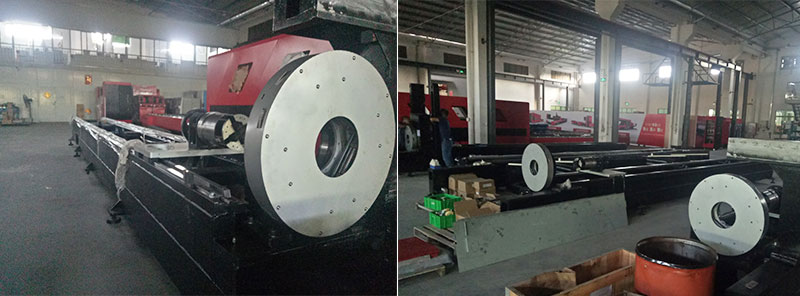

workshop machine photos:
ChinaTube and Hollow Section Laser Cutting Machine Features:
·
Max raw material length – 6m and options
·
Weight capacity 15KG per metre.
·
Max outside dia. – 200mm
· Auto loading/feeding tube: storage of 7 tubes.
. Follow-up Coordinate positioning tube supporting system (unique)
. Dual pneumatic control chucks-more stable.
High cutting accuracy but economic price
Advanced leading cypcut5000B TubePro control software from China
Baisheng Tube Laser cutting machine its
capacity to process – tubes made besides carbon steel and stainless steel tubes – tubes made of copper, brass and aluminium.
With the pipe laser F6020GE fabricators can provide precise, sub-contract laser tube cutting
services cutting solution for all your
tube, box and hollow section cutting requirements.
Compared to conventional processes such as
sawing, drilling and milling, innovative features implemented during the design
stage, laser tube cutting can result in a reduction of manufacturing costs and
lead times for clients. Find out how simple design changes such as
slotting, tagging and marking can save you time and money.
Bslaser tube and box laser cutting machine can
process highly complex shapes including mitre cut, cod mouth, and special
profiles. Offering a quick, precise and effective solution at a fraction of
traditional fabrication costs

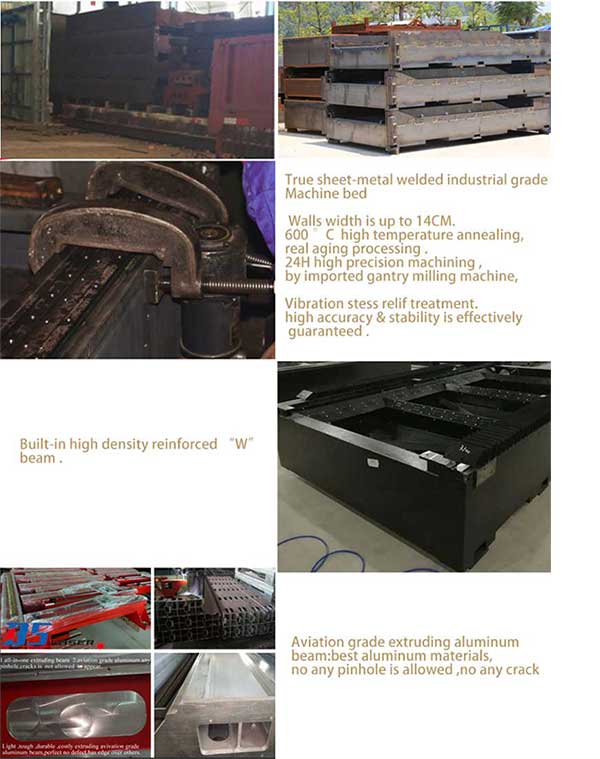

Baisheng builds better Laser machine frame:
the entire machine frame is finished in a single
process by gantry type 12M milling machine from South China to ensure high
accuracy of 0.02mm per meter ,which can highly improve the cutting accuracy.
Each machine bed needs to navigate
the pathway of 12 hours annealing under temperature of 650℃ to guarantee there is no deforming,
no residual stress but more durable.

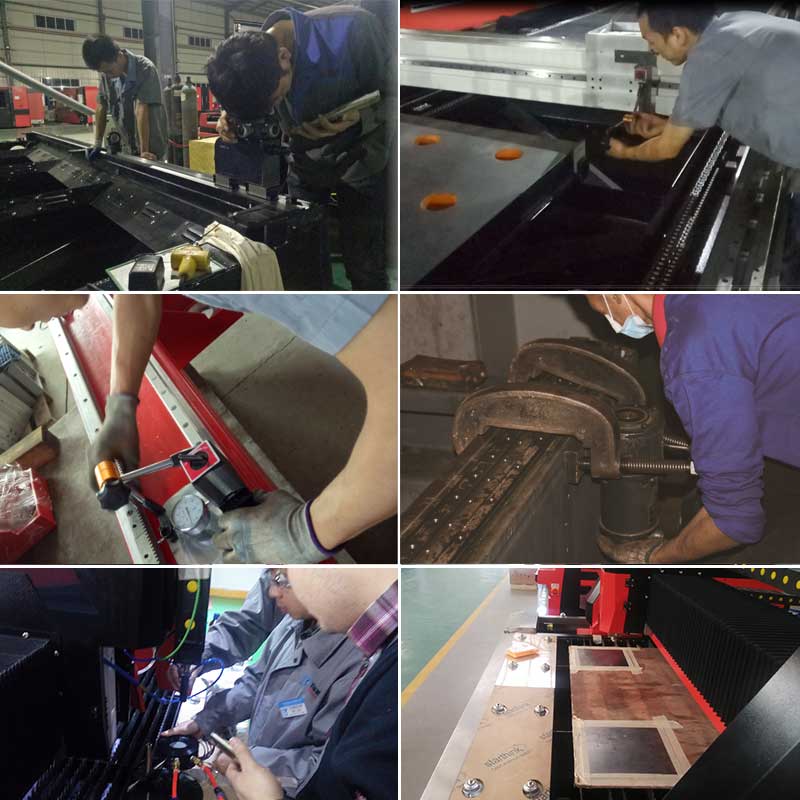

Accuracy is far more importance in Laser machine manufacturing.Check Baisheng engineers' quality control.
