Ai Power Generator Standards
The engine performance corresponds to ISO 3046, BS 5514 and DIN 6271. The technical data applies to an engine without cooling fan and operating on a fuel with calorific value of 42.7 MJ /kg (18360 BTU/lb) and a density of 0.84 kg/liter (7.01 lb/US gal), also where this involves a deviation from the standards. Power output guaranteed within 0 to +2% att rated ambient conditions at delivery. Ratings are based on ISO 8528. Engine speed governing in accordance with ISO 3046/IV, class A1 and ISO 8528-5 class G3 Exhaust emissions The engine complies with Tier 2 and TA-luft exhaust emission regulations.
|
Unit Type
|
KTA50-G8
|
|
Power
|
1500KVA/1200KW
|
|
Engine Model
|
KTA50-G8
|
|
CyI.
|
4L
|
|
Bore/stroke(mm)
|
108/130
|
|
Fuel consumption(g/kwh)
|
213
|
|
|
|
Genset Technical Data
|
|
Genset Model
|
AI-1500
|
|
Rated Voltage
|
110-600V(Can be adjusted)
|
|
Rated Frequency
|
50HZ
|
|
P.F(COS)
|
0.8
|
|
Prime Power
|
1100KW
|
|
Standby Power
|
1210KW
|
|

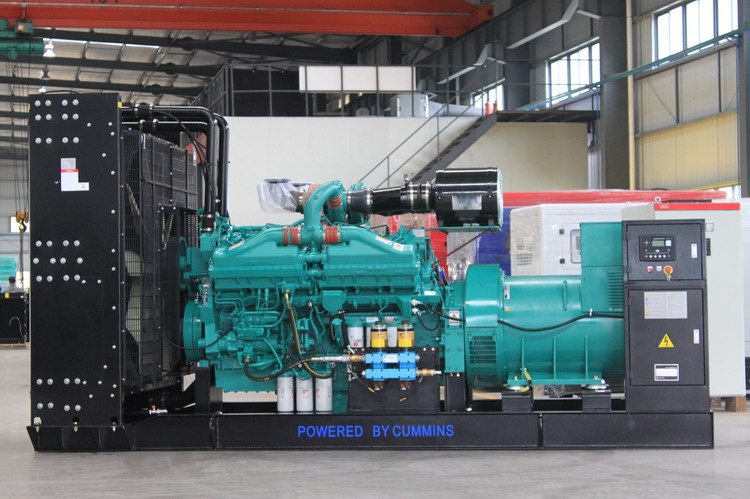

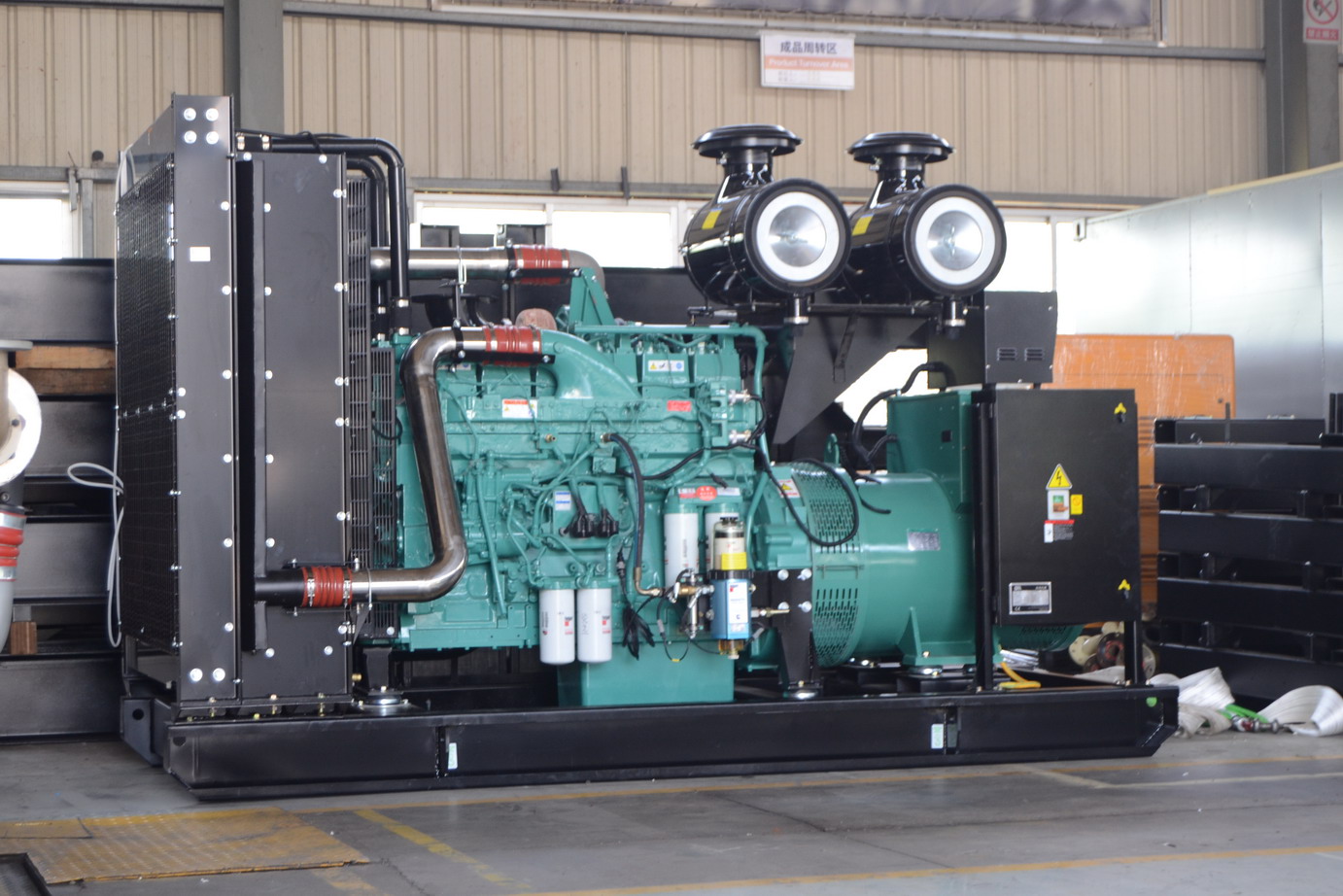

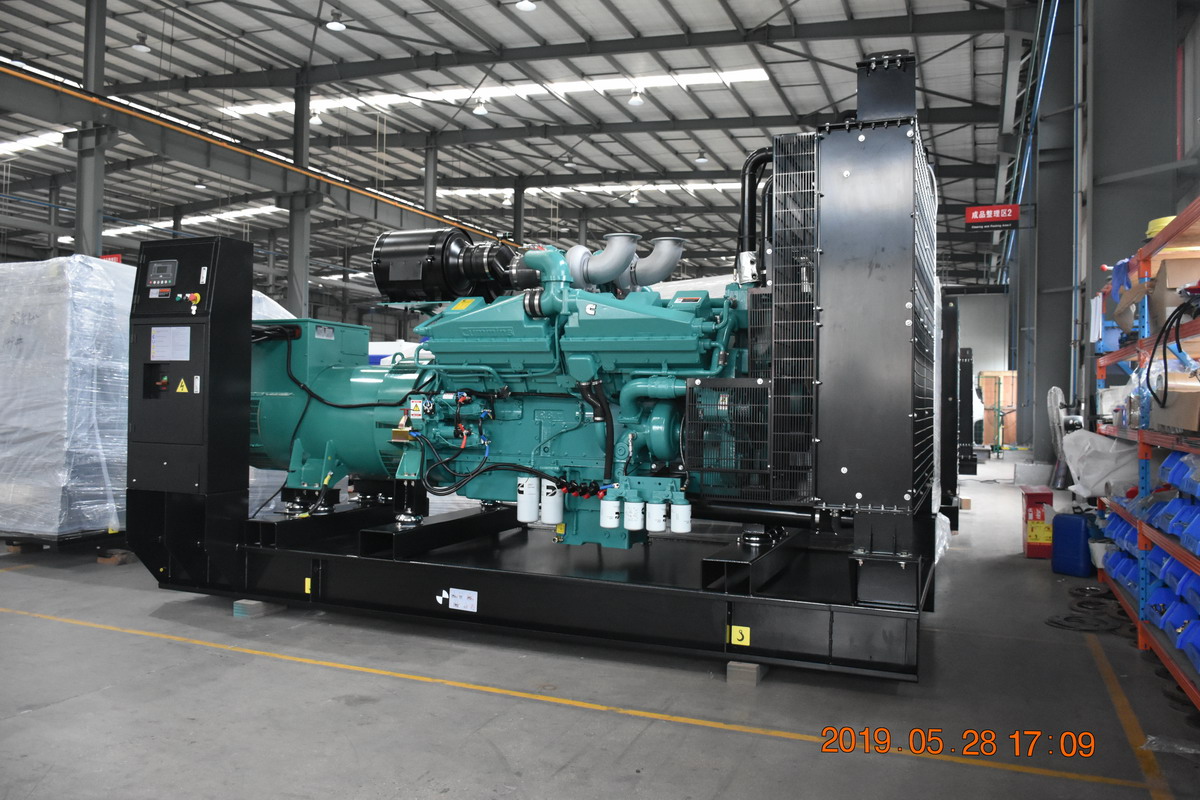

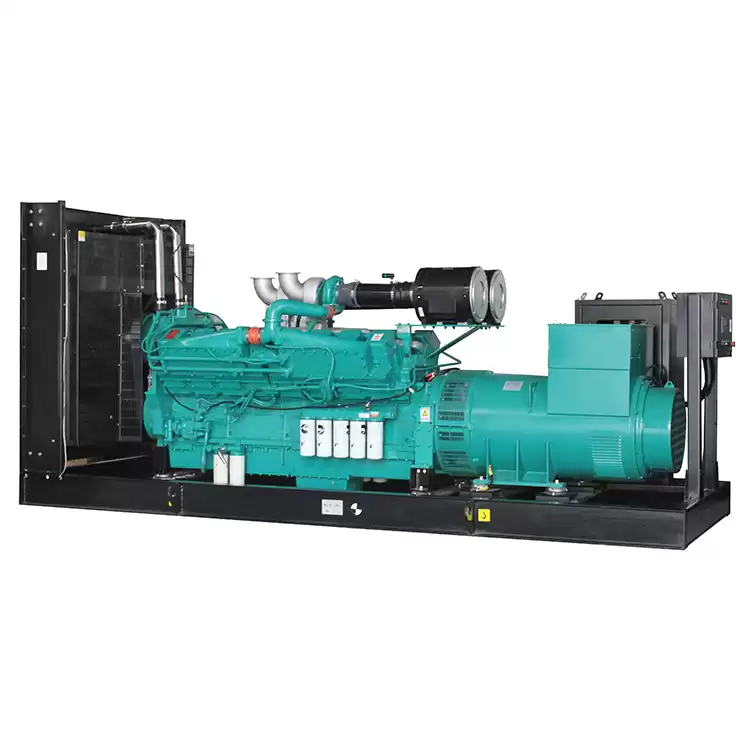

Cummins Engine Data
|
|
Engine Model
|
KTA50-G8
|
|
Number of Cylinders
|
12
|
|
Aspiration
|
Turbocharged
|
|
Bore×Stroke
|
159mm x159mm
|
|
Displacement
|
50.3L
|
|
Prime Power/Speed
|
1200KW / 1500rpm
|
|
Standby Power/Speed
|
1320KW / 1500rpm
|
|
Speed Governor
|
Electrical
|
|
Cooling System
|
Forced water cooling cycle
|
|
Alternator Data
|
|
Optional brands
|
Stamford/Leroy Somer/Marathon
|
|
Prime power
|
1000KW
|
|
Frequency/speed
|
50Hz/1500rpm
|
|
Exciter type
|
Brushless, Self-excited
|
|
Power factor
|
0.8
|
|
Voltage adjust range
|
≥5%
|
|
Voltage regulation NL-FL
|
≤±1%
|
|
Insulation Grade
|
H
|
|
Protection Grade
|
IP23
|
