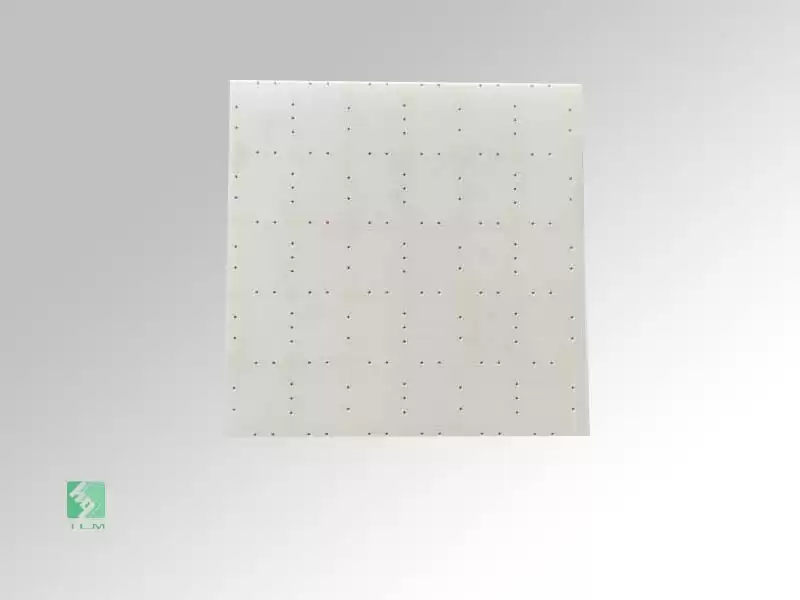

Laser Drill Aluminum Nitride Ceramic Substrate AlN Sheet
Product Description:
Aluminum nitride, which has high thermal conductivity, good insulation properties, high temperature resistance, in electronics, semiconductors and other fields has been widely used. However, ceramic materials have high hardness and brittleness, and difficult molding and processing, especially in the micro-hole processing process.As a non-contact processing tool, the laser has greater advantages than conventional processing technologies and plays an important role in the processing of ceramic substrates.
Our Service:
Please contact us for customization. We can also supply Aluminum Nitride(AlN) Ceramic with thermal conductivity up to 230W/mK.
Specification:
| Dimension(LxW) |
50*50mm |
| Thickness |
1.0mm |
| Thermal Conductivity |
170W/m.K |
| Dielectric Constant |
8-9(mHz) |
| Bulk Density |
3.3 g/cm³ |
| Surface Roughness |
Ra < 0.6 μm on both sides |
Company Adavatage:
Huaqing founded in 2004, with sum investment of 80Million RMB, registered capital 40Million RMB. Huaqing's AlN & Al2O3 ceramic products have high thermal-conductivity, low dielectric constant, good dissipation factor and excellent mechanical property compared with the other factories in the industry. AlN & Al2O3 ceramic are widely used in HBLED, opto-communication, IGBT, power devices, TEC and the other high-end applications.

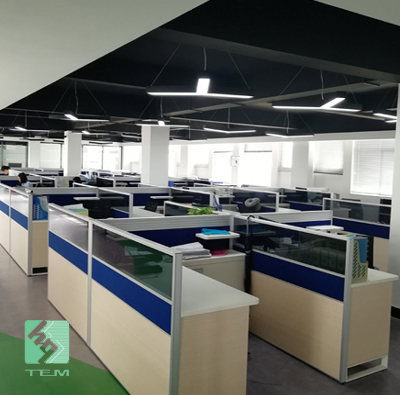

Workshop&Equipment:
Packaging & Delivery:
Deliver by UPS, DHL, Fedex etc.
