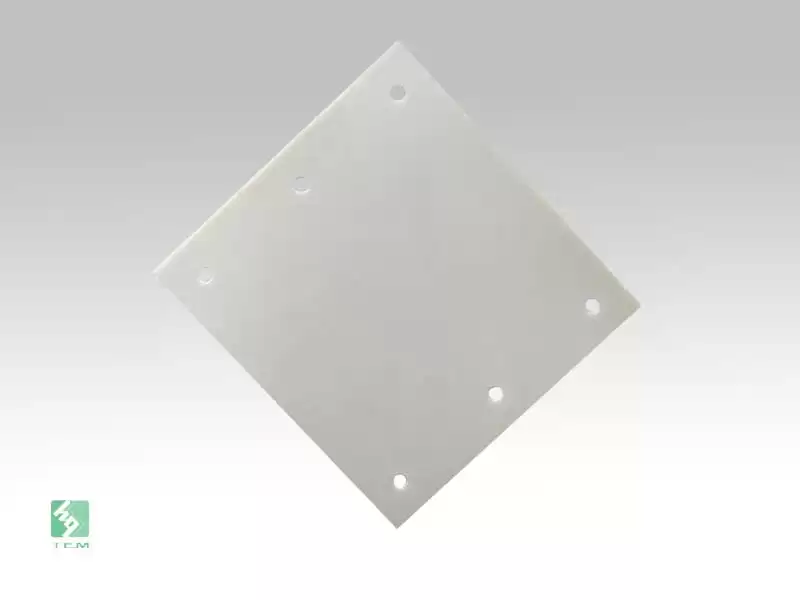

Laser Drilling Aluminum Nitride Ceramic Substrate Machining Sheet
Product Description:
Aluminum nitride (AlN) has excellent electrical insulation and high thermal conductivity, and is therefore considered a high-performance material for electronic material. Use engineering ceramics for power electronics devices to help manage thermal loads, improve efficiency, and increase reliability.
Our Aluminum Nitride substrates (AlN) are available in various sizes and thicknesses. Thanks to a large and live inventory, we can ship your part fast for you to start your project.
Our Service:
Please contact us for customization. We can also supply Aluminum Nitride(AlN) Ceramic with thermal conductivity up to 230W/mK.
| Dimension(LxW) |
50.8mmx50.8mm |
| Thickness |
0.38-1.5 mm |
| Thermal Conductivity |
170W/m.K |
| Dielectric Constant |
8-9(mHz) |
| Bulk Density |
3.3 g/cm³ |
| Surface Roughness |
Ra < 0.6 μm on both sides |
Company Advantage:
Huaqing founded in 2004, with sum investment of 80Million RMB, registered capital 40Million RMB. Huaqing's AlN & Al2O3 ceramic products have high thermal-conductivity, low dielectric constant, good dissipation factor and excellent mechanical property compared with the other factories in the industry. AlN & Al2O3 ceramic are widely used in HBLED, opto-communication, IGBT, power devices, TEC and the other high-end applications.
Workshop&Equipment:
Packaging & Delivery:
Deliver by UPS, DHL, Fedex etc.
